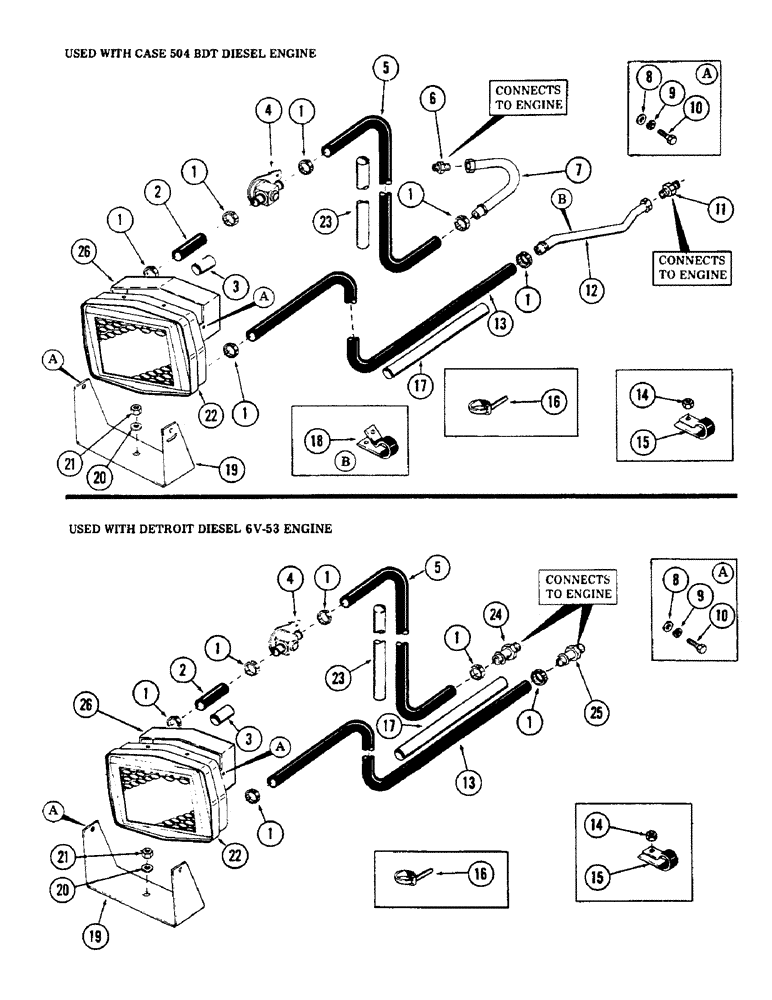

Запчасти Case 50 (308) - HEATER, HOSES AND ATTACHING PARTS, (USED ON UNITS WITH SN. 6280259 AND AFTER)(SN.6279926 & AFTER) (50) - CAB CLIMATE CONTROL

1

214-25

CLAMP

- hose

6шт.

2

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 4" long (4")

1шт.

3

S113728

CONDUIT - (Bulk) 1 piece 3" long (3")

1шт.

4

S223937

VALVE

- heater

1шт.

5

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 136" long (136")

1шт.

6

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) 7/8" - 14 male x 3/8" NPT male 37 degrees flared

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- coolant

1шт.

8

195-518

WASHER,1/4", SAE

- flat 1/4"

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Mounts heater to bracket and shroud to heater) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

11

216-457

ADAPTER - (5/8" tube) 7/8" - 14 male x 3/4" NPT male 37 degrees flared

1шт.

12

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- coolant

1шт.

13

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 121" long (121")

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC (Use with clamp to stud)

1шт.

15

R14668

CLAMP

- (Secures hose under floor plate and engine flywheel) (Use existing hardware to mount 3 clamps)

4шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

17

S113728

CONDUIT - (Bulk) 1 piece 22" long (22")

1шт.

18

NLS

NO LONGER SERVICED

1шт.

19

S513714

BRACKET - heater support

1шт.

20

195-104

WASHER,3/8"

- flat 7/16"

1шт.

21

131-206

NUT,3/8"-16

NUT - self locking 3/8"

1шт.

22

REF

INSTRUCTION

HEATER - (For breakdown, see figure 310)

1шт.

23

S113728

CONDUIT - (Bulk) 1 piece 18" long (18")

1шт.

24

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT - hose 5/8" ID hose x 1/2" NPT male

1шт.

25

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

INSERT - hose 5/8" ID hose x 3/8" NPT male

1шт.

26

S237006

SHROUD - heater

1шт.
