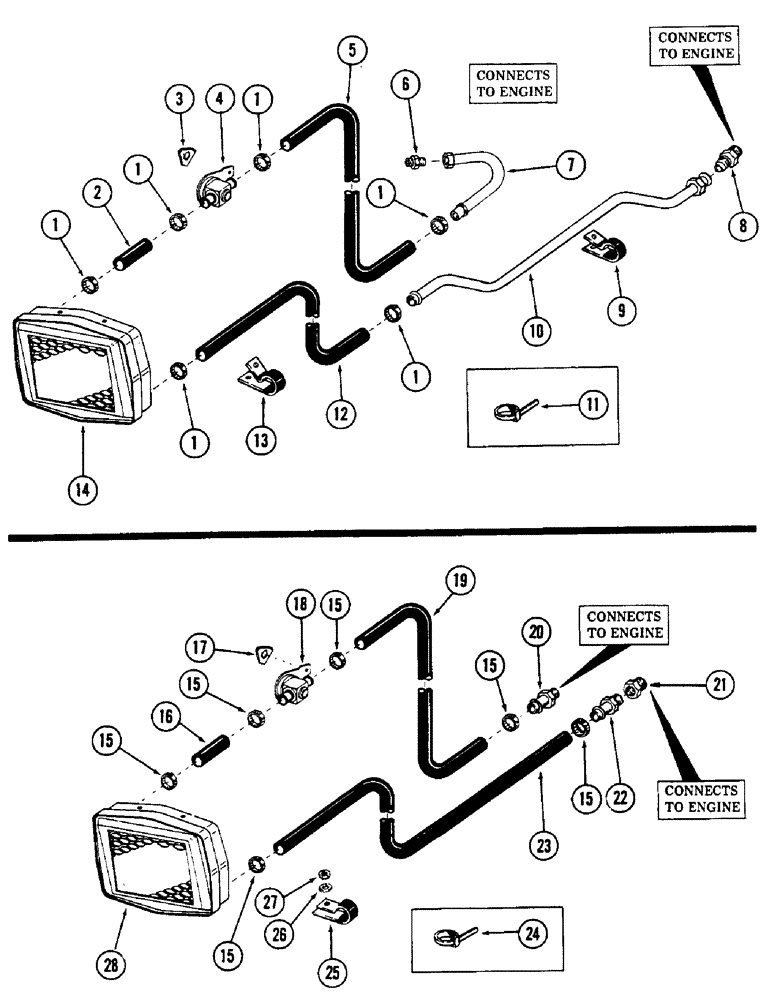

Запчасти Case 50 (306) - HEATER AND HOSES, (USED WITH CASE 504BDT DIESEL ENGINE (50) - CAB CLIMATE CONTROL

1

214-25

CLAMP

6шт.

2

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 4" long (4")

1шт.

3

S48576

NUT

- speed (Secures control, Serial Range: cable-valve)

1шт.

4

S223937

VALVE

- heater

1шт.

5

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 130" long (130")

1шт.

6

S101313

ADAPTER

- (5/8" tube) 7/8" - 14 male x 3/8" NPT male 37 degrees flared

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- coolant

1шт.

8

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (5/8" tube) 7/8" - 14 male x 3/4" - 14 male 37 degrees flared

1шт.

9

49885

CLAMP

1шт.

10

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- coolant

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

12

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 130" long (130")

1шт.

13

R14668

CLAMP

2шт.

195-525

WASHER,3/8", SAE

- flat 3/8"

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

1шт.

14

REF

INSTRUCTION

HEATER - (For breakdown, see figure 310)

1шт.

15

214-25

CLAMP

- hose, HEATER (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

6шт.

16

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 3" long (3"), HEATER (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

17

S48576

NUT

- speed (Secures control cable to valve), HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

18

S223937

VALVE

- HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

19

S49608

HOSE

HEATER - low pressure (Bulk) 1 piece 5/8" ID x 170" long (170"), (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

20

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT - hose 5/8" OD hose x 1/2" - 14 male, HEATER (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

21

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - (5/8" tube) 7/8" - 14 male x 3/4" - 14 NPT male, HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

22

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- coolant, HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

23

S49608

HOSE

- low pressure (Bulk) 1 piece 5/8" ID x 170" long (170"), HEATER (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

25

R14668

CLAMP

HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

2шт.

26

195-103

WASHER,5/16"

- flat 3/8", HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

27

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC, HEATER AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.

28

REF

INSTRUCTION

HEATER - (For breakdown, see figure 310), AND HOSES (USED WITH DETROIT DIESEL 6V-53 ENGINE) (ON UNITS SERIAL NUMBER 6279126 THRU 6280258)

1шт.
