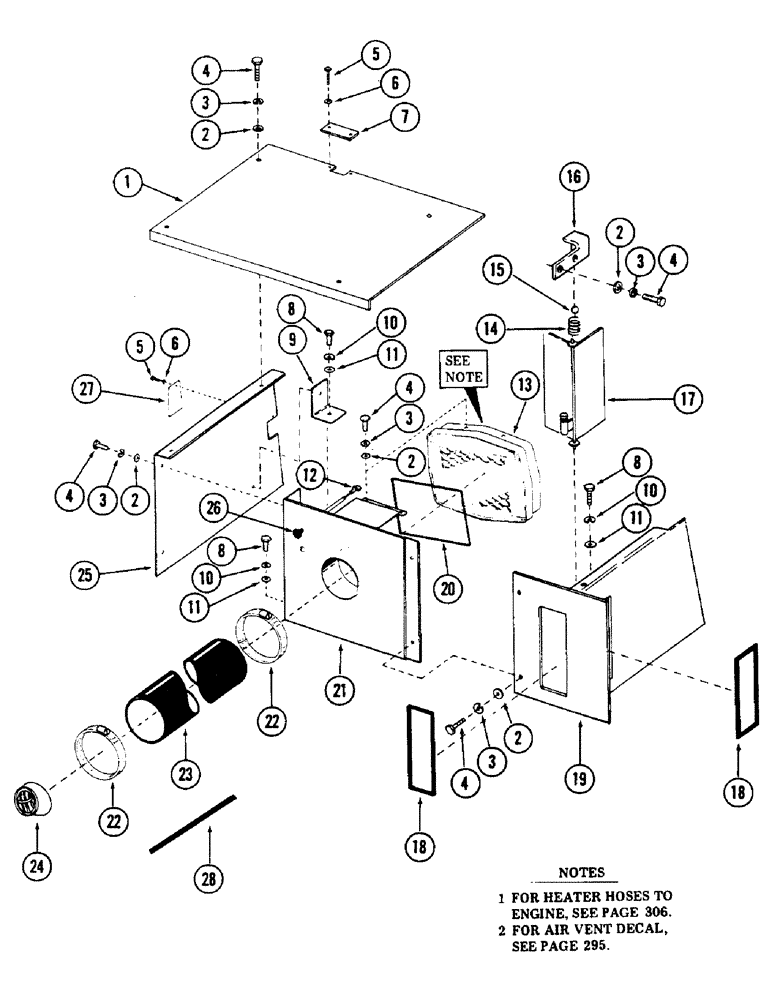

Запчасти Case 50 (304) - HEATER AND ATTACHING PARTS, (USED ON UNITS W/ SN. 6279926-6280258)(SN. 6279926 & AFTER) (50) - CAB CLIMATE CONTROL

1

S507916

COVER - (Top of heater compartments)

1шт.

2

195-518

WASHER,1/4", SAE

- flat 1/4"

1шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW - self tapping no. 8 NC x 1/4"

4шт.

6

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock no. 8 (Internal tooth)

4шт.

7

S97503

COVER

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

9

S97031

BRACKET - (Mounts, Serial Range: should-floor)

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

195-33

WASHER,1/2"

- flat 1/2"

1шт.

12

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL (Replaces S70973)

1шт.

13

REF

INSTRUCTION

HEATER - hot water (For breakdown, see figure 310)

1шт.

14

S16234

SPRING

1шт.

15

A61683

BUTTON

BALL

1шт.

16

S232244

BRACKET

ANGLE

1шт.

17

S511391

DOOR - vent

1шт.

18

S76711

SEAL

MOLDING - rubber (Bulk) 2 pieces 54" long (108")

1шт.

19

S610782

SHROUD

1шт.

20

S76711

SEAL

MOLDING - rubber (Bulk) 1 piece 36" long (36")

1шт.

21

605515

SHROUD

1шт.

22

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

2шт.

23

S97045

HOSE

- low pressure (Bulk) 1 piece 5" ID x 24" long (24")

1шт.

24

S223939

LOUVER

1шт.

25

S511221

SHROUD

1шт.

26

S223938

CABLE - temperature control (Connects to item 4 on figure 306)

1шт.

27

S97502

COVER

1шт.

28

S73382

MOLDING - rubber (Bulk) 1 piece 14" long (Around hole in floor plate) (14")

1шт.
