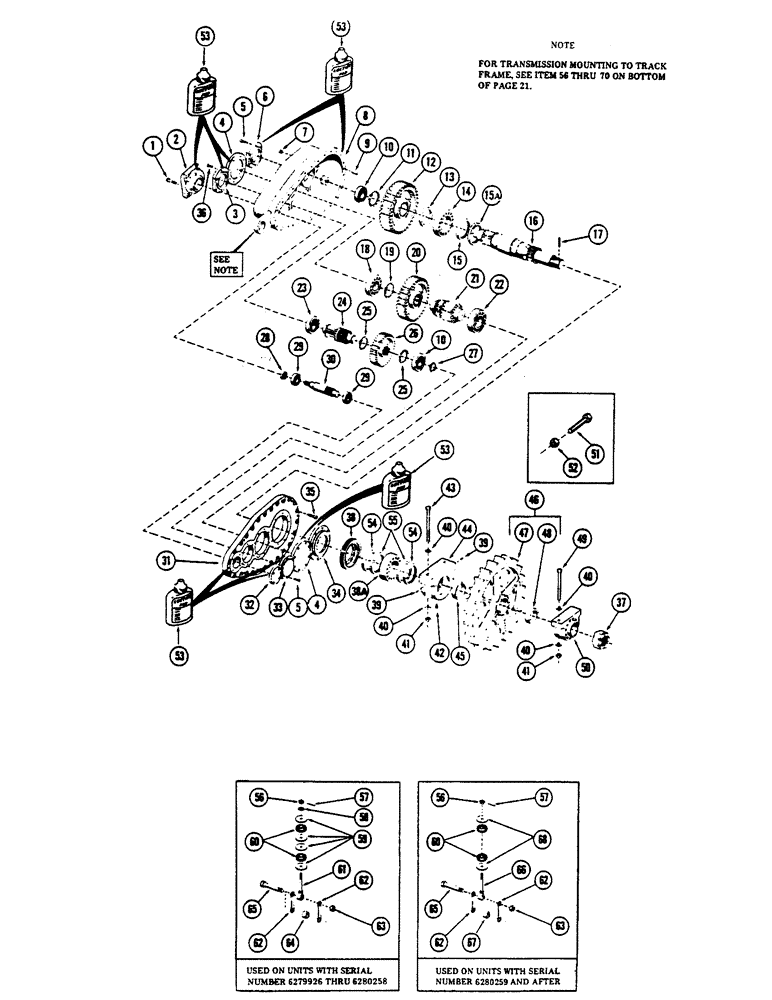

Запчасти Case 50 (030) - FINAL DRIVE TRANSMISSION, (S/N 6279926 AND AFTER) (48) - TRACKS & TRACK SUSPENSION

46

S507945

DRIVEN SPROCKET

SPROCKET ASSEMBLY, Includes: Ref. 47 and 48

1шт.

47

NSS

NOT SOLD SEPARAT

SPROCKET - (Order S507945)

1шт.

48

S95493

SPACER

1шт.

49

26-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

CPSW - 3/4" NC x 8" gr 8

2шт.

50

S507600

BEARING ASSY

BLOCK - pillow

1шт.

MEASURES ABOUT 6 3/4" CENTERS AND 50A MEASURE ABOUT 8 1/8" CENTERS.

1шт.

(BLOCK PILLOW) USED ON SERIAL NUMBER 6280345 AND AFTER, PART IS S240316

1шт.

51

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

BOLT - tap 3/4" NC x 3" gr 5

2шт.

52

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam 3/4" NC (Replaces 25-1412)

2шт.

53

B17423

LOCTITE

- 10 CC bottle (Red) (Used in place of gaskets - substitutes must not be used)

1шт.

54

S235141

SEAL

- dirt

2шт.

55

S235140

SEAL

- grease (With spring) (If replacement is required order S235141 dirt seal illustrated as ref 54 also)

2шт.

56

25-2416

SLOTTED NUT,1"-8, G5

NUT - castle 1" NC (Replaces 129-2416)

1шт.

57

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

58

S89556

WASHER

- hardened flat 1"

1шт.

59

S89925

WASHER

- flat

4шт.

60

S89926

SPRING

- elastomer

2шт.

61

S233260

SHACKLE

1шт.

62

S223205

LINK

2шт.

63

131-82

NUT,1"-8

NUT - self locking 1" - 8 NC

2шт.

64

S109950

SPACER

1шт.

65

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

(Replaces 13-1672) Hex, 1"-8 x 4 1/2", G5

2шт.

66

S237711

SHACKLE

1шт.

67

S115639

SPACER

1шт.

68

S89925

WASHER

- flat

2шт.

69

S115639

SPACER

- (Mounts transmission) (Not illustrated)

1шт.

70

S116289

SPACER

- (Mounts transmission) (Not illustrated)

1шт.
