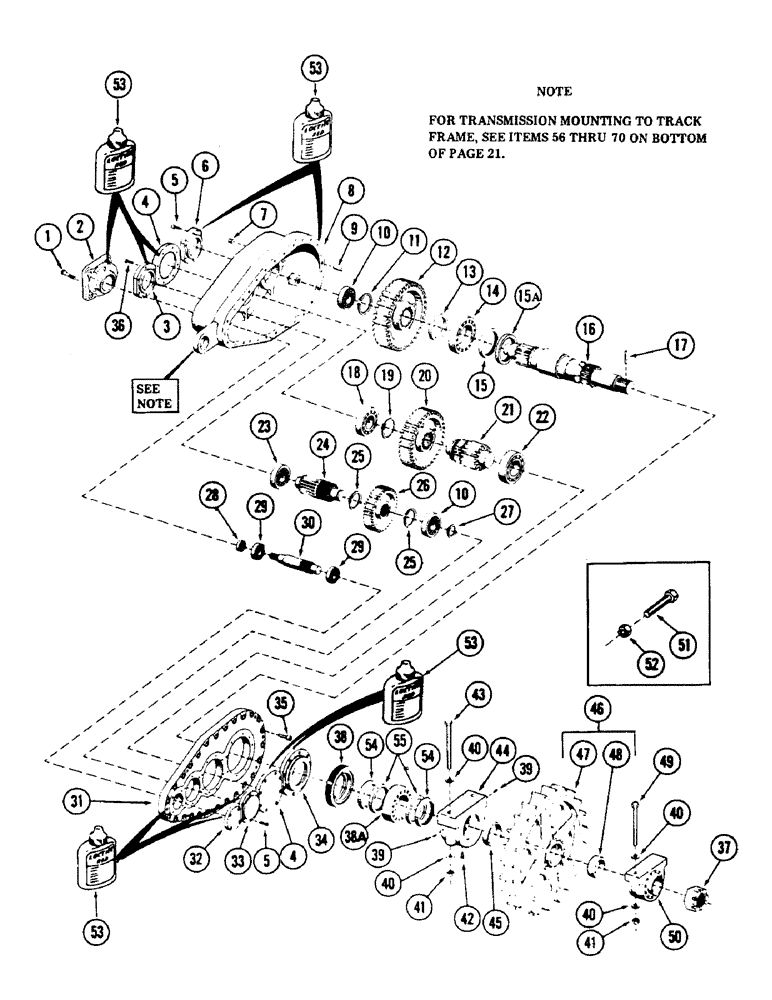

Запчасти Case 50 (028) - FINAL DRIVE TRANSMISSION, (S/N 6279926 AND AFTER) (48) - TRACKS & TRACK SUSPENSION

S611014

TRANSMISSION - final drive, Includes: Ref. 1 - 37

2шт.

When replacing transmission assembly or transmission housing on units with serial 6279926 thru 6280258. Spacers (ref 69, part no. S115639) and (ref 70, part no. S116289) which are required for mounting must also be ordered.

1шт.

1

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

CPSW - 1/2" NC x 1-1/4" gr 8 (Hexagon socket head)

3шт.

2

S510345

ADAPTER

- brake

1шт.

3

S510347

COVER

- bearing

1шт.

4

S507593

COVER

- bearing

2шт.

5

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW - 3/8" NC x 1" gr 8 (Hexagon socket head)

47шт.

6

S507599

COVER

- bearing

1шт.

7

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe 3/4" NPT male (Drain and fill)

4шт.

8

S953541

HOUSING

- transmission

1шт.

When replacing transmission assembly or transmission housing on units with serial 6279926 thru 6280258. Spacers (ref 69, part no. S115639) and (ref 70, part no. S116289) which are required for mounting must also be ordered.

1шт.

9

S65037

DOWEL

PIN - dowel 5/8" diameter

2шт.

10

D40192

BALL BEARING

BEARING

2шт.

11

S96948

SNAP RING,#375, Ext

RING - retaining 3-7/16"

1шт.

12

S605267

GEAR

- output

1шт.

13

S95494

SPACER

1шт.

14

S96220

BALL BEARING,100 mm ID x 180 mm OD x 34 mm

BEARING

1шт.

15

S96168

SEAL

- oil

1шт.

15a

S235141

SEAL

- dirt

1шт.

16

S605277

SHAFT

- output

1шт.

17

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

18

S96216

BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm

BEARING

1шт.

19

S96949

SNAP RING,#387, Ext

RING - retaining 3-9/16"

1шт.

20

S605269

GEAR

- intermediate output

1шт.

21

S605268

SHAFT

- intermediate output

1шт.

22

S96217

BEARING, ROLLER, CYL,70mm ID x 150mm OD x 35mm

BEARING

1шт.

23

S96215

BEARING, ROLLER, CYL,50mm ID x 110mm OD x 27mm

BEARING

1шт.

24

S605270

SHAFT

- intermediate output

1шт.

25

F11296

SNAP RING,#300, Ext

RING - retaining 2-3/4"

2шт.

26

S605271

GEAR

- input

1шт.

27

100-11196

SNAP RING,#196, Ext

RING - retaining 1-13/16", Auger Bearing

1шт.

28

S96159

SEAL

- input shaft

1шт.

29

S96214

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm

BEARING

2шт.

30

S605276

SHAFT

- input

1шт.

31

S953542

COVER

- transmission

1шт.

32

S507597

COVER

- bearing

1шт.

33

S507595

COVER

- bearing

1шт.

34

S512872

COVER

- bearing (Replaces S507591 on units below serial number 6280131) (If cover is replaced order S235141 dirt seal illustrated as ref 54 in addition)

1шт.

35

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

CPSW - 1/2" NC x 1-3/4" gr 8 (Hexagon socket head)

26шт.

36

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW - 3/8" NC x 1" gr 8 (Hexagon socket head)

6шт.

37

25-1340

SLOTTED NUT,2 1/2"-12, G5

NUT - castle 2-1/2" NF

1шт.

38

S97173

RETAINER

- seal

1шт.

38a

S97820

SPHERICAL BEARING,100mm ID x 180mm OD x 46mm W

BEARING - spherical

1шт.

39

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW - set 1/4" NC x 7/16"

2шт.

40

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- hardened flat 3/4"

8шт.

41

131-450

NUT,3/4"-10

NUT - self locking 3/4" - 10 NC

4шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" NPT straight

1шт.

43

26-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

CPSW - 3/4" NC x 9" gr 8

2шт.

44

S507983

HOUSING

1шт.

45

S95495

SPACER

1шт.
