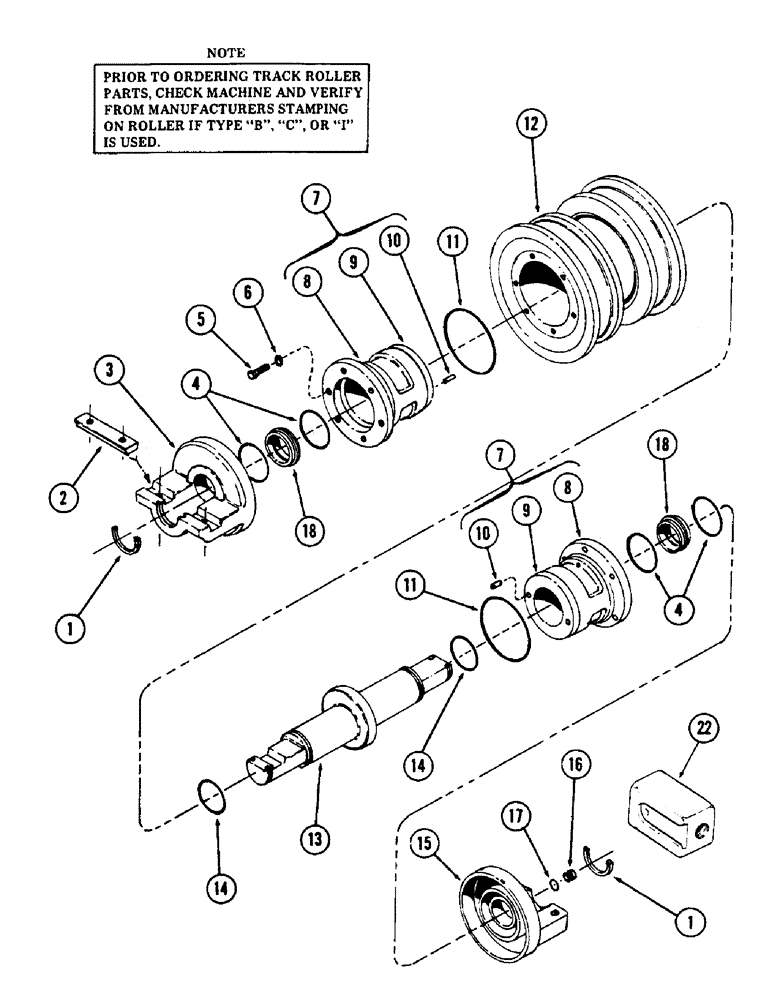

Запчасти Case 50 (020) - DOUBLE FLANGE TRACK ROLLER, TYPE B, (S/N 6279926 AND AFTER) (48) - TRACKS & TRACK SUSPENSION

S507721

ROLLER

- double flange track, Includes: Ref. 1 - 18

4шт.

1

S101385

RING

2шт.

2

S116135

LOCK

1шт.

3

S101379

COLLAR

- inner

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

4шт.

Part of seal kit, P/N S116137

1шт.

Part of seal kit, P/N S238134

1шт.

Part of seal kit, P/N S209139

1шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

6

S65290

WASHER - lock 3/8"

12шт.

7

S101383

BUSHING

ASSEMBLY, Includes: Ref. 8 - 10

2шт.

8

S90509

BUSHING

CASE - bushing

1шт.

9

S97897

BUSHING

1шт.

10

S101386

PIN

2шт.

11

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

Part of seal kit, P/N S116137

1шт.

Part of seal kit, P/N S238134

1шт.

12

S238133

RIM

1шт.

13

S101384

SHAFT

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, Serial Range: collar-shaft

2шт.

Part of seal kit, P/N S116137

1шт.

Part of seal kit, P/N S238134

1шт.

15

S101382

COLLAR - outer

1шт.

16

S116136

PLUG

- 3/4" diameter

1шт.

17

S116153

GASKET

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

4шт.

Part of seal kit, P/N S238134

1шт.

Part of seal kit, P/N S209139

1шт.

19

S209139

SEAL

KIT - seal, Includes: Ref. 4 and 18)

1шт.

20

S116137

KIT - seal, Includes: Ref. 4, 11 and 14)

1шт.

21

S238134

KIT - seal, Includes: Ref. 4, 11, 14 and 18)

1шт.

22

S116138

NOZZLE - (For filling roller)

1шт.
