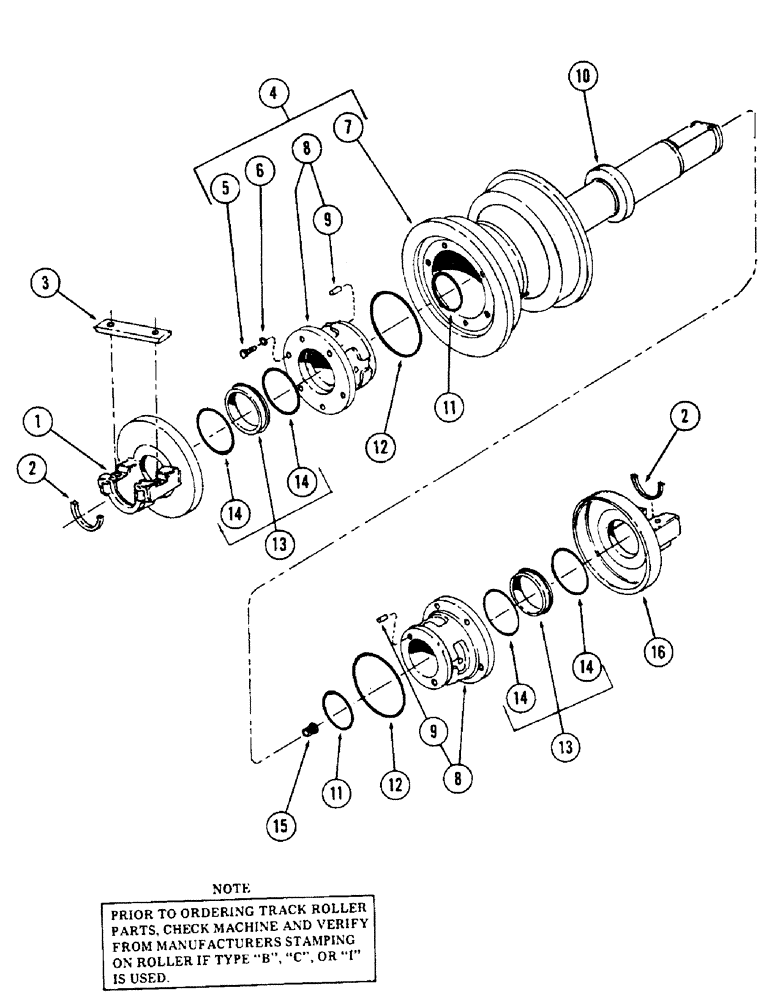

Запчасти Case 50 (014) - SINGLE FLANGE TRACK ROLLER, TYPE B, (S/N 6279926 AND AFTER) (48) - TRACKS & TRACK SUSPENSION

S505093

ROLLER

- single flange track, Includes: Ref. 1 - 16

18шт.

1

S89309

COLLAR

- inner

1шт.

2

S89317

RING, LOCKING

RING - snap, Serial Range: (Shaft-collars)

1шт.

3

S89310

LOCK

1шт.

4

S89307

RIM

ROLLER ASSEMBLY, Includes: Ref. 5 - 9

1шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

6

192-161

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces 192-21) 3/8"

12шт.

7

S89307

RIM

ASSEMBLY

2шт.

8

S89315

BUSHING

ASSEMBLY, Includes: Ref. 9

2шт.

9

S89318

PIN

2шт.

10

S89316

SHAFT

1шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD (Collar to shaft)

2шт.

12

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD (Bushing seal)

2шт.

13

S90508

SEAL

GROUP, Includes: Ref. 14

2шт.

14

S97896

RING

"O" RING

4шт.

15

S87854

PLUG

- pipe 3/4" - 16 male

1шт.

16

S89314

COLLAR

- outer

1шт.
