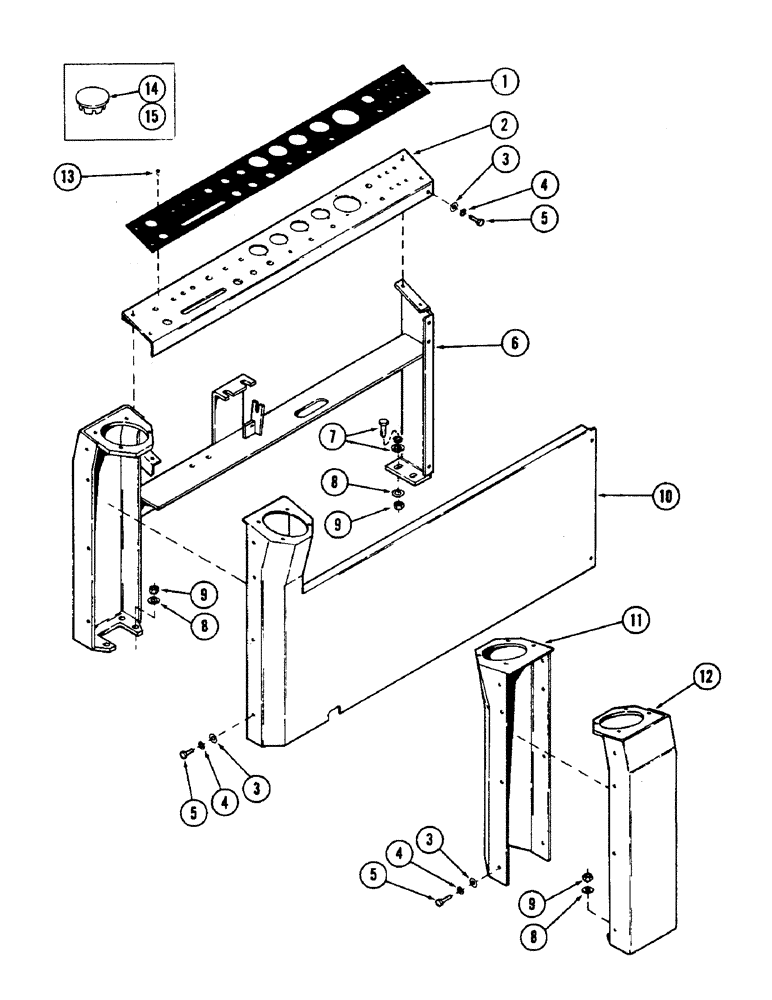

Запчасти Case 50 (076) - LEFT& RIGHT SUPPORTS FOR HAND CONTROL, VALVES & INSTRUMENT FRAME, (USED ON UNITS W/ SN. 6279926 - (39) - FRAMES AND BALLASTING

1

S610676

DECAL

- instrument panel

1шт.

2

S610602

PANEL - instrument

1шт.

3

195-101

WASHER,3/16"

- flat 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S610997

SUPPORT AND FRAME - right control

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 17/32"

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

195-33

WASHER,1/2"

- flat 1/2"

10шт.

9

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

10шт.

10

S610995

COVER - right control panel

1шт.

11

S610994

COVER - left control panel

1шт.

12

S511388

SUPPORT - left control

1шт.

13

95-22

WASHER,1 3/8" x 3 1/4" x .18"

SCREW - self tapping no. 6 NF x 1/4"

16шт.

14

S109944

PLUG

- hole 5/8" diameter (Used to plug hole in instrument panel when emergency shut-off or cold start is not used)

2шт.

15

S109945

PLUG

- hole 1/2" diameter (Used to plug hole in instrument panel when work lights or fast hoist is not used)

2шт.
