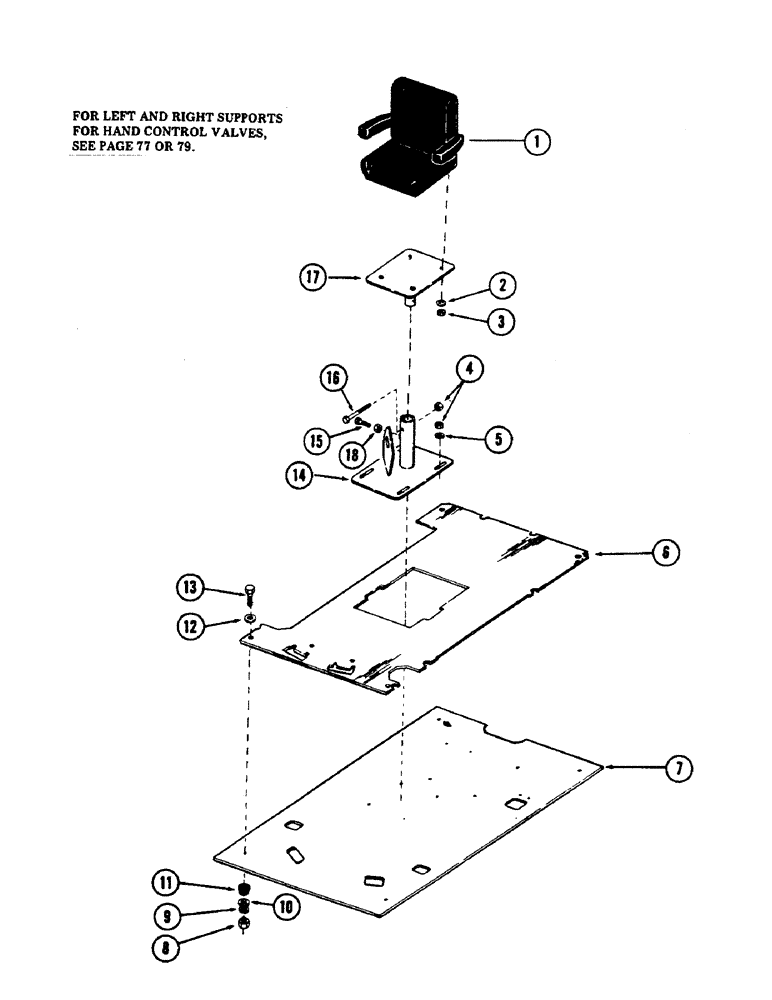

Запчасти Case 50 (072) - TURNTABLE ATTACHING PARTS INSIDE OF OPERATORS CAB, (USED ON UNITS W/ SN. 6280259 & AFTER) (39) - FRAMES AND BALLASTING

1

REF

INSTRUCTION

SEAT ASSEMBLY - (For breakdown, see figure 74)

1шт.

2

195-103

WASHER,5/16"

- flat 3/8"

4шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

NUT, self locking 5/16" NC

4шт.

4

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

5шт.

5

S95569

WASHER

- flat 1/2"

4шт.

6

S615051

FLOOR MAT

MAT - floor (Supersedes S612923)

1шт.

7

S956073

PLATE - floor (Supersedes S955637)

1шт.

8

131-450

NUT,3/4"-10

NUT - self locking 3/4" NC

4шт.

9

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat 3/4"

4шт.

10

S114915

WASHER

- flat 3/4"

3шт.

11

S112578

MOUNTING PARTS

MOUNT - center bonded

4шт.

12

S84752

WASHER

- flat 3/4"

4шт.

13

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

(Replaces 13-1280) Hex, 3/4"-10 x 5", G5

4шт.

14

S612856

BRACKET - seat mounting (Lower)

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

17

S513120

BRACKET - seat mounting (Upper)

1шт.
