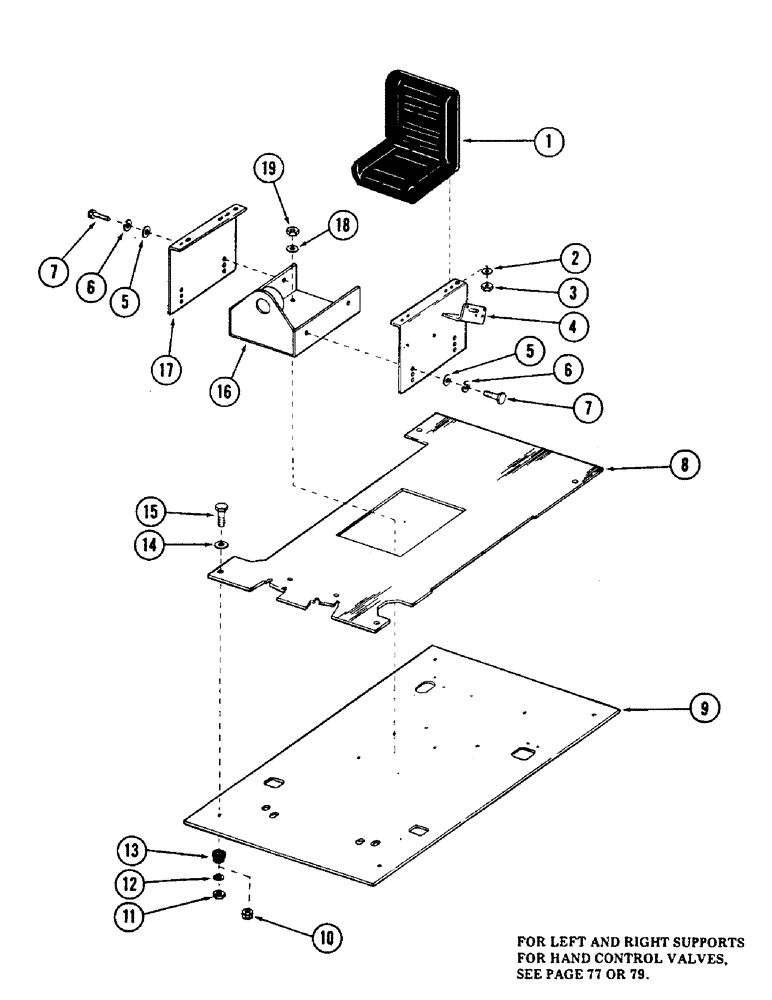

Запчасти Case 50 (070) - TURNTABLE ATTACHING PARTS INSIDE OF OPERATORS CAB, (USED ON UNITS W/ SN. 6279926 - 6280258) (39) - FRAMES AND BALLASTING

1

S220432

NO LONGER SERVICED

SEAT

1шт.

2

195-103

WASHER,5/16"

- flat 3/8"

4шт.

3

131-205

LOCK NUT,5/16"-18

NUT - self locking 5/16" NC

4шт.

4

S511359

ANGLE - seat mounting (Left hand)

1шт.

5

195-33

WASHER,1/2"

- flat 1/2"

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

8

S610677

MAT - floor

1шт.

9

S610855

PLATE - floor

1шт.

10

S226347

NUT ASSEMBLY

1шт.

11

131-450

NUT,3/4"-10

NUT - self locking 3/4" NC

3шт.

12

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat 3/4"

3шт.

13

S93392

MOUNTING PARTS

MOUNT - center bonded

4шт.

14

S84752

WASHER

- flat 3/4"

4шт.

15

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

CPSW - 3/4" NC x 4-3/4" gr 5 (Replaces 13-1276)

4шт.

16

S507994

CHANNEL - seat mounting

1шт.

17

S511358

ANGLE - seat mounting (Right hand)

1шт.

18

S95569

WASHER

- flat 1/2"

4шт.

19

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

4шт.
