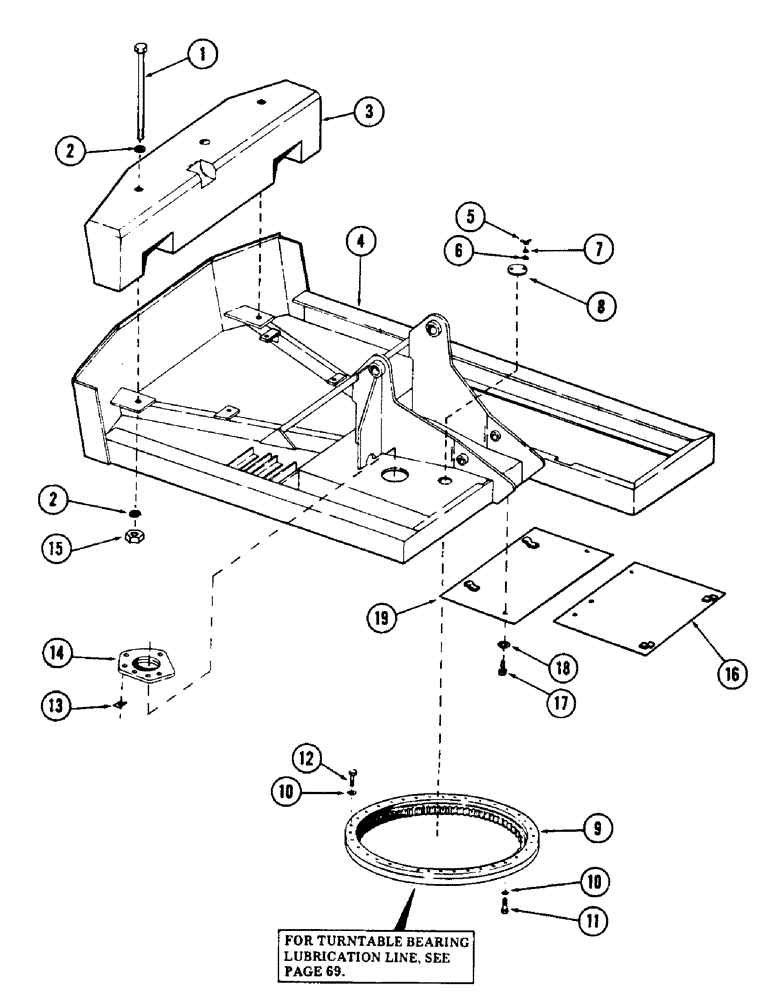

Запчасти Case 50 (064) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS, (USED ON UNITS W/ SN. 6279926-6280344) (39) - FRAMES AND BALLASTING

1

13-20272

CPSW - 1-1/4" NC x 17" gr 5 Hex, 1 1/4-7 x 17", G5

2шт.

2

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

- flat 1-5/16"

4шт.

3

S603034

COUNTERWEIGHT

1шт.

4

S606294

TURNTABLE - machined

1шт.

5

S77941

NUT - wing 3/8" NC

2шт.

6

195-103

WASHER,5/16"

- flat 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

S76664

COVER

1шт.

9

S508670

BEARING ASSY

BEARING - turntable

1шт.

10

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat 3/4" (Hardened)

69шт.

11

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

36шт.

12

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

36шт.

13

S77916

SHIM,.005" Thk

(Reducer plate to turntable) .005" Thk

1шт.

S77917

SHIM,.010" Thk

(Reducer plate to turntable) .010" Thk

1шт.

S77918

SHIM,.015" Thk

- .015" (Reducer plate to turntable)

1шт.

S77919

SHIM,.030" Thk

(Reducer plate to turntable) .030" Thk

1шт.

S77920

SHIM,.060" Thk

(Reducer plate to turntable) .060" Thk

1шт.

S84889

SHIM,.003" Thk

(Reducer plate to turntable) .003" Thk

1шт.

S84890

SHIM,.007" Thk

(Reducer plate to turntable) .007" Thk

1шт.

14

S506965

SUPPORT

PLATE - swing reducer mounting, Serial Range: (Welds-turntable)

1шт.

15

131-454

LOCK NUT,1 1/4"-7

NUT - self locking 1-1/4" NC

2шт.

16

S606664

GUARD

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

5шт.

19

S508344

GUARD

1шт.

20

S108048

LUG

- lift (Optional) (For crawler rear) (Not illustrated)

2шт.

21

240-13

SHACKLE

- (For crawler front on Mast ears) (Not Illustrated)

2шт.

22

S231364

PAINT - lift lug installation

1шт.
