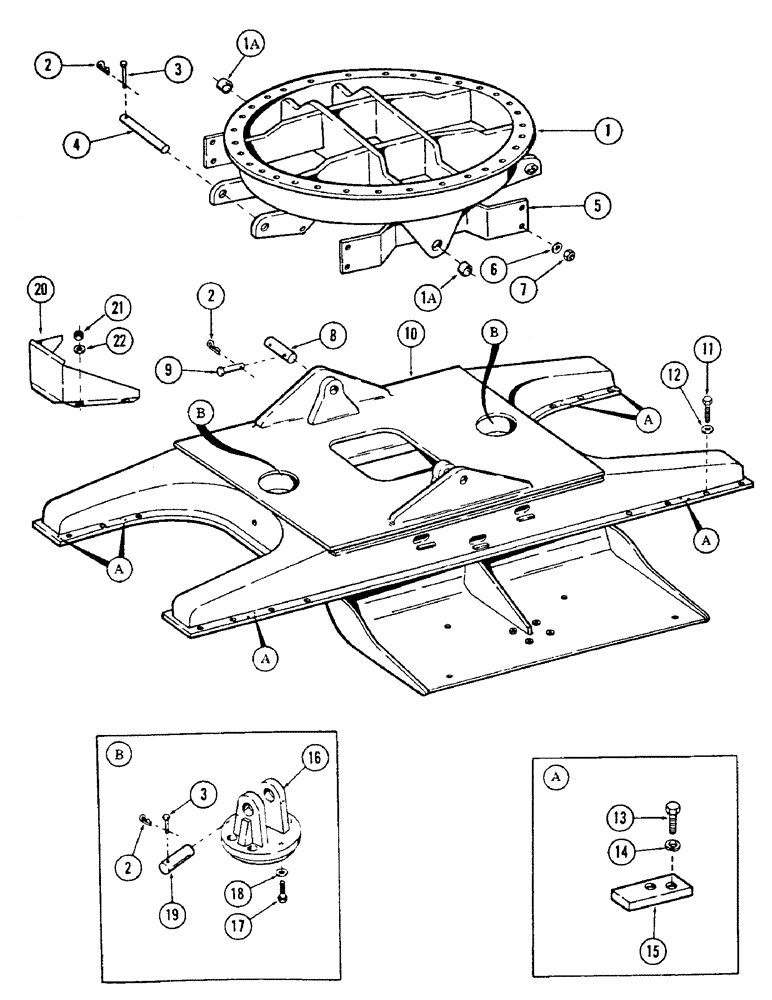

Запчасти Case 50 (008) - OPTIONAL TURNTABLE LEVELER, PINS & HARDWARE, (USED ON UNITS W/ SN. 6280345 & AFTER) (39) - FRAMES AND BALLASTING

1

S610362

LEVEL

ER ASSY - upper, Includes: Ref. 1A

1шт.

1a

S202192

BUSHING

- leveler

2шт.

2

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

6шт.

3

S61973

AXLE PIN

PIN - clevis 1/2" x 3.766" grip length

4шт.

4

S78554

PIN

- leveler cylinder to upper leveler

52шт.

5

S611713

COVER

- mounts to upper leveler

2шт.

6

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat 13/32"

8шт.

7

131-206

NUT,3/8"-16

NUT - lock 3/8" NC hex

8шт.

8

S113536

PIN

- upper leveler to lower leveler

2шт.

9

S61976

CLEVIS PIN

PIN - clevis 5/8" x 4.516" grip length

2шт.

10

S955132

LEVELER ASSY - lower

1шт.

11

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- 7/8" x 3" NC hex (Grade 8) (To track frame)

32шт.

12

S92341

WASHER

- hard 7/8"

32шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

15

S110499

BAR - stop

6шт.

16

S513715

BRACKET

- leveler cylinder mounting

2шт.

17

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

(Supersedes 113-481) Hex, 1/2"-13 x 1 1/4", G8, Full Thd

6шт.

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- 1/2" x 2" NC hex (Grade 8) (Supersedes 113-481)

2шт.

18

S95569

WASHER

- hardened 1/2"

8шт.

19

S108638

PIN

- leveler cylinder to lower leveler

2шт.

20

S614046

GUARD - dirt, Start Serial: 6280350

2шт.

21

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

8шт.

22

S95569

WASHER

- hardened 1/2"

8шт.
