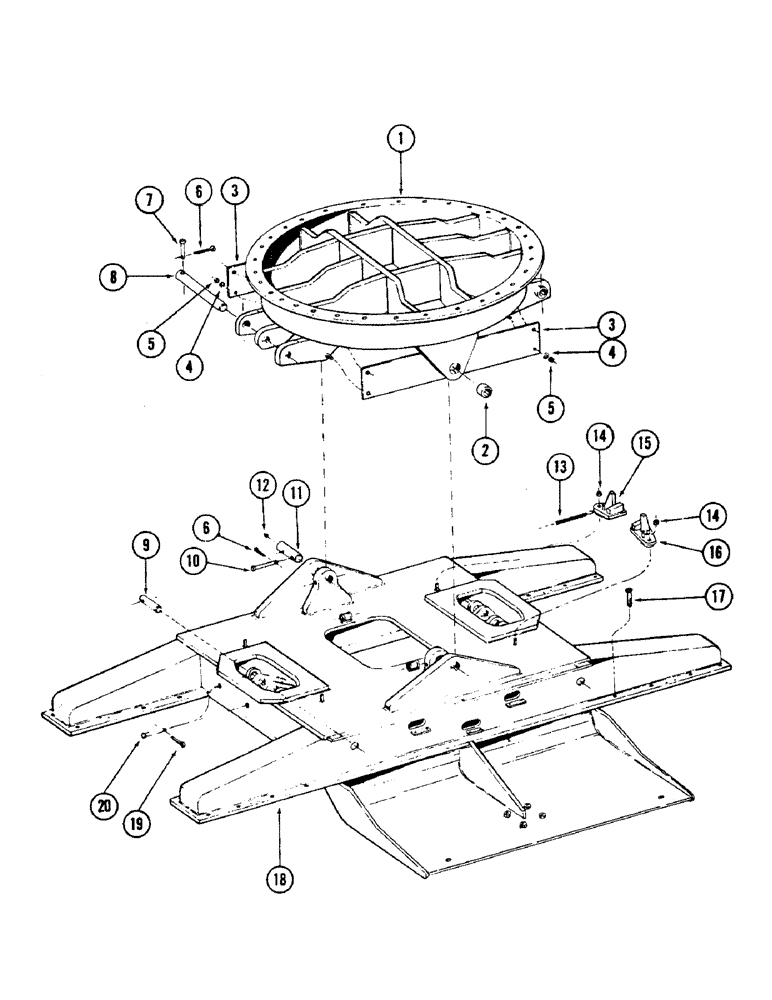

Запчасти Case 50 (006) - OPTIONAL TURNTABLE LEVELER, PINS & HARDWARE, (USED ON UNITS W/ SN. 6279926-6280344) (39) - FRAMES AND BALLASTING

1

S603820

LEVELER - upper, Includes: Ref. 2

1шт.

2

S202192

BUSHING

2шт.

3

S214790

COVER - motor (Rear side)

2шт.

4

195-103

WASHER,5/16"

- flat 3/8"

8шт.

5

131-206

NUT,3/8"-16

NUT - self locking 3/8" NC

8шт.

6

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

7

S61973

AXLE PIN

PIN - clevis 1/2" x 3.766" grip length

2шт.

8

S85708

PIN

- (Cylinder to leveler ring)

2шт.

9

S87086

PIN

4шт.

10

S61976

CLEVIS PIN

PIN - clevis 5/8" x 4.516" grip length

2шт.

11

REF

INSTRUCTION

PIN - (Leveler ring to base) , Includes: Ref. 12

2шт.

Prior to ordering replacement pin, measure pin length. If pin length is 8.75", order S85739. If pin length is 9.31", order S113536.

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube 1/8" NPT (Straight)

2шт.

13

S64335

SPRING - stop (Used on earlier units only)

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC (Used on earlier units only)

4шт.

15

S231249

STOP - leveler ring (Used on earlier units only)

2шт.

16

S231248

STOP - leveler ring (Used on earlier units only)

2шт.

17

26-1440

CAPSCREW,Hex, 7/8" - 9 x 2 1/2", Gr 8

CPSW - 7/8" NC x 2-1/2" gr 8

32шт.

18

S954513

BASE - leveler

1шт.

19

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

20

S61972

PIN

4шт.
