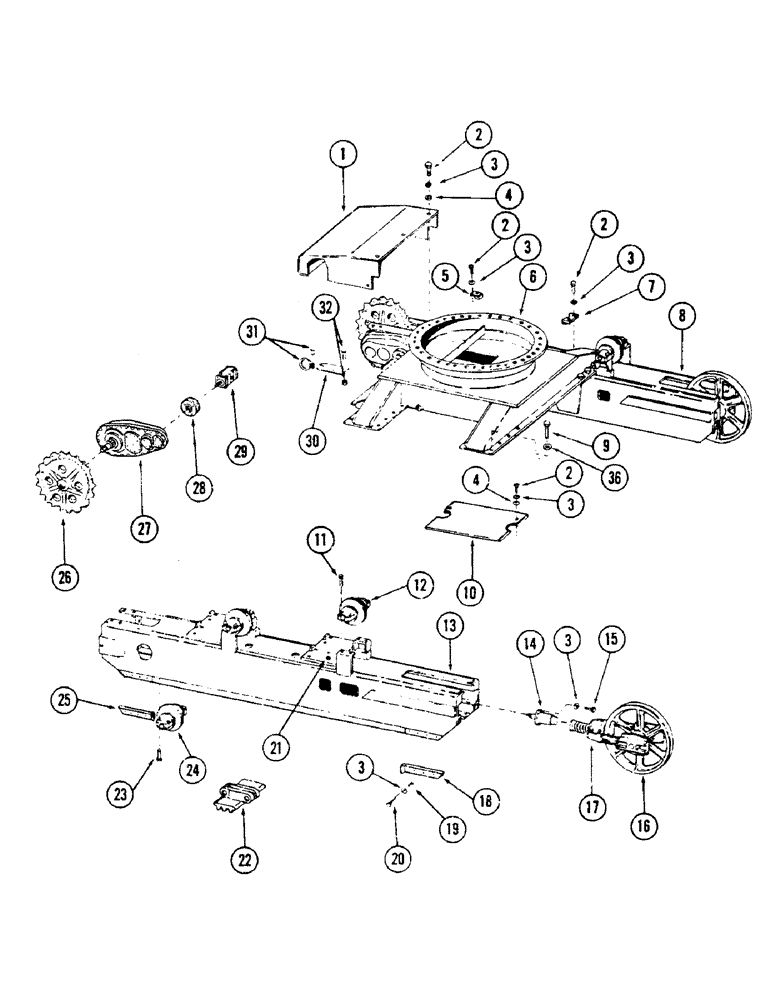

Запчасти Case 50 (002A) - CRAWLER UNDERCARRIAGE AND RELATED PARTS, (S/N 6279926 AND (39) - FRAMES AND BALLASTING

1

S614952

GUARD - motor (Supersedes S608983)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

195-105

WASHER,7/16"

- flat - 1/2"

1шт.

5

S299180

STOP - track adjusting, Serial Range: 6279926-6280344

4шт.

6

S608991

SUPPORT - bearing, Serial Range: 6279926-6280344

1шт.

S610364

SUPPORT - bearing, Start Serial: 6280345

1шт.

7

S209072

STOP - track adjusting, Serial Range: 6279926-6280344

2шт.

8

S954523

FRAME - track (Left hand), Serial Range: 6279926-6280344

1шт.

S955129

FRAME

- track (Left hand), Start Serial: 6280345

1шт.

9

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

CPSW - 7/8" - 9 NC x 3" gr 8

32шт.

10

S229182

PLATE - swivel guard

1шт.

11

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces 13-1040) Hex, 5/8"-11 x 2 1/2", G5

16шт.

12

REF

INSTRUCTION

ROLLER - track (For breakdown, see figure 20 thru 24)

4шт.

13

S954528

FRAME - track (Right hand), Serial Range: 6279926-6280344

1шт.

S955128

FRAME

- track (Right hand), Start Serial: 6280345

1шт.

14

REF

INSTRUCTION

CYLINDER - track adjustment (For breakdown, see figure 12)

2шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

REF

INSTRUCTION

WHEEL - front idler (For breakdown, see figure 10)

2шт.

17

REF

INSTRUCTION

TRACK ADJUSTMENT GROUP - (For breakdown, see figure 10)

2шт.

18

S511363

BAR

- wear (Right hand)

4шт.

19

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2" (Replaces S86132)

32шт.

20

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

CPSW - 1/2" - 13 NC x 1-1/2" gr 8

32шт.

21

131-460

LOCK NUT,5/8"-11

NUT - self locking 5/8" - 11 NC

16шт.

22

REF

INSTRUCTION

TRACK ASSEMBLY (For breakdown, see figure 26)

2шт.

23

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CPSW - 5/8" - 11 NC x 2" gr 8

80шт.

24

REF

INSTRUCTION

ROLLER - track (For breakdown, see figures 14 thru 18)

4шт.

25

S511364

BAR ASSY.

BAR - wear (Left hand)

4шт.

26

REF

INSTRUCTION

WHEEL, sprocket drive (See item 46 on figure 30)

2шт.

27

REF

INSTRUCTION

TRANSMISSION - final drive (For breakdown, see figure 28)

2шт.

28

REF

INSTRUCTION

BRAKE - track drive (For breakdown, see figures 32, 34 or 36)

2шт.

29

REF

INSTRUCTION

MOTOR - track drive (For breakdown, see figures 230)

2шт.

30

S209710

PLATE

- draw bar (optional)

1шт.

31

240-11

SHACKLE

- round pin (optional)

1шт.

32

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Optional) Hex, 3/4"-10 x 3 1/4", G5

4шт.

131-450

NUT,3/4"-10

NUT - self locking 3/4" NC

4шт.

33

S110499

BAR - stop, Start Serial: 6280345

6шт.

34

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

, Start Serial: 6280345

12шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2", Start Serial: 6280345

12шт.

36

S92341

WASHER

- hardened flat 1/2", Start Serial: 6280345

32шт.
