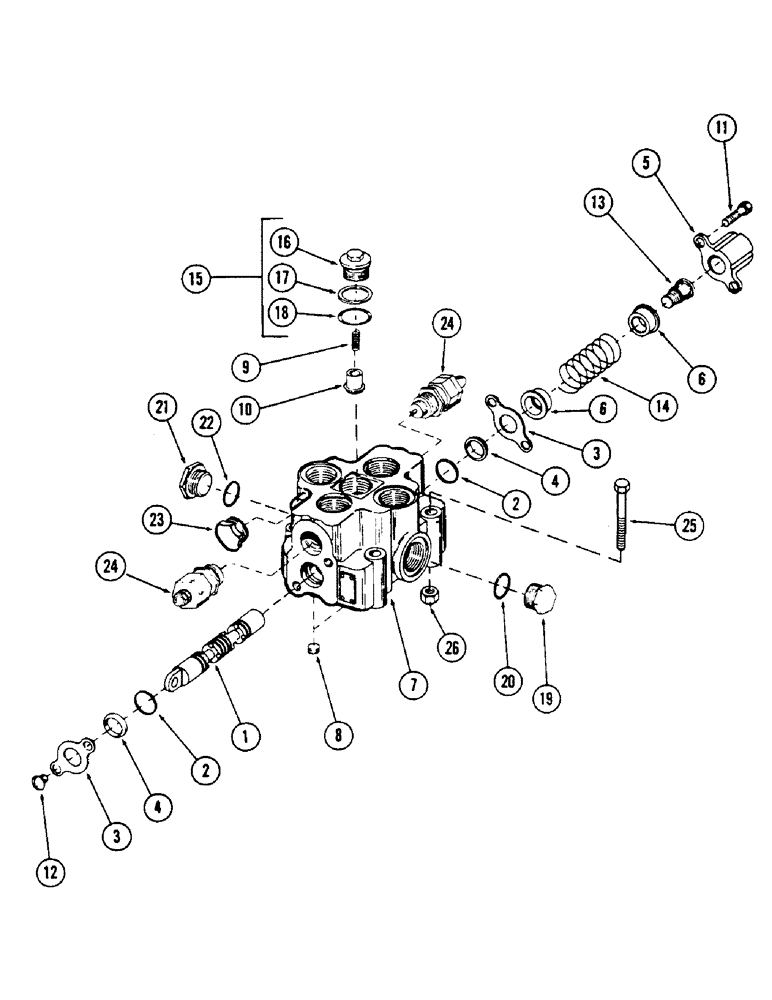

Запчасти Case 50 (269A) - 1-SPOOL MAIN CONTROL VALVE, USED WITH LEVELER HYDRAULICS ON UNITS WHICH HAVE BOTH AUXILIARY HYDRAULI (35) - HYDRAULIC SYSTEMS

S514349

KIT

VALVE - 1 spool main control, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

2шт.

3

S13829

PLATE

- seal

2шт.

4

S62092

WIPER

2шт.

5

S62278

CAP

- plunger

1шт.

6

S62288

SEAT

- spring

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

S105060

PLUG

- pipe

2шт.

9

S13715

SPRING

1шт.

10

S13716

VALVE POPPET

POPPET

1шт.

11

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW - socket head

2шт.

12

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - machine 3/8" NC x 1/2"

2шт.

13

S62290

BOLT

CPSW - special

1шт.

14

S108192

SPRING

1шт.

15

S105062

PLUG

ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

S105094

PLUG

1шт.

17

S105095

RING

- back-up

1шт.

18

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING

1шт.

19

S8986

PLUG

- (1) 1/4" tube) 1-5/8" - 12 male, Includes: Ref. 20

1шт.

20

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

1шт.

21

S8985

PLUG

- (1" tube) 1-5/16" - 12 male, Includes: Ref. 22

1шт.

22

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

23

S81690

PLUG

- special

1шт.

24

REF

INSTRUCTION

CARTRIDGE - port relief set at 2500 PSI (For breakdown, see figure 268)

2шт.

25

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" gr 5

2шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

26

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

3шт.
