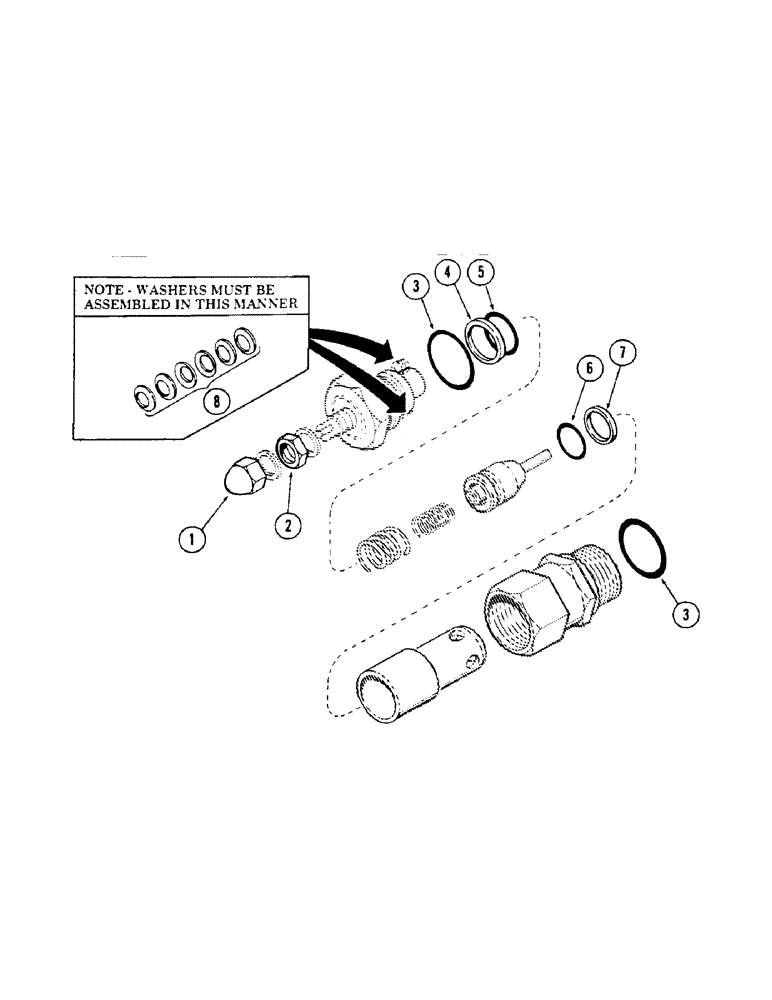

Запчасти Case 50 (268[1]) - PORT RELIEF CARTRIDGE ("R" SERIES) (35) - HYDRAULIC SYSTEMS

S239212

VALVE, PRESSURE RELI

CARTRIDGE - "R" series port relief valve set at 3400 PSI, Includes: Ref. 1 - 8

3шт.

1

S116073

CAP

NUT - acorn

1шт.

2

S116072

JAM NUT

- jam

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

Part of seal kit, P/N S117193

1шт.

4

S83071

BACK-UP RING

RING - back up

1шт.

Part of seal kit, P/N S117193

1шт.

5

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING

1шт.

Part of seal kit, P/N S117193

1шт.

6

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING

1шт.

Part of seal kit, P/N S117193

1шт.

7

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- back up

1шт.

Part of seal kit, P/N S117193

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - spring

12шт.

9

S117193

SEAL KIT

- seal, Includes: Ref. 3 thru 7

1шт.

N9092

KIT

repair, use to repair cartridges

1шт.
