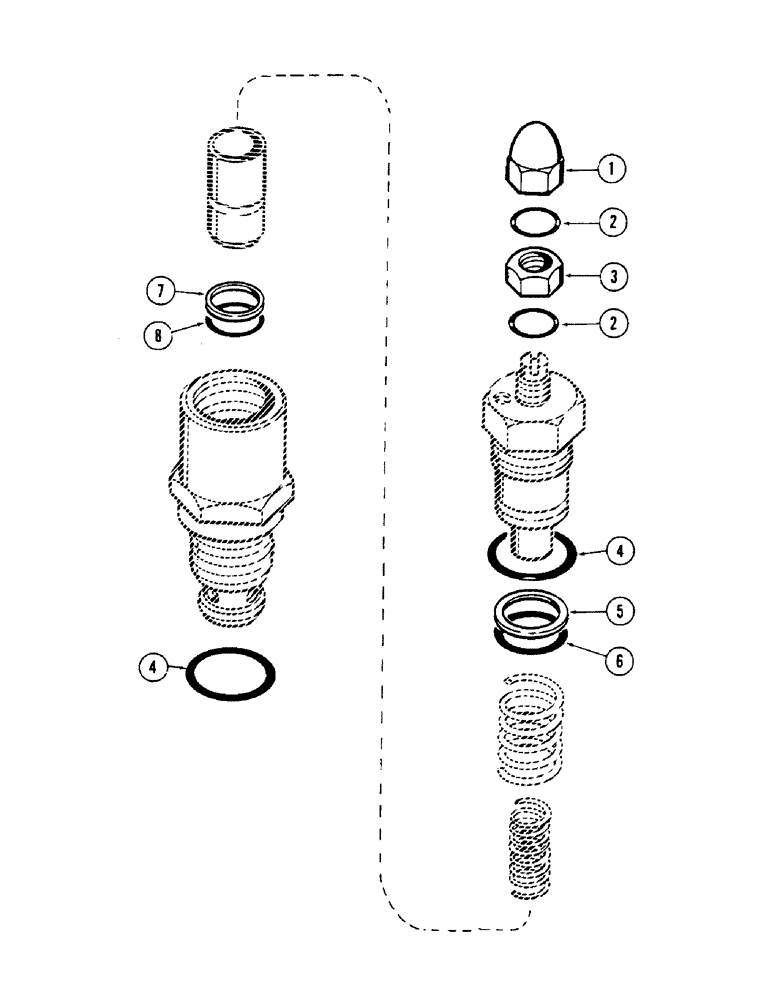

Запчасти Case 50 (266) - MAIN RELIEF CARTRIDGE, USED ON UNITS W/ SN.6280223,6280243&6280245 AND AFTER) (35) - HYDRAULIC SYSTEMS

S237783

VALVE

CARTRIDGE - main relief set at 3300 PSI, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

NUT - acorn

1шт.

2

S116070

O-RING

"O" RING

2шт.

3

S116072

JAM NUT

- jam

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

Part of seal kit, P/N S117194

1шт.

5

S84155

BACK-UP RING,76mm ID x 0.45mm Width

- back up

1шт.

Part of seal kit, P/N S117194

1шт.

6

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING

1шт.

Part of seal kit, P/N S117194

1шт.

7

C11865

RING

- back up

1шт.

Part of seal kit, P/N S117194

1шт.

8

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING

1шт.

Part of seal kit, P/N S117194

1шт.

9

S117194

SEAL KIT

- seal, Includes: Ref. 4 thru 8

1шт.
