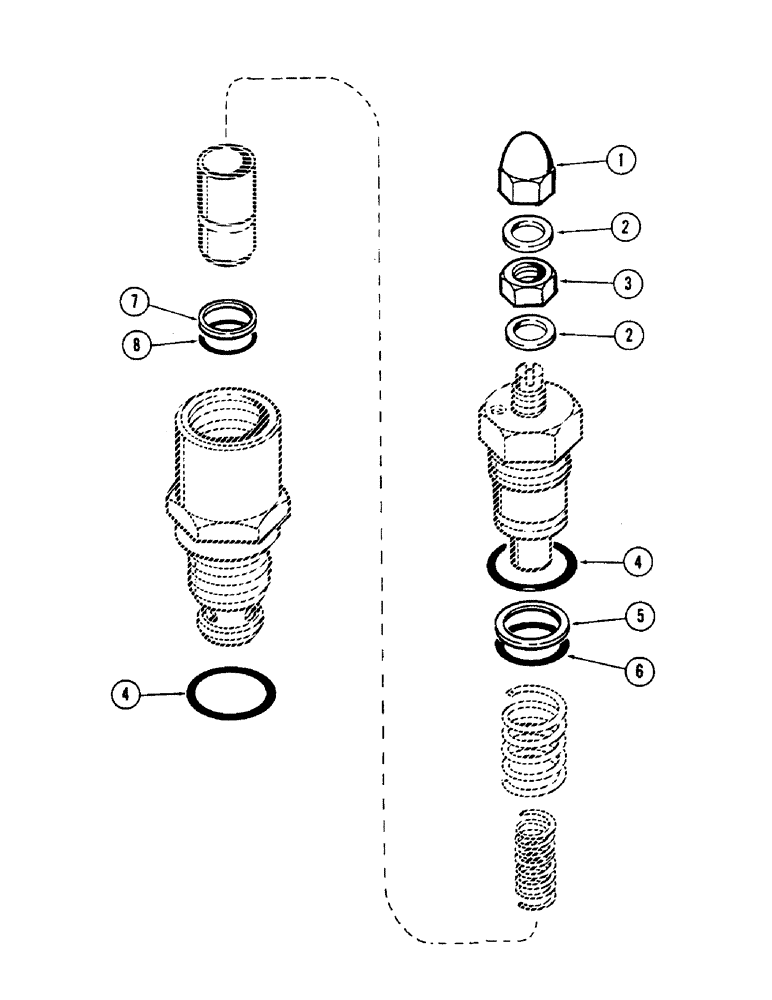

Запчасти Case 50 (264) - MAIN RELIEF CARTRIDGE, USED ON UNITS WITH SERIAL NUMBER 6279926-6280244 EXCEPT 6280223&6280243 (35) - HYDRAULIC SYSTEMS

NSS

NOT SOLD SEPARAT

VALVE - main relief set at 3300 PSI (For complete replacement order S237783 on figure 266), Includes: Ref. 1 - 8

2шт.

1

S93372

NUT

- acorn

1шт.

2

S93370

WASHER

2шт.

3

S93371

NUT

1шт.

4

S109966

O-RING

2шт.

5

S84155

BACK-UP RING,76mm ID x 0.45mm Width

- back up

1шт.

6

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

1шт.

7

C11865

RING

- back up (Replaces S106771)

1шт.

8

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.
