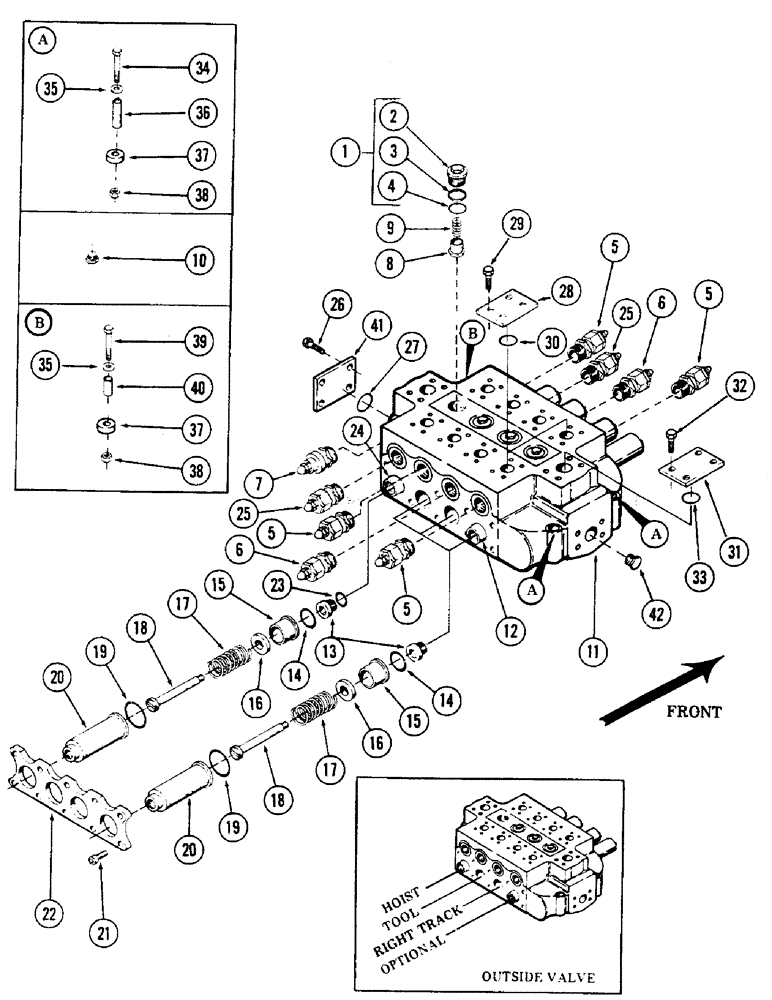

Запчасти Case 50 (261A) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE), (USED ON UNITS W/ SN. 6280345 & AFTER)(SN. 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S514302

VALVE

- main control (Outside) (Used on units without optional leveler or auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

S514303

VALVE

- main control (Outside) (Used on units with optional leveler and without auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

S514304

VALVE

- main control (Outside) (Used on units with optional leveler and auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

1

S104993

PLUG

ASSEMBLY, Includes: Ref. 2 - 4

4шт.

2

S105092

PLUG

1шт.

3

S105091

OIL SEAL

RING - back-up

1шт.

4

S90254

O-RING

"O" RING

1шт.

5

REF

INSTRUCTION

CARTRIDGE - port relief set at 3400 PSI (For breakdown, see figure 268)

4шт.

6

REF

INSTRUCTION

CARTRIDGE - port relief set at 2500 PSI (For breakdown, see figure 268)

2шт.

7

REF

INSTRUCTION

CARTRIDGE - main relief set at 3300 PSI (For breakdown, see figure 264 or 266)

1шт.

8

S104992

VALVE POPPET

POPPET

4шт.

9

S13715

SPRING

4шт.

10

S105060

PLUG

- pipe (Mounts to underside of valve)

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

13

S109517

PLUG

8шт.

14

S109515

O-RING

"O" RING

8шт.

15

S109522

CAP

- retainer

8шт.

16

S110107

SPACER

8шт.

17

S109516

SPRING

8шт.

18

S109518

RETAINER

- spring

8шт.

19

S109521

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING

8шт.

20

S109519

PLUNGER

CAP - plunger

8шт.

21

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - 3/8" NC x 2" gr 8 (Socket head)

20шт.

22

S109884

PLATE

2шт.

23

S90243

O-RING

"O" RING

2шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

25

REF

INSTRUCTION

CARTRIDGE - "R" series port relief - set at 3400 PSI (For breakdown, see page 268)

2шт.

26

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

27

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484 ID x 1.750" OD

1шт.

28

S231603

COVER

- "O" ring (Used only with control valve S514303)

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" NC x 1-1/2" gr 5 (Used only with control valve S514303)

4шт.

30

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD (Used only with control valve S514303)

1шт.

31

S231589

COVER

- "O" ring (Used on control valve S514303 and S514304)

1шт.

32

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Used with control valve S514303 and S514304 Hex, 7/16"-14 x 1 1/4", G5

4шт.

33

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD (Used with control valve S514303 and S514304)

1шт.

34

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- 1/2" NC x 5-3/4" gr 5

2шт.

35

95-8

WASHER,1/2"

flat 1/2"

3шт.

36

S108315

SPACER

2шт.

37

S113313

SPACER

- (Between valve and turntable)

3шт.

38

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

3шт.

39

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

40

S108316

SPACER

1шт.

41

S236440

COVER

- "O" ring

1шт.

42

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" NPT male hex

1шт.
