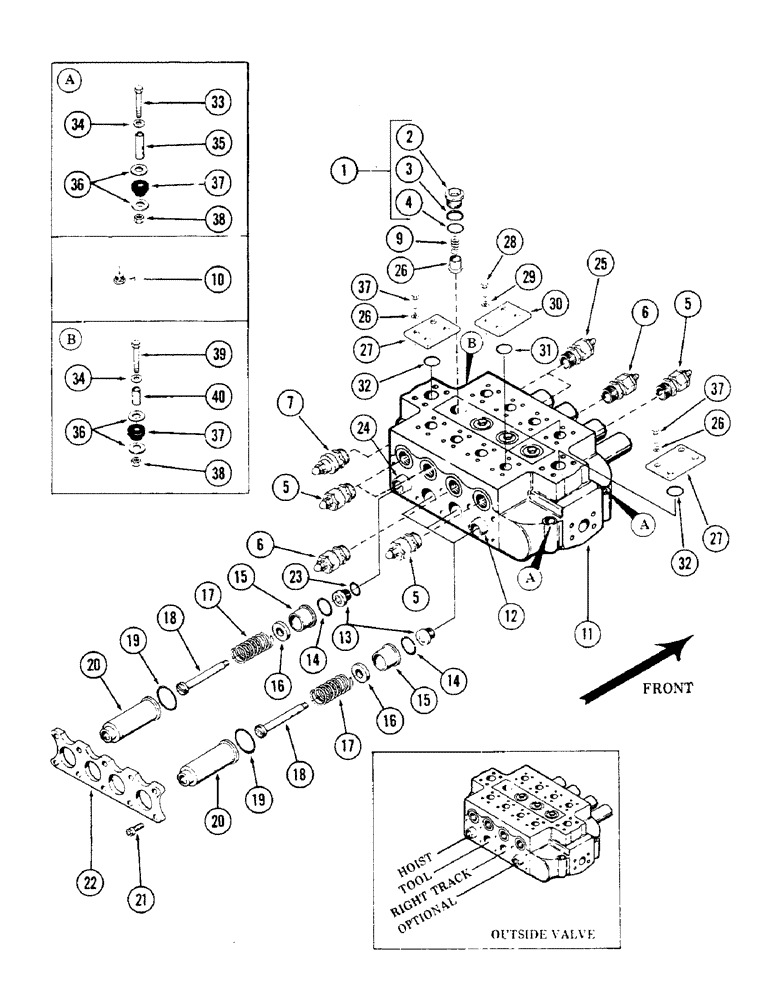

Запчасти Case 50 (260) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE), (USED ON UNITS W/ SN. 6279926 - 6280344) (35) - HYDRAULIC SYSTEMS

S514825

VALVE

- main control (Outside), Includes: Ref. 1 - 25

1шт.

1

S104993

PLUG

ASSEMBLY, Includes: Ref. 2 - 4

4шт.

2

S105092

PLUG

1шт.

3

S105091

OIL SEAL

RING - back-up

1шт.

4

S90254

O-RING

"O" RING

1шт.

5

REF

INSTRUCTION

CARTRIDGE - port relief set at 3400 PSI (For breakdown, see figure 268)

4шт.

6

REF

INSTRUCTION

CARTRIDGE - port relief set at 2500 PSI (For breakdown, see figure 268)

2шт.

7

REF

INSTRUCTION

CARTRIDGE - main relief set at 3300 PSI (For breakdown, see figure 264 or 266)

1шт.

8

S104992

VALVE POPPET

POPPET

4шт.

9

S13715

SPRING

4шт.

10

S105060

PLUG

- pipe (Mounts to underside of valve)

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

13

S109517

PLUG

8шт.

14

S109515

O-RING

"O" RING

8шт.

15

S109522

CAP

- retainer

8шт.

16

S110107

SPACER

8шт.

17

S109516

SPRING

8шт.

18

S109518

RETAINER

- spring

8шт.

19

S109521

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING

8шт.

20

S109519

PLUNGER

CAP - plunger

8шт.

21

61-632

HEX SOC SCREW,3/8"-16 x 2"

CPSW - 3/8" NC x 2" gr 8 (Socket head)

20шт.

22

S109884

PLATE

2шт.

23

S90243

O-RING

"O" RING

2шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

25

REF

INSTRUCTION

CARTRIDGE - "R" series port relief set at 3400 PSI (For breakdown, see page 268)

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

27

S231589

COVER

- "O" ring

2шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CPSW - 3/8" NC x 1-1/2" gr 5

9шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

30

S231603

COVER

- "O" ring

2шт.

31

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

32

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD

2шт.

33

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

CPSW - 1/2" NC x 5-1/2" gr 5

2шт.

34

95-8

WASHER,1/2"

flat 1/2"

3шт.

35

S108315

SPACER

2шт.

36

196-10

WASHER,.521" x 2" x .134", HDN

- flat 1/2" (Replaces S111135)

6шт.

37

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.
