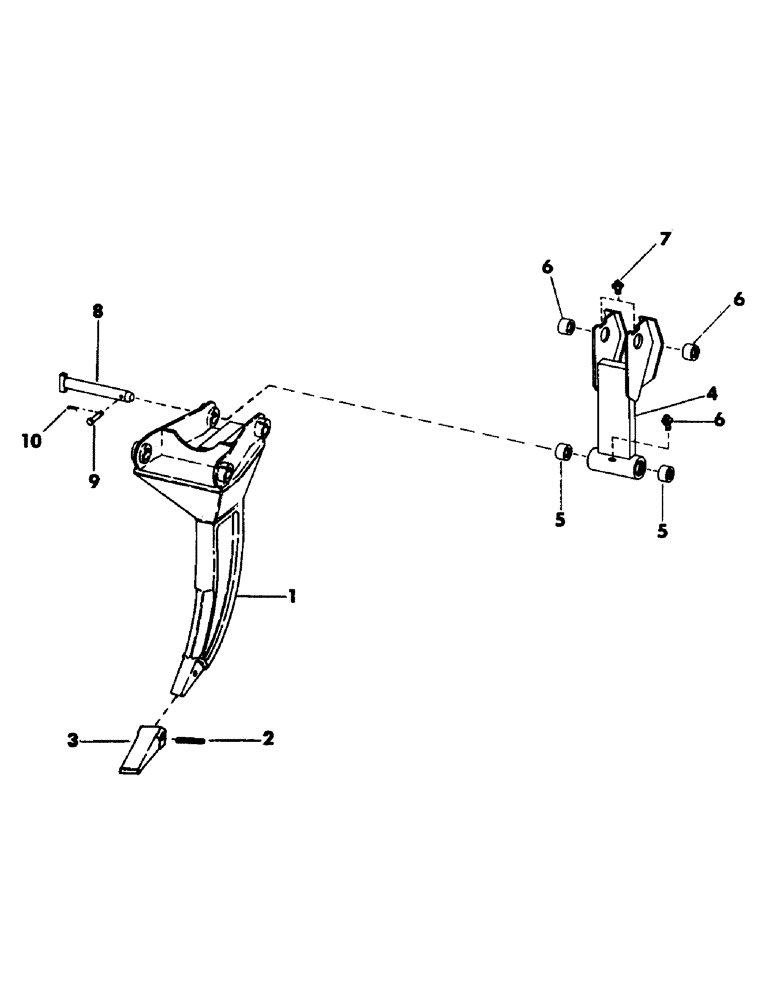

Запчасти Case 50 (093) - RIPPER TOOTH (84) - BOOMS, DIPPERS & BUCKETS

1

S603936

RIPPER - (Includes items 2 and 3)

1шт.

REF#1 THE SHANK PART NUMBER IS S33065

1шт.

2

S7895

PIN, ROLL

- 1/2" x 3" long

1шт.

3

S25334M2

TIP, replaceable

1шт.

4

S509132

LINK

- (Includes items 5 thru 7) - (Supersedes S218370M1)

1шт.

5

S202162

BUSHING

2шт.

6

S202134

BUSHING

2шт.

7

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

8

S220251

PIN ASSY.

PIN

1шт.

9

S10834

CLEVIS PIN

PIN, clevis - 5/8" x 4.760" grip length

1шт.

10

S4643

SPLIT PIN

PIN, cotter - 5/32" x 1-1/2" long

1шт.
