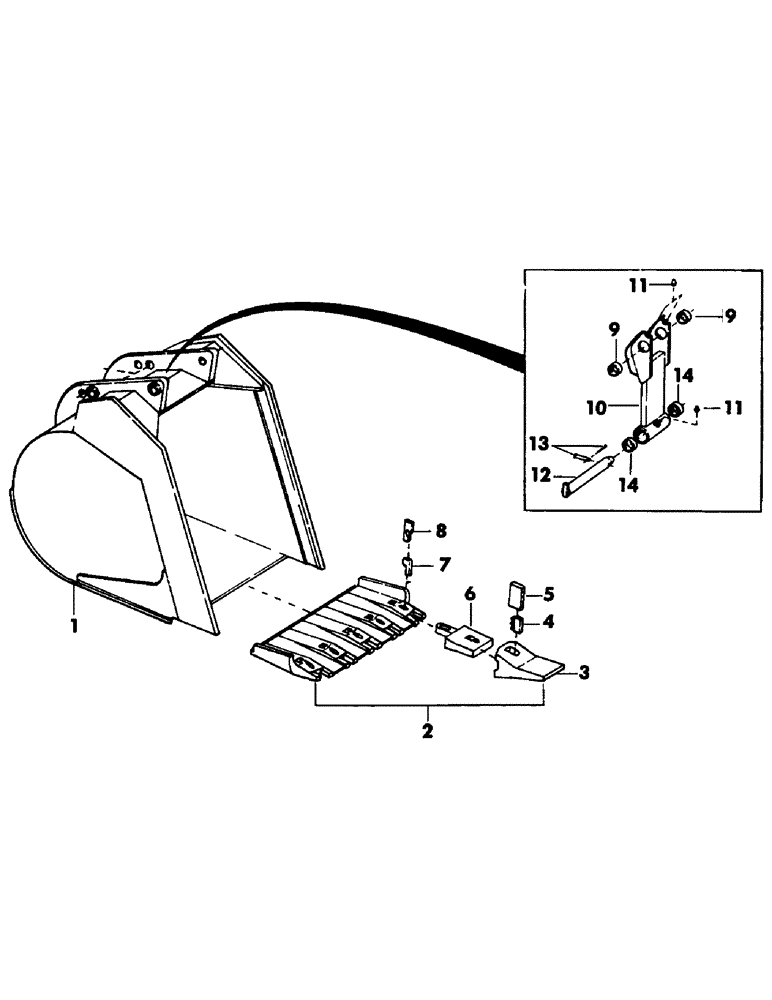

Запчасти Case 50 (092) - SEVERE DUTY BAKCHOE BUCKETS WITH ESCO TEETH (84) - BOOMS, DIPPERS & BUCKETS

1

S953069

BUCKET, severe duty backhoe - 29-1/4" inside wideth - 3/4" cu. yd. capacity

1шт.

S952619

BUCKET, high capacity severe duty backhoe - 29-1/4" inside width 1 cu. yd. capacity

1шт.

S953070

BUCKET, severe duty backhoe - 35-1/4" inside width - 1 cu. yd. capacity

1шт.

2

S506827

LIP ASSEMBLY - (Used with S953069 and S952619 buckets) (Includes lip and items 3 thru 8)

1шт.

S506828

LIP ASSEMBLY - (Used with S953070 bucket) - (Includes lip and items 3 thru 8)

1шт.

S506828

LIP ASSEMBLY - (Used with S953070 bucket) - (Includes lip and items 3 thru 8)

1шт.

3

S96431

POINT

1шт.

4

S96433

LOCK

1шт.

5

S96434

PIN

1шт.

6

S96432

NIPPLE, LUBE

ADAPTER

1шт.

7

S96436

SPOOL

LOCK

1шт.

8

S96435

WEDGE

KEY

1шт.

9

S202134

BUSHING

2шт.

10

S509132

LINK

- (Includes items 9 and 11)

1шт.

11

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

12

S220251

PIN ASSY.

PIN

1шт.

13

S10834

CLEVIS PIN

PIN, clevis - 5/8" x 4.760" grip length

1шт.

S4643

SPLIT PIN

PIN, cotter - 5/32" x 1-1/2" long

1шт.

14

S202162

BUSHING

2шт.
