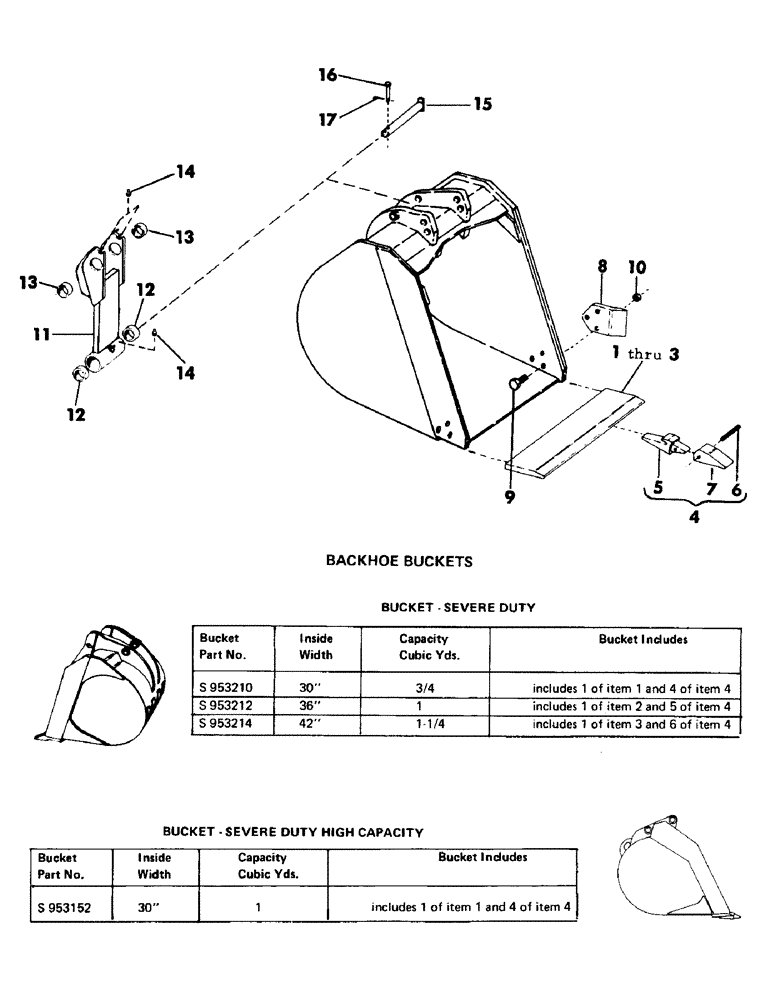

Запчасти Case 50 (090) - BACKHOE BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

S216317

EDGE, cutting - for 30" backhoe bucket - 1-1/2" x 10"

1шт.

2

S216318

EDGE, CUTTING

- for 36" backhoe bucket - 1-1/2" x 10"

1шт.

3

S216319

EDGE, cutting - for 42" backhoe bucket - 1-1/2" x 10"

1шт.

4

S503108

TOOTH

- (Includes items 5 thru 7)

1шт.

5

S59402

SHANK

tooth

1шт.

6

S7894

PIN

roll - 33/64" x 2-1/2" long

1шт.

7

S503093

POINT

TIP, replaceable

1шт.

8

S33993

CUTTER

side

2шт.

9

S2549

BOLT

CPSW - 3/4" NC x 3" gr 5

6шт.

10

S4227

NUT

- 3/4" NC

6шт.

11

S509132

LINK

- (Includes items 12 thru 14) - (Supersedes S218370M1)

1шт.

12

S202162

BUSHING

2шт.

13

S202134

BUSHING

2шт.

14

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

15

S220251

PIN ASSY.

PIN

1шт.

16

S10834

CLEVIS PIN

PIN, clevis - 5/8" x 4.760" grip length

1шт.

17

S4643

SPLIT PIN

PIN, cotter - 5/32" x 1-1/2" long

1шт.
