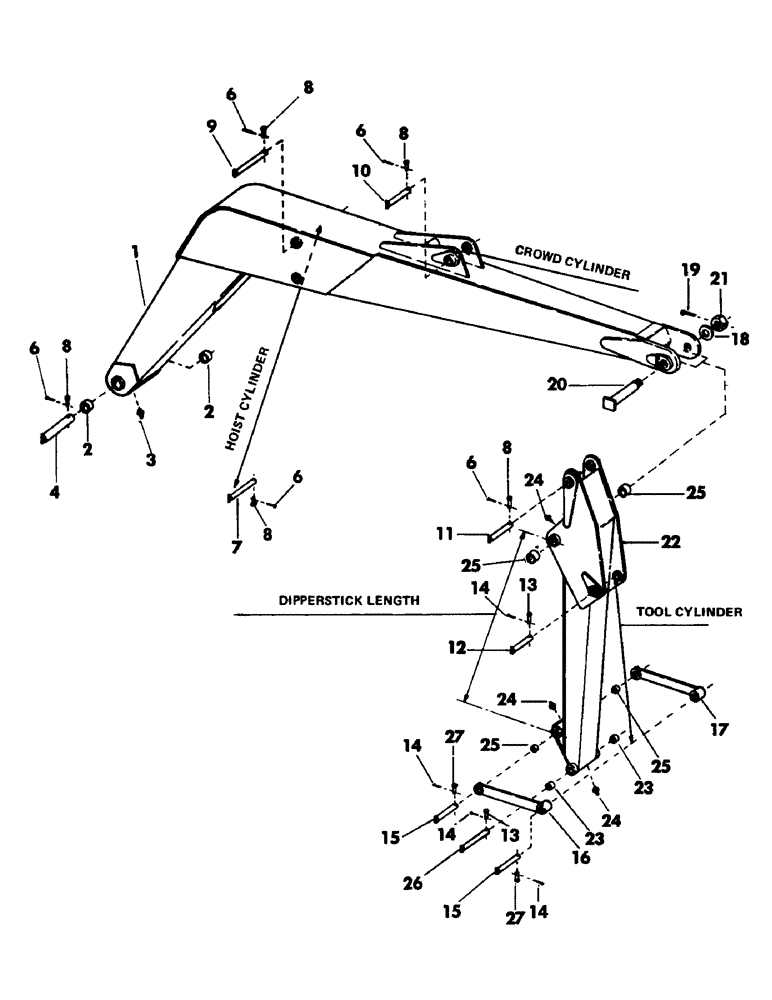

Запчасти Case 50 (060) - "E" MAIN BOOM AND DIPPERSTICKS (84) - BOOMS, DIPPERS & BUCKETS

1

S954171

BOOM, main excavator - (Includes items 2 and 3) - (Supersedes S953054) - (When kit no. S608905 is used, see item 28)

1шт.

2

S87929M1

BUSHING

2шт.

3

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

4

S201023M1

PIN

1шт.

5

S61975

PIN,20.62mm OD x 106.76mm L

clevis - 5/8" x 3.766" grip length

1шт.

6

S4628

SPLIT PIN

PIN, cotter - 1/8" x 1-1/4" long

5шт.

7

S212137

PIN

1шт.

8

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

4шт.

9

S220251

PIN ASSY.

PIN

1шт.

10

S212135

PIN

1шт.

11

S212136

PIN

1шт.

12

S208704

PIN

1шт.

13

S61973

AXLE PIN

PIN, clevis

2шт.

14

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

4шт.

15

S223985

PIN ASSY.

PIN

2шт.

16

S216188

LINK ASSY.

LINK, guide - (Right hand)

1шт.

17

S216189

LINE, guide - (Left hand)

1шт.

18

S7436

WASHER

flat - 2"

1шт.

19

S4678

PIN

cotter - 1/4" x 3-1/2" long

1шт.

20

S220250

PIN ASSY.

PIN, shoulder

1шт.

21

S9396

NUT

slotted - 2" NC

1шт.

22

S953064

DIPPERSTICK - 10'5" - (Includes items 23 thru 25)

1шт.

S953063

DIPPERSTICK - 12'0" - (Includes items 23 thru 25)

1шт.

23

S87929

BUSHING

2шт.

24

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

25

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

26

S220251

PIN ASSY.

PIN

1шт.

27

S10819

CLEVIS PIN

PIN, clevis - 1/2" x 4.766" grip length

2шт.

28

S608905

KIT, "E" boom sound conversion - (Required on units with serial no. 550 thru 983 and 988 when replacement of boom S953054 is required)

1шт.

NOTE:CATALOG ERROR ON THE ILLUSTRATION PAGE.THE ITEMS MARKED #23 SHOULD BE CHANGED TO READ #25.THE ITEMS MARKED #25 SHOULD READ #23. 9/10/96

1шт.
