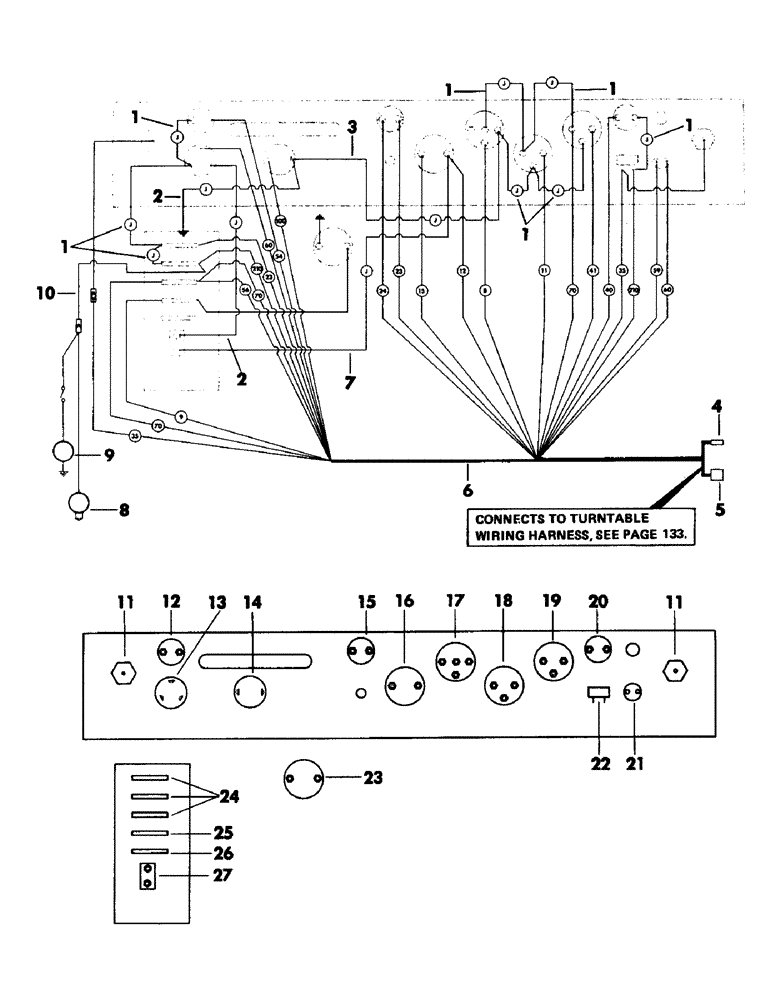

Запчасти Case 50 (131) - INSTRUMENT PANEL WIRING HARNESS & ELECTRICAL COMPONENTS (55) - ELECTRICAL SYSTEMS

1

S208230

WIRE, jumper - No. 12 gauge x 4" long

7шт.

2

S208228

WIRE, jumper - No. 12 gauge x 9" long

2шт.

3

S209787

ELECTRICAL WIRE

WIRE, jumper - No. 14 gauge x 20" long

1шт.

4

S72216

ROD, CONNECTING

CONNECTOR BODY

1шт.

5

S72172

ROD, CONNECTING

CONNECTOR BODY

1шт.

6

S223281

ELECTRICAL WIRE

WIRING HARNESS, instrument panel - (Includes items 4 and 5)

1шт.

7

S213755

ELECTRICAL WIRE

WIRE, jumper - No. 10 gauge x 22" long

1шт.

S62256

LOOM

(Bulk) - 1 piece - 22" long - (Over wire for protection)

1шт.

8

S85807

FAN

defroster

1шт.

S40799M1

SCREW, self tapping - 1/4" NC x 1/2"

3шт.

9

MOTOR, wiper - (For wiper motor and switch, see item 29 and 34 on Figure 39)

1шт.

S78162

CLAMP

-, Serial Range: (Wiper-cab)

5шт.

S62256

LOOM

(Bulk) - 1 piece - 70" long - (Around wiper wire for protection)

1шт.

10

S221693

WIRE, jumper - No. 14 gauge x 73" long

1шт.

11

S85560

LIGHT

panel

2шт.

12

S63242

BUTTON

starter

1шт.

13

S76366

SWITCH

ignition

1шт.

REF#13 IGNITION KEY IS PART R30074 9/10/96

1шт.

14

S96034

LIGHT

brake

1шт.

S96096

BULB

1шт.

15

S63242

BUTTON

horn

1шт.

16

S27828M1

AMMETER

1шт.

17

S27829M1

X

GAUGE, fuel

1шт.

18

S27824M2

X

GAUGE, engine temperature

1шт.

19

S27827M2

X

GAUGE, oil pressure

1шт.

20

S63242

BUTTON

cold weather starting - (Furnish with optional cold weather starting kit - for kit see Figure 144)

1шт.

21

SWITCH, heater - (Furnished with heater, see item 11 on Figure 153)

1шт.

22

S16866

SWITCH

panel light

1шт.

23

S213391M1

HOURMETER

- (Furnish with wires) - (Mounts to item 20 on Figure 33)

1шт.

S85106

FLANGE

DAMPENER

1шт.

S14523

SCREW, machine - No. 4 NC x 3/4"

3шт.

S2128

LOCK WASHER

WASHER, lock - No. 6

3шт.

S17259

NUT

- No. 4 NC

3шт.

S78681

TERMINAL CONNECTOR

TERMINAL - (Crimp to hourmeter wire for ground)

1шт.

S70973

TERMINAL CONNECTOR

TERMINAL - (Crimp to hourmeter wire to fuse panel)

1шт.

24

S66917

FUSE

- 15 amp

3шт.

25

S92483

FUSE

- 7.5 amp

1шт.

26

S49918

BREAKER

circuit

1шт.

S14514

SCREW, machine - No. 10 NC x 5/8" - (Mounts breaker to fuse holder)

2шт.

S7480

WASHER, LOCK

- No. 10

2шт.

S17263

NUT

- No. 10 NC

2шт.

S17276

NUT

- No. 10 NF - (For breaker terminal post)

2шт.

S7340

WASHER, LOCK

- No. 10 - (Internal tooth)

2шт.

27

S213686

HOLDER

fuse

1шт.

S14869

SCREW, machine - No. 6 NC x 3/4" - (Mounts fuse holder to instrument panel)

2шт.

S2128

LOCK WASHER

WASHER, lock - No. 6

2шт.

S17261

NUT

- No. 6

2шт.
