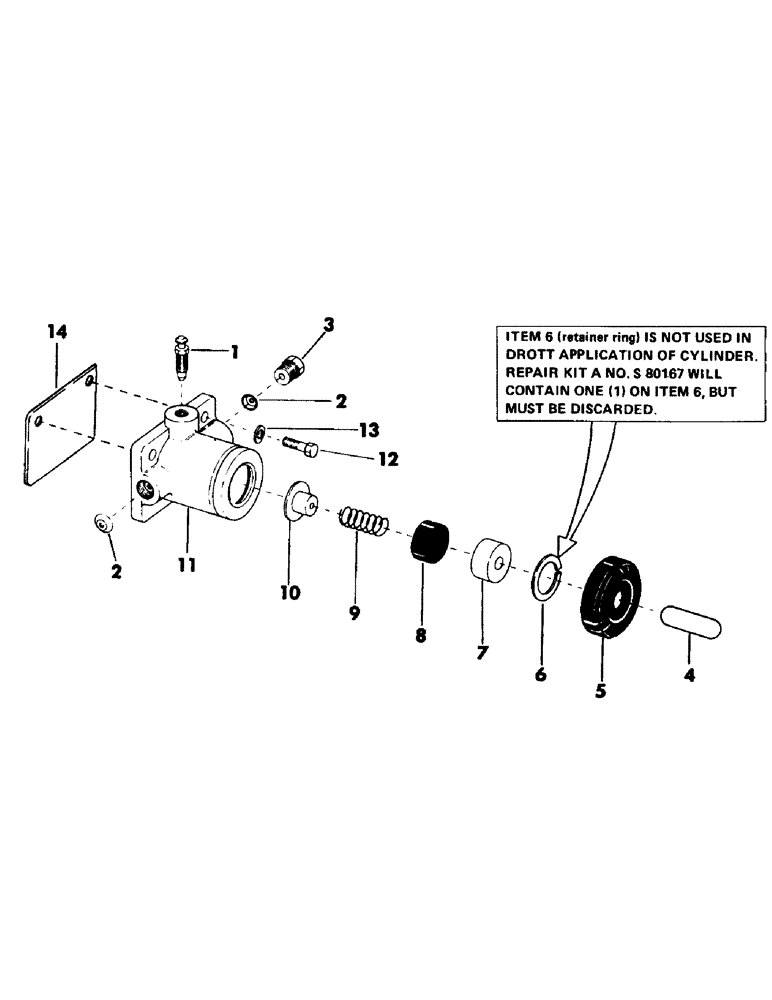

Запчасти Case 50 (084) - TRACK BRAKE CYLINDER (48) - TRACKS & TRACK SUSPENSION

S209804

CYLINDER

track brake - complete - (Consists of items 1 thru 11)

2шт.

1

SCREW, bleeder

1шт.

A - serviced in kit only.

1шт.

2

INSERT - 1/4" tube seat

2шт.

A - serviced in kit only.

1шт.

3

PLUG - 1/4" tube seat

1шт.

A - serviced in kit only.

1шт.

4

NSS

NOT SOLD SEPARAT

ROD, push

1шт.

5

BOOT

1шт.

A - serviced in kit only.

1шт.

6

RING, retainer - (In S80167 kit - do not use)

1шт.

A - serviced in kit only.

1шт.

7

PISTON

1шт.

A - serviced in kit only.

1шт.

8

CUP

1шт.

A - serviced in kit only.

1шт.

9

SPRING

1шт.

A - serviced in kit only.

1шт.

10

NSS

NOT SOLD SEPARAT

STOP, spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

2шт.

13

S4395

WASHER, LOCK

- 1/4"

2шт.

14

S96840

SPACER

4шт.

S80167

PACKAGE,SERVICE

KIT, service - (Consists of items 1 thru 4 and 5 thru 9)

1шт.

A - serviced in kit only.

1шт.
