Запчасти Case 50 (079) - TRACK BRAKE SWIVEL (48) - TRACKS & TRACK SUSPENSION

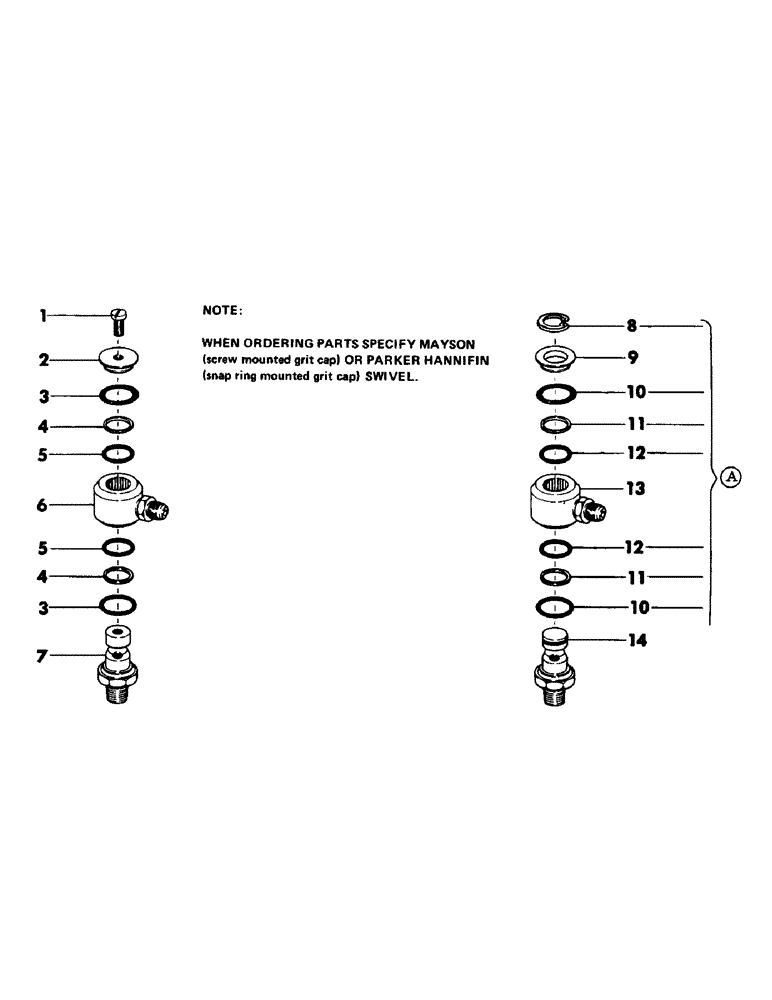

Схема запчастей Case 50 - (079) - TRACK BRAKE SWIVEL (48) - TRACKS & TRACK SUSPENSION

Артикул

Название

Примечание

Количество

S209351

FITTING

SWIVEL, track brake (Mayson) - complete - (Consists of items 1 thru 7)

1шт.

1

S63916

SCREW

Fillister head No. 10 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

S5709

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING, backup

2шт.

5

S6478

SEAL

"O" RING - .612" ID x .812" OD

2шт.

6

S80213

SLEEVE

1шт.

7

S79933

LINK

STEM

1шт.

S209351

FITTING

SWIVEL, track brake (Parker Hannifin) - complete - (Consists of items 8 thru 14)

1шт.

8

RING, snap

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

"O" RING

2шт.

11

RING, backup

2шт.

12

"O" RING

2шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

STEM

1шт.

S95177

KIT

service - (Consists of items 8, 10, 11, 12)

1шт.

Выбрано товаров: 17
