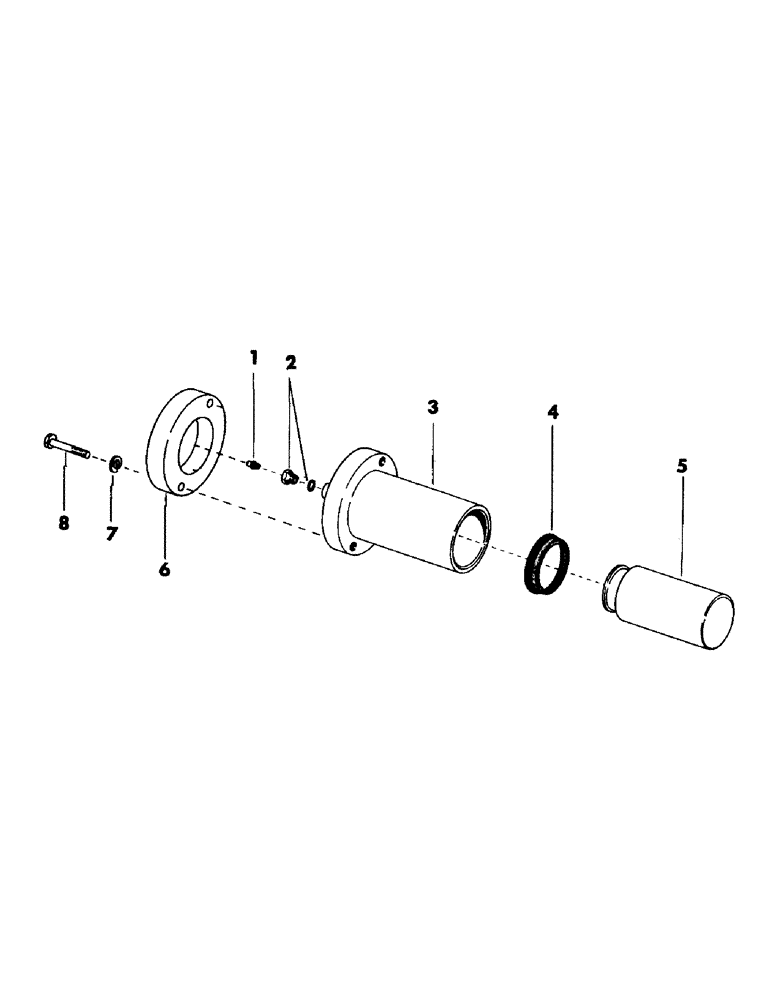

Запчасти Case 50 (020) - TRACK ADJUSTMENT CYLINDER (48) - TRACKS & TRACK SUSPENSION

S56864

CYLINDER

track adjustment - complete (Consists of items 1 thru 5)

2шт.

1

S86260

FITTING

grease - 1/4" NPT straight

1шт.

2

S79901

ADAPTER - 1/4" NPT female x 9/16" - 18 male - (Includes "o" ring)

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .406" ID x .547" OD

1шт.

3

S39298

TUBE,7.5" L

cylinder

1шт.

4

S78837

SEAL

1шт.

5

S209107

PISTON

1шт.

6

S79135

SPACER

cylinder mounting

1шт.

7

S4399

WASHER

lock - 1/2"

2шт.

8

S2469

BOLT

CPSW - 1/2" NC x 2" Gr 5 - (Mounts cylinder to track frame)

2шт.
