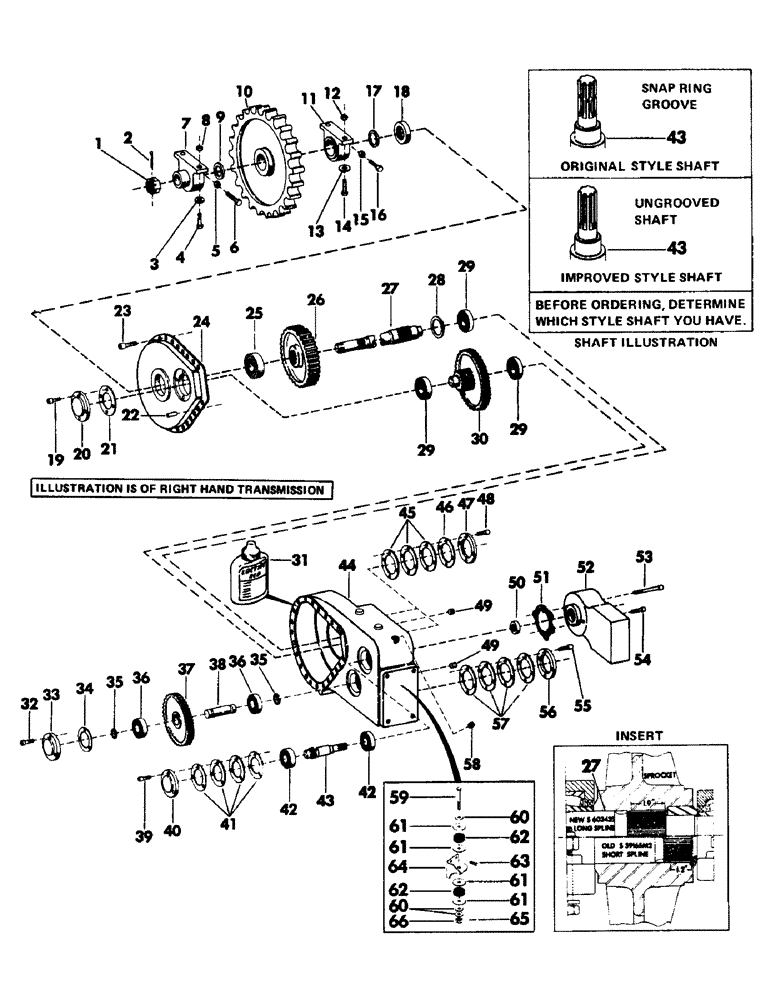

Запчасти Case 50 (016) - FINAL DRIVE TRANSMISSION (48) - TRACKS & TRACK SUSPENSION

S604785

TRANSMISSION, final drive - complete (Consists of items 1, 2, and 18 thru 58) - (Right hand) - (Used on units with serial no. 550 thru 623, except units with longer spline)

1шт.

S604637

TRANSMISSION

final drive - complete (Consists of items 1, 2 and 18 thru 58) - (Left hand) - (Used on units with serial no. 624 and after, also earlier units with longer spline)

1шт.

Change in listing.

1шт.

S604786

TRANSMISSION, final drive - complete (Consists of items 1, 2, and 18 thru 58) - (Left hand) - (Used on units with serial no. 550 thru 623, except on units with longer spline)

1шт.

S604636

CASE

TRANSMISSION, final drive - complete (Consists of items 1, 2, and 18 thru 58) - (Right hand) - (Used on units with serial no. 624 and after, also earlier units with longer spline)

1шт.

Change in listing.

1шт.

1

S9311

NUT

2" NF

1шт.

2

S5462

PIN

roll - 5/16" x 2-3/4" long

1шт.

3

S84753

WASHER

flat - 5/8" - (Hardened)

2шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" gr 8 - (Mounts pillow, Serial Range: block-frame)

2шт.

5

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

7

S209722

BLOCK

pillow - (Outer)

1шт.

8

S17088

NUT

self-locking - 5/8" NC

1шт.

9

S83872M1

X

SPACER, outer - (Used on units with short spline shaft only)

1шт.

Change in listing.

1шт.

10

S952423M1

RIM

SPROCKET, drive - (Used on units with serial no. 550 thru 623, except units with longer spline) - (See insert)

1шт.

S221928

SPROCKET ASSY.

SPROCKET, drive - (Used on units with serial no. 624 and after, also earlier units with longer spline) - (See insert)

1шт.

If dealer looking for bushing in sprocket----part number is S221929.

1шт.

11

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

12

S17089

NUT

self-locking - 3/4" NC

2шт.

13

S84752

WASHER

flat - 3/4" - (Hardened)

2шт.

14

S84785

BOLT

CPSW - 3/4" NC x 4-1/2" - (Special) - (Mounts pillow, Serial Range: block-frame)

2шт.

15

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

1шт.

16

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

17

S83873

SPACER

inner

1шт.

18

S83874

OIL SEAL

SEAL, oil

1шт.

19

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

4шт.

20

S217974M1

COVER

bearing

1шт.

21

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

22

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

23

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

24

S952720M1

X

COVER, transmission

1шт.

25

S83875

ROLLER BEARING

BEARING, roller

1шт.

26

S603741

GEAR

output

1шт.

Replacement of either gear Ref. 26 or 30 (formerly P/N S600865M2 and P/N S601224) will necessitate the ordering of the gear P/N S603741 and P/N S603740. These gears must be replaced as a pair. See service bulletin no. 81 dated September 1, 1972.

1шт.

27

S59165M2

X

SHAFT, output - (Used on units with serial no. 550 thru 623, except units with longer spline) - (See insert)

1шт.

S603435

SHAFT

output - (Used on units with serial no. 624 and after, also earlier units with longer spline) - (See insert)

1шт.

28

S76259

RING, SNAP

RING, retaining

1шт.

29

S65025

BEARING ASSY

BEARING, roller

3шт.

30

S603740

GEAR

CLUSTER AND SHAFT

1шт.

Replacement of either gear Ref. 26 or 30 (formerly P/N S600865M2 and P/N S601224) will necessitate the ordering of the gear P/N S603741 and P/N S603740. These gears must be replaced as a pair. See service bulletin no. 81 dated September 1, 1972.

1шт.

31

S96077

SEAL

- 10 CC bottle (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

32

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

33

S210368

COVER

bearing

1шт.

34

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

35

S62725

RING

retaining

2шт.

36

S65035

ROLLER BEARING

BEARING, roller

2шт.

37

S53338

GEAR

CLUSTER, intermediate

1шт.

38

S210366

SHAFT

intermediate

1шт.

39

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

40

S203411

COVER

bearing

1шт.

41

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

42

S65036

BEARING ASSY

BEARING, roller

2шт.

43

S508255

SHAFT

improved style - (Without snap ring groove)

1шт.

S34044

SHAFT

original style - (With snap ring groove) - (Replaced by kit, item 67) - (See illustration)

1шт.

44

S952724M1

X

HOUSING, transmission - (Right hand)

1шт.

S952725M1

HOUSING

transmission - (Left hand)

1шт.

45

S204085

GASKET

shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

46

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

47

S217974M1

COVER

bearing

2шт.

48

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

8шт.

49

S7880

PLUG

pipe - 3/4" NPT - (Socket head)

2шт.

50

S65001

OIL SEAL

oil - (Brake housing)

1шт.

51

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

52

S57642

HOUSING

track brake - (Right hand and left hand)

1шт.

53

S12276

CAPSCREW

CPSW - 1/2" NC x 3" - (Brake housing to transmission) - (Socket head nylok)

1шт.

54

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" - (Brake housing to transmission) - (Socket head nylok)

1шт.

55

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

56

S210368

COVER

bearing

1шт.

57

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

58

S15165

PLUG, pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

59

S91560

BOLT

CPSW - 1" NC x 6-1/2" Gr 5 - (Mounting, Serial Range: bracket-frame)

1шт.

60

S89556

WASHER

flat - 1-1/6" - (Special)

3шт.

61

S89925

WASHER

flat - 1" - (Special)

4шт.

62

S89926

SPRING

ER, elastomer neoprene

2шт.

63

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" Gr 5 - (Mounting, Serial Range: bracket-transmission)

4шт.

64

S217967

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

S217968

BRACKET, transmission mounting - (Left hand) - (Not illustrated)

1шт.

65

S4674

SPLIT PIN

PIN, cotter - 1/4" x 2" long

1шт.

66

S89793

NUT

castle - 1" NC

1шт.

67

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring S74048) - (See page 82) - (Supersedes S34044)

1шт.
