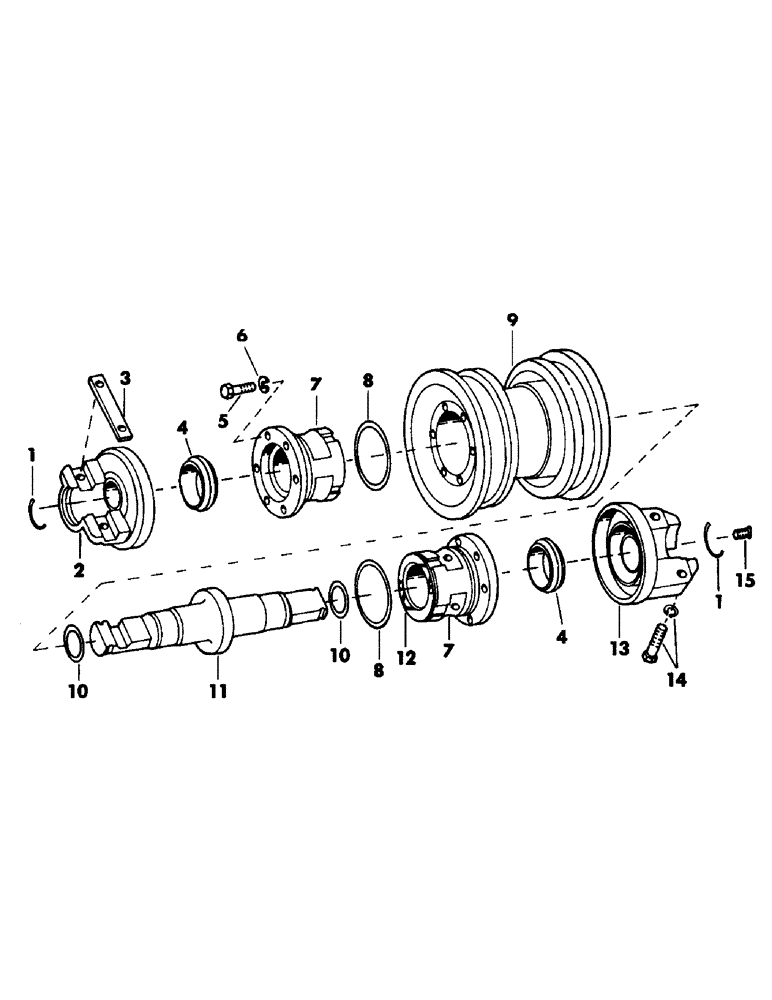

Запчасти Case 50 (013) - DOUBLE FLANGE TRACK ROLLER, (USED ON UNITS WITH SERIAL NUMBER 792 AND AFTER) (48) - TRACKS & TRACK SUSPENSION

S507721

ROLLER

double flange track - complete (Consists of items 1-15)

4шт.

1

S89317

RING, LOCKING

RING, snap -, Serial Range: (Shaft-collar)

2шт.

2

S89309

COLLAR

inner

1шт.

3

S89310

LOCK

1шт.

4

S95098

SEAL

GROUP - (Includes item 5)

2шт.

5

S97896

RING

4шт.

6

S87457

CAPSCREW

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

S4397

WASHER

lock - 3/8"

12шт.

7

S97843

BUSHING

ASSEMBLY

2шт.

8

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

2шт.

9

S97793

RIM

1шт.

10

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

2шт.

11

S89376

SHAFT

1шт.

12

S97897

BUSHING

inner - (Includes pins)

2шт.

S89318

PIN

- (Quantity of two used with each bushing assembly)

4шт.

13

S89314

COLLAR

outer

1шт.

14

S97894

CAPSCREW

CPSW

4шт.

S97895

WASHER

4шт.

REF#14 REPLACED BY 26-1036 9/9/96

1шт.

15

S87854

PLUG

oil filter - 3/4"

1шт.
