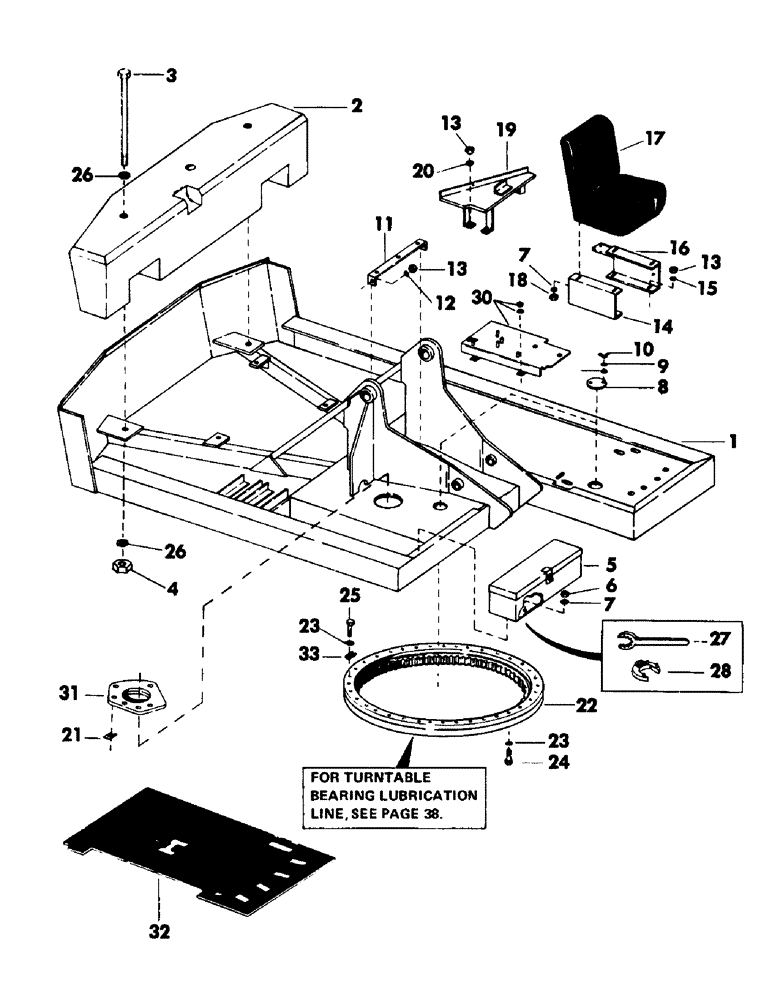

Запчасти Case 50 (035) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

S604775

ASSEMBLY

TURNTABLE, machined - (Supersedes S952906) - (Used on units with serial no. 550 thru 601)

1шт.

S604775

ASSEMBLY

TURNTABLE, machined - (Used on units with serial number 602 thru 908)

1шт.

S606627

TURNTABLE, machined - (Used on units with serial no. 909 and after)

1шт.

2

S603034

COUNTERWEIGHT

1шт.

3

S93716

CPSW - 1-1/4" NC x 17" gr 5

2шт.

4

S17093

LOCK NUT

NUT - 1-1/4" NC

2шт.

5

S219842

BOX, TOOL

TOOL BOX - (Optional)

1шт.

6

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

7

S7385

INSTRUCTION

WASHER, flat - 3/8"

12шт.

8

S76664

COVER

1шт.

9

S4397

WASHER

lock - 3/8"

4шт.

10

S77941

NUT, wing - 3/8" NC

4шт.

11

S68667

BRACKET, hydraulic line clamp mounting

1шт.

12

S7393

WASHER

flat - 1/2"

2шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

9шт.

14

S219432

CHANNEL, seat mounting - (Right hand)

1шт.

15

S7397

WASHER

flat - 1/2"

4шт.

16

S506117

CHANNEL, seat mounting - (Left hand)

1шт.

17

S220432

NO LONGER SERVICED

SEAT, operators

1шт.

18

S9088

NUT

self locking - 5/16" NC

4шт.

19

S506187

GUIDE, window storage

1шт.

20

S7395

WASHER

flat - 1/2"

3шт.

21

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

22

S508668

SLEWING RING

BEARING, turntable - (Used on units with serial no. 550 thru 601)

1шт.

S508669

BEARING ASSY

BEARING, turntable - (used on units with serial no. 602 and after)

1шт.

REF#22 &22A NOTE,THE SEAL USED IS PART S105067 9/10/96

1шт.

23

S92353

WASHER

hardened flat - 5/8" - (Used on units with serial no. 550 thru 601)

1шт.

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

hardened flat - 3/4" - (Used on units with serial no. 602 and after)

1шт.

24

S84906

BOLT

CPSW - 5/8" NC x 2" - (Special DMC) - bearing to flange - (Used on units with serial no. 550 thru 601)

36шт.

S94645

SPECIAL BOLT,3/4" - 10 x 2"

CPSW - 3/4" NC x 2" - (Special DMC) - bearing to flange - (Used on units with serial no. 602 and after)

36шт.

25

S86503

BOLT

CPSW - 5/8" NC x 2-1/4" - (Special DMC) - bearing to turntable (Used on units with serial no. 550 thru 601)

33шт.

S94644

SPECIAL BOLT,3/4" - 10 x 2.25"

CPSW - 3/4" NC x 2-1/4" - (Special DMC) - bearing to turntable (Used on units with serial no. 602 and after)

33шт.

26

S94627

WASHER, flat - 1-5/16"

4шт.

27

S206800

OPEN END WRENCH

WRENCH, tube - 1-1/2"

1шт.

28

S212214

OPEN END WRENCH

WRENCH, spanner

1шт.

G33236

OPEN END WRENCH

WRENCH, spanner

1шт.

S26769M1

WRENCH, spanner

1шт.

30

S505720

PLATE

1шт.

S7397

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

31

S506965M1

X

PLATE, swing reducer mounting

1шт.

32

S603731

MAT, floor

1шт.

33

S77916

SHIM,.005" Thk

Bearing to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Bearing to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Bearing to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Bearing to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Bearing to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Bearing to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Bearing to turntable .007" Thk

1шт.
