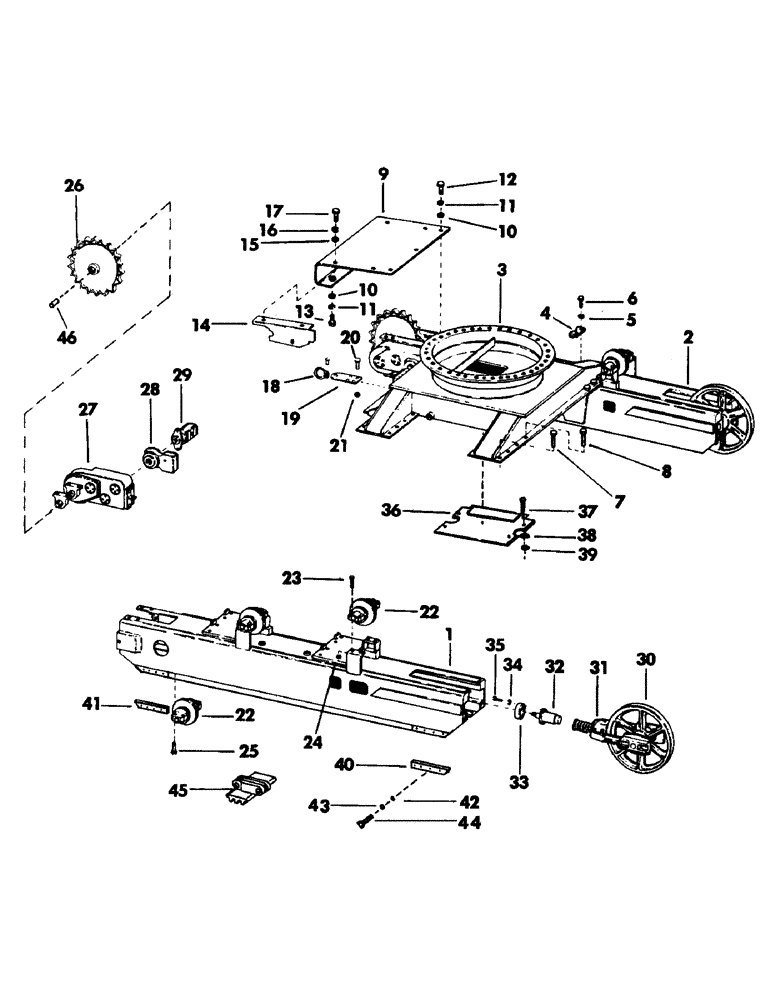

Запчасти Case 50 (008) - CRAWLER UNDERCARRIAGE AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

S953031

FRAME, track - (Right hand)

1шт.

2

S953032

FRAME, track - (Left hand)

1шт.

3

S953037

BODY

CARBODY

1шт.

4

S209072

STOP, track adjusting

4шт.

5

S4399

WASHER

lock - 1/2"

8шт.

6

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr. 5

8шт.

7

S93531

BOLT

CPSW - 7/8" NC x 3" gr. 8

16шт.

8

S93532

BOLT

CPSW - 7/8" NC x 2" gr. 8

16шт.

9

S502292

GUARD, motor

1шт.

10

S7393

WASHER

flat - 1/2"

5шт.

11

S4399

WASHER

lock - 1/2"

51шт.

12

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr. 5

3шт.

13

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr. 5

2шт.

14

S211601

SHIELD - (Right hand) - (Illustrated)

1шт.

S211602

SHIELD - (Left hand) - (Not illustrated)

1шт.

15

S7393

WASHER

flat - 1/2"

6шт.

16

S4399

WASHER

lock - 1/2"

6шт.

17

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr. 5

6шт.

18

S100742

SHACKLE

round pin - (Optional)

1шт.

19

S209710

PLATE

draw bar - (Optional)

1шт.

20

S2548

BOLT (MACHINE)

CPSW - 3/4" NC x 2-3/4" gr. 5

4шт.

21

S4227

NUT

- 3/4" NC

4шт.

22

ROLLER, track - (For breakdown, see pages 12 and 13)

24шт.

23

S2506

BOLT (MACHINE)

CPSW - 5/8" NC x 2-1/2" gr. 5

16шт.

24

S17088

NUT

self-locking - 5/8" NC

16шт.

25

S83629

BOLT

CPSW - 5/8" NC x 2" gr. 8

80шт.

26

S952423M1

RIM

WHEEL, sprocket drive - (Used on units with serial no. 550 thru 623 except units with longer spline - see insert "A" on page 16)

2шт.

S221928

SPROCKET ASSY.

WHEEL, sprocket drive - (Used on units with serial no. 624 and after) and earlier units with longer spline - see insert "A" on page 16) (Includes item 46)

2шт.

27

TRANSMISSION, final drive - (Left hand) (For breakdown, see page 16)

1шт.

TRANSMISSION, final drive - (Right hand) (For breakdown, see page 16)

1шт.

28

BRAKE, track drive - (For breakdown, see page 82)

2шт.

29

MOTOR, track drive - (For breakdown, see pages 115)

2шт.

30

WHEEL, front idler - (For breakdown, see page 10)

2шт.

31

TRACK ADJUSTER GROUP - (For breakdown, see page 10)

2шт.

32

CYLINDER, track adjustment - (For breakdown, see page 20)

2шт.

33

S79135

SPACER

2шт.

34

S4399

WASHER

lock - 1/2"

4шт.

35

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

36

S213950

PLATE, swivel guard

1шт.

37

S2503

BOLT (MACHINE)

CPSW - 5/8" NC x 2" gr. 5

8шт.

38

S7401

WASHER, flat - 5/8"

8шт.

39

S9093

NUT, self-locking - 5/8" NC

8шт.

40

S215812

BAR

wear - (Right hand)

4шт.

41

S215813

BAR

wear - (Left hand)

4шт.

42

S86132

WASHER

flat - 1/2"

32шт.

43

S4399

WASHER

lock - 1/2"

32шт.

44

S83408

BOLT

CPSW - 1/2" NC x 1-1/2" gr. 8

32шт.

45

TRACK ASSEMBLY - (For breakdown, see page 14 and 15)

2шт.

46

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

2шт.
