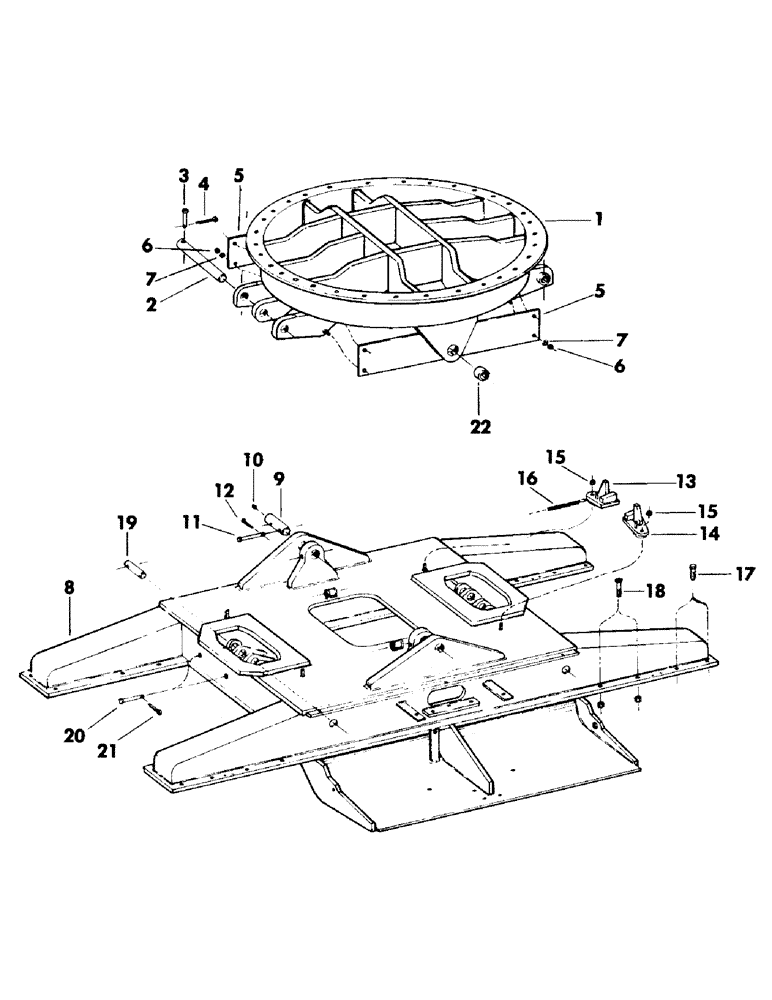

Запчасти Case 50 (006) - TURNTABLE LEVELER WITH PINS AND HARDWARE (39) - FRAMES AND BALLASTING

1

S59820

LEVELER, upper - (Used on units with serial no. 550 thru 601)

1шт.

S603820

LEVELER, upper - (Used on units with serial no. 602 and after)

1шт.

2

S85708

PIN

cylinder to leveler ring

2шт.

3

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

4

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

2шт.

5

S214790

COVER, motor - (Rear side)

2шт.

6

S9089

NUT

self-locking, 3/8" NC

8шт.

7

S7385

INSTRUCTION

WASHER, flat - 3/8"

8шт.

8

S953038

BASE, leveler

1шт.

9

S85739

PIN

leveler ring to base - (Includes item 10)

2шт.

10

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/4" NPT

2шт.

11

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

12

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

2шт.

13

S213942

STOP, leveler ring

2шт.

14

S213941

STOP, leveler ring

2шт.

15

S17169

INSTRUCTION

NUT - 1/2" NC

4шт.

16

S64335

SPRING, stop

2шт.

17

S93531

BOLT

CPSW - 7/8" NC x 3" gr. 8

16шт.

18

S93532

BOLT

CPSW - 7/8" NC x 2" gr. 8

16шт.

19

S87086

PIN

4шт.

20

S61972

PIN

4шт.

21

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1" long

4шт.

22

S202192

BUSHING

2шт.
