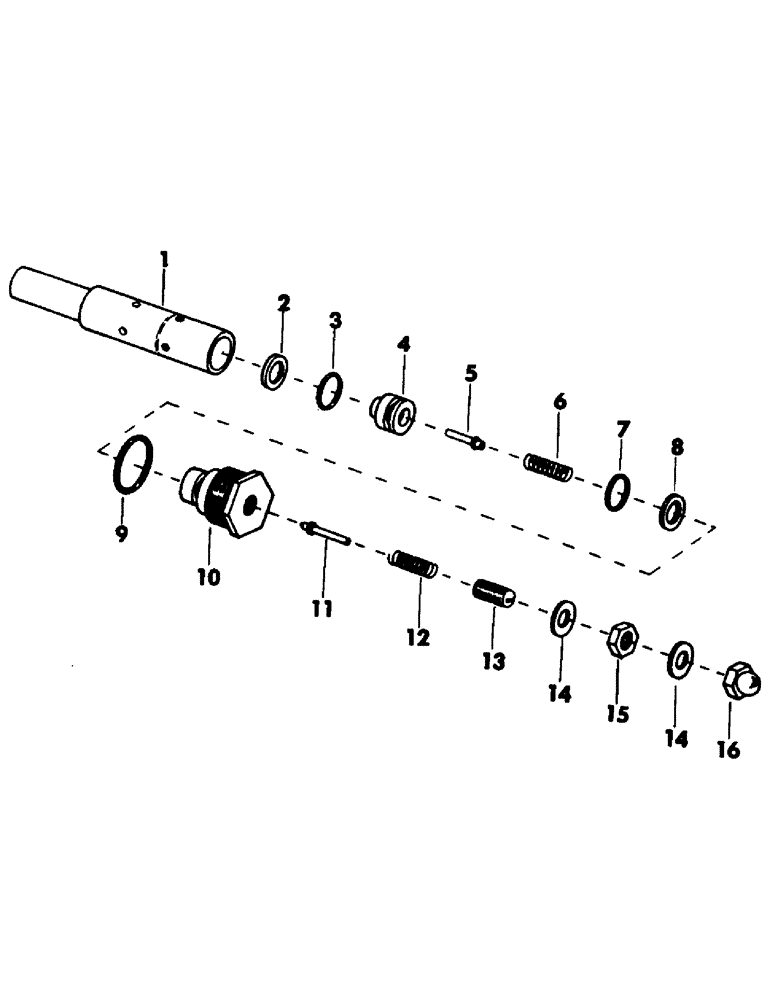

Запчасти Case 50 (129) - MAIN RELIEF CARTRIDGE (35) - HYDRAULIC SYSTEMS

S62112

CARTRIDGE

main relief valve - set at 2500 PSI - complete (Consists of items 1 thru 16)

1шт.

S62112

CARTRIDGE

main relief valve - set at 2750 PSI - complete (Consists of items 1 thru 16)

1шт.

1

S62413

SLEEVE

1шт.

2

S84098

BACK-UP RING,1/2" ID x 11/16" OD

backup

1шт.

3

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

4

S62366

VALVE POPPET

POPPET

1шт.

5

S62408

PISTON

1шт.

6

S62372

SPRING

1шт.

7

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD

1шт.

8

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

backup

1шт.

9

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

1шт.

10

S62414

PLUG

1шт.

11

S62323

POPPET

1шт.

12

S62359

SPRING

1шт.

13

S62325

ADJUSTMENT SCREW

adjustment

1шт.

14

S62365

WASHER

copper

2шт.

15

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

16

S62363

NUT

acorn

1шт.
