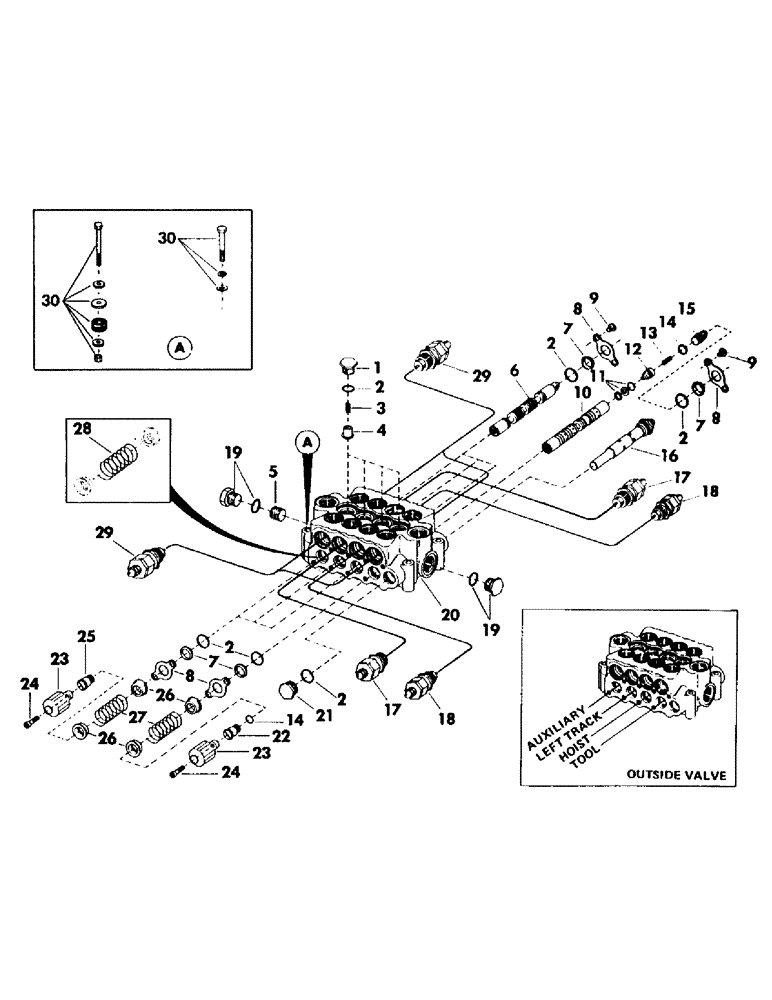

Запчасти Case 50 (127) - 4-SPOOL MAIN CONTROL VALVE, (USED WITH AUXILIARY, HOIST, LEFT TRACK AND TOOL) (35) - HYDRAULIC SYSTEMS

S507750

VALVE

4-spool main control - (Used on units without leveler) complete - (Consists of items 1 thru 4 and 6 thru 29)

1шт.

S507751

VALVE, 4-spool main control - (Used on units with leveler) complete - (Consists of items 1 thru 29)

1шт.

1

S13714

PLUG

4шт.

2

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

13шт.

3

S13715

SPRING

4шт.

4

S13716

VALVE POPPET

POPPET

4шт.

5

S7880

PLUG

- 3/4" - 14 male - (Used on units with leveler)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

7

S62092

WIPER

8шт.

8

S13829

PLATE

seal

8шт.

9

S14499

SPECIAL BOLT

SCREW, machine - 3/8" NC x 1/2"

8шт.

10

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

11

S7886

BACK-UP RING

RING, backup

3шт.

12

S62291

VALVE POPPET

POPPET

1шт.

13

S62189

SPRING

1шт.

14

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

15

S62289

END

plunger

1шт.

16

CARTRIDGE, main relief - set at 2750 PSI - (For breakdown, see Figure 129)

1шт.

17

S81796M1

VALVE

CARTRIDGE, port relief - set at 2250 PSI - (For breakdown, see Figure 130)

2шт.

18

S81689M1

CARTRIDGE, port relief - set at 3000 PSI - (for breakdown, see Figure 130)

6шт.

19

S62190

PLUG

- (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

21

S13707

PLUG

1шт.

22

S62290

BOLT

CPSW - (Special)

1шт.

23

S62278

CAP

plunger

4шт.

24

S3518

CAPSCREW

CPSW, socket head - 3/8" NC x 1" gr 8

8шт.

25

S62292

BOLT

CPSW - (Special)

3шт.

26

S62288

SEAT

spring

8шт.

27

S62269

SPRING

3шт.

28

S81915

VALVE SPRING

SPRING

1шт.

29

S85640

VALVE

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Figure 130)

4шт.

30

S2476

BOLT

CPSW - 1/2" NC x 3-3/4" gr 5 - (Mounts valve to turntable) (Used on units with serial no. 550 thru 908)

2шт.

S4399

WASHER

lock - 1/2"

3шт.

S7393

WASHER

flat - 1/2"

3шт.

31

S2480

CPSW - 1/2" NC x 4-3/4" gr 5 - (Mounts valve to turntable) (Used on units with serial no. 909 and after)

4шт.

S7393

WASHER

flat - 1/2"

4шт.

S98895

WASHER

flat - 1/2"

4шт.

S49527

MOUNTING PARTS

MOUNT, lord

4шт.

S7397

WASHER

flat - 9/16"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.
