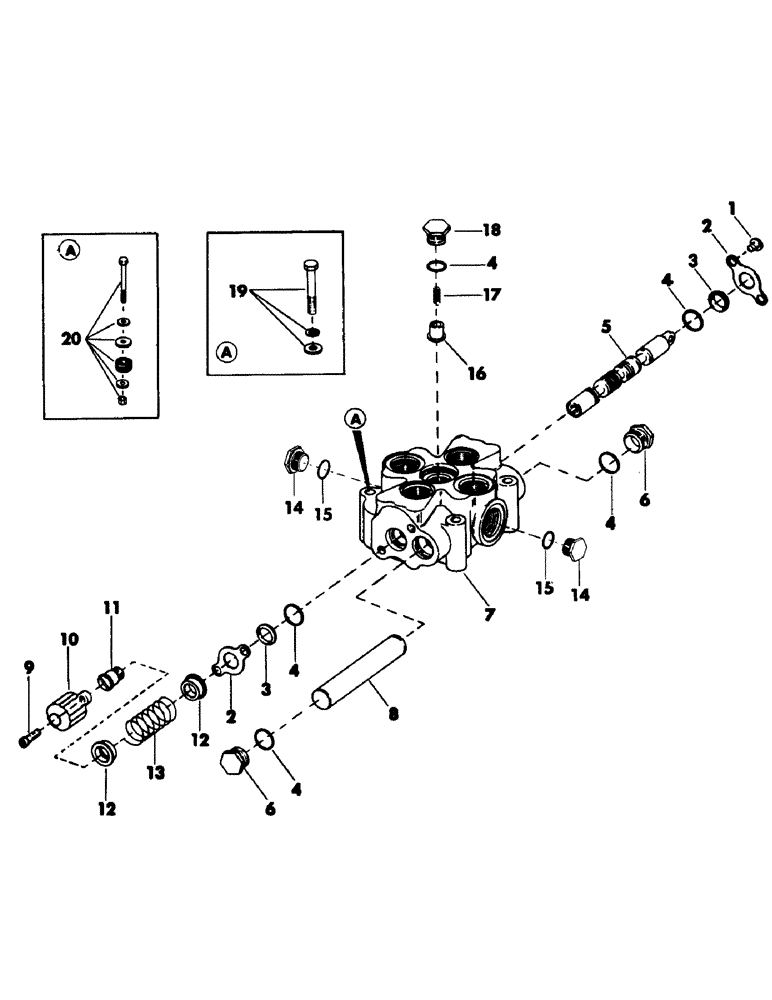

Запчасти Case 50 (123) - 1-SPOOL MAIN CONTROL VALVE, (USED WITH LEVELER CIRCUIT) (35) - HYDRAULIC SYSTEMS

S506848

VALVE, 1-spool main control - complete - (Consists of items 1 thru 18)

1шт.

1

S14499

SPECIAL BOLT

SCREW, machine - 3/8" NC x 1/2"

2шт.

2

S13829

PLATE

seal

2шт.

3

S62092

WIPER

2шт.

4

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

5шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

6

S13707

PLUG

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

8

S62276

PLUG

1шт.

9

S3518

CAPSCREW

CPSW - 3/8" NC x 1" gr 8 - (Hexagon socket head)

2шт.

10

S62278

CAP

plunger

1шт.

11

S62292

BOLT

CPSW - (Special)

1шт.

12

S62288

SEAT

spring

2шт.

13

S62269

SPRING

1шт.

14

S62190

PLUG

- (Includes "o" ring)

2шт.

15

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

16

S13716

VALVE POPPET

POPPET

1шт.

17

S13715

SPRING

1шт.

18

S13714

PLUG

1шт.

19

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Mounts valve to turntable) - (Used on units with S/N 550 thru 908) Hex, 1/2"-13 x 4", G5

3шт.

S4399

WASHER

lock - 1/2"

3шт.

S7395

WASHER

falt - 1/2"

3шт.

20

S2480

CPSW - 1/2" NC x 4" gr 5 - (Mounts valve to turntable) - (Used on units with serial no. 909 and after)

3шт.

S7393

WASHER

flat - 1/2"

3шт.

S98895

WASHER

flat - 1/2"

3шт.

S49527

MOUNTING PARTS

MOUNT, load

3шт.

S7397

WASHER

flat - 9/16"

3шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.
