(120) - SWING, IN LINE, CROSSOVER RELIEF VALVE

Запчасти Case 50 (120) - SWING, IN LINE, CROSSOVER RELIEF VALVE (35) - HYDRAULIC SYSTEMS

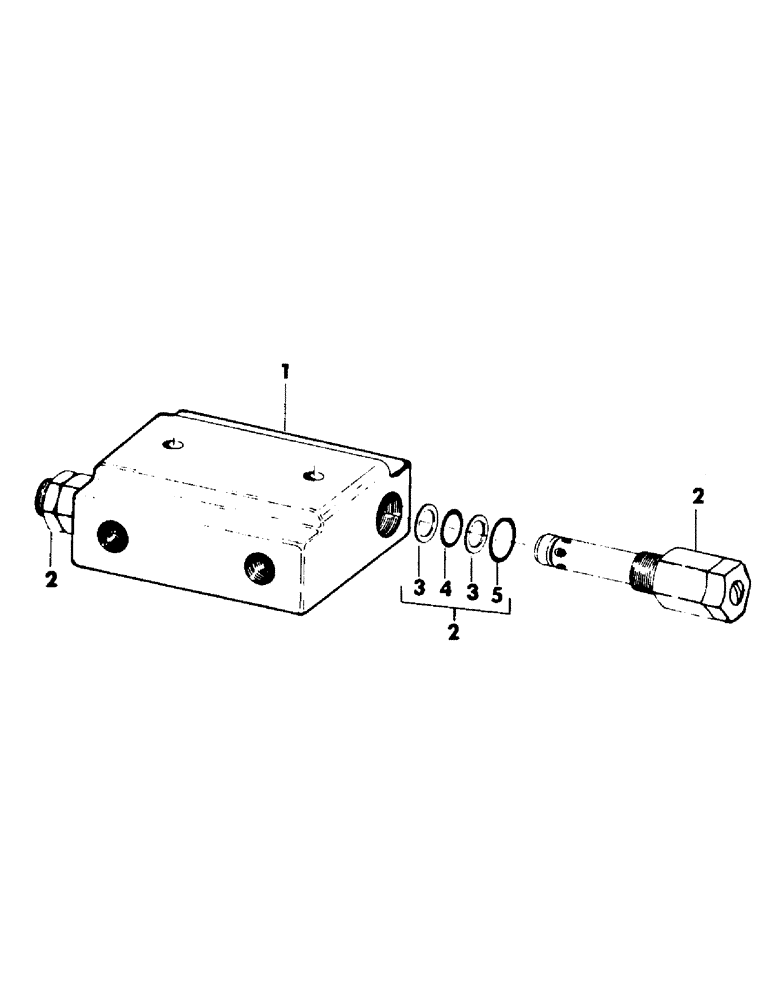

Схема запчастей Case 50 - (120) - SWING, IN LINE, CROSSOVER RELIEF VALVE (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S37296M2

VALVE, crossover inline relief - complete - (Consists of items 1 and 2)

1шт.

1

S73967

HOUSING

valve

1шт.

2

S73968M2

CARTRIDGE, relief - complete - (Consists of items 3 thru 5)

2шт.

3

S79384

RING

backup

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

S6579

O-RING

"O" RING - 1.046" ID x 1.312" OD

1шт.
