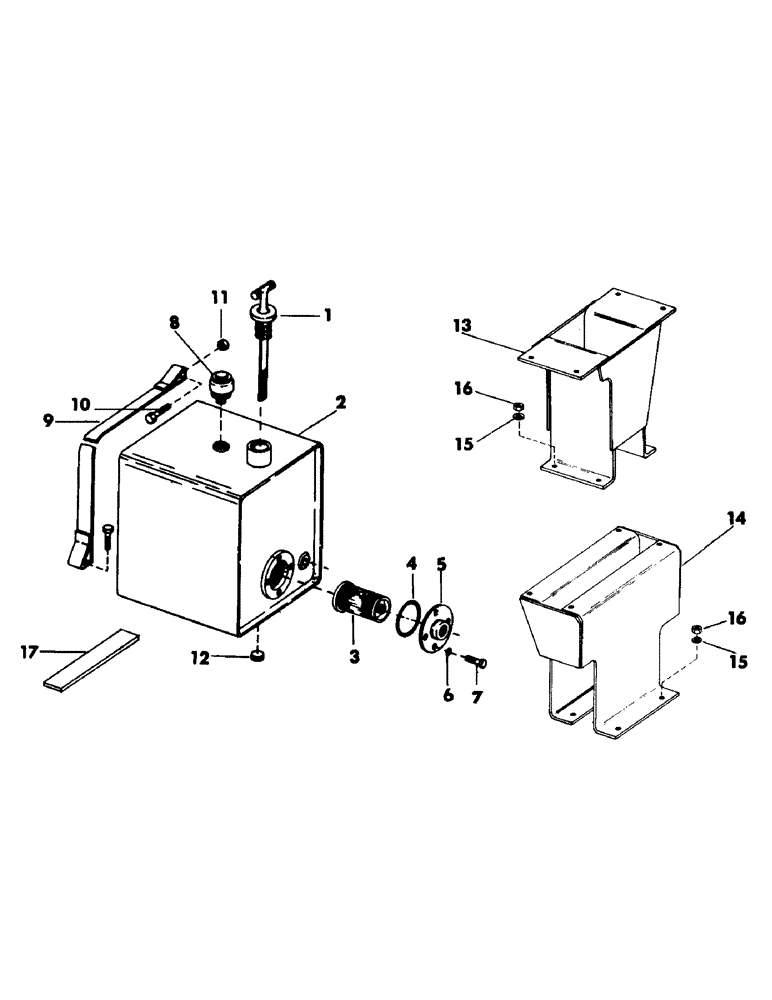

Запчасти Case 50 (119) - HYDRAULIC OIL RESERVOIR AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

1

S93220

DIPSTICK

1шт.

2

S506161

TANK

RESERVOIR, hydraulic oil

1шт.

3

S26293

FILTER SCREEN

FILTER, oil - (100 mesh)

1шт.

4

S6334

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - 4.234" ID x 4.500" OD

1шт.

5

S200926

FLANGE, filter mounting

1шт.

6

S103366

WASHER

seal

4шт.

7

S16475

CAPSCREW

CPSW - 5/16" NC x 1" gr 5

4шт.

8

S91864

BREATHER

1шт.

9

S92073

STRAP

mounting

2шт.

10

S2405

BOLT

CPSW - 3/8" NC x 1-3/4" gr 5

4шт.

11

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

12

S7880

PLUG

pipe - 3/4" NPT

1шт.

13

S506118

BRACKET, hydraulic reservoir - (Used with Detroit diesel 6V-53 engine)

1шт.

14

S506121

BRACKET, hydraulic reservoir - (Used with Case 504BDT diesel engine) - (Used on units with serial no. 550 thru 908)

1шт.

S506190

BRACKET, hydraulic reservoir - (Used on units with Case 504BDT engine) - (Used on units with serial no. 909 and after)

1шт.

15

S86132

WASHER

flat - 1/2"

4шт.

16

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

17

S94118

PAD

rubber

2шт.
