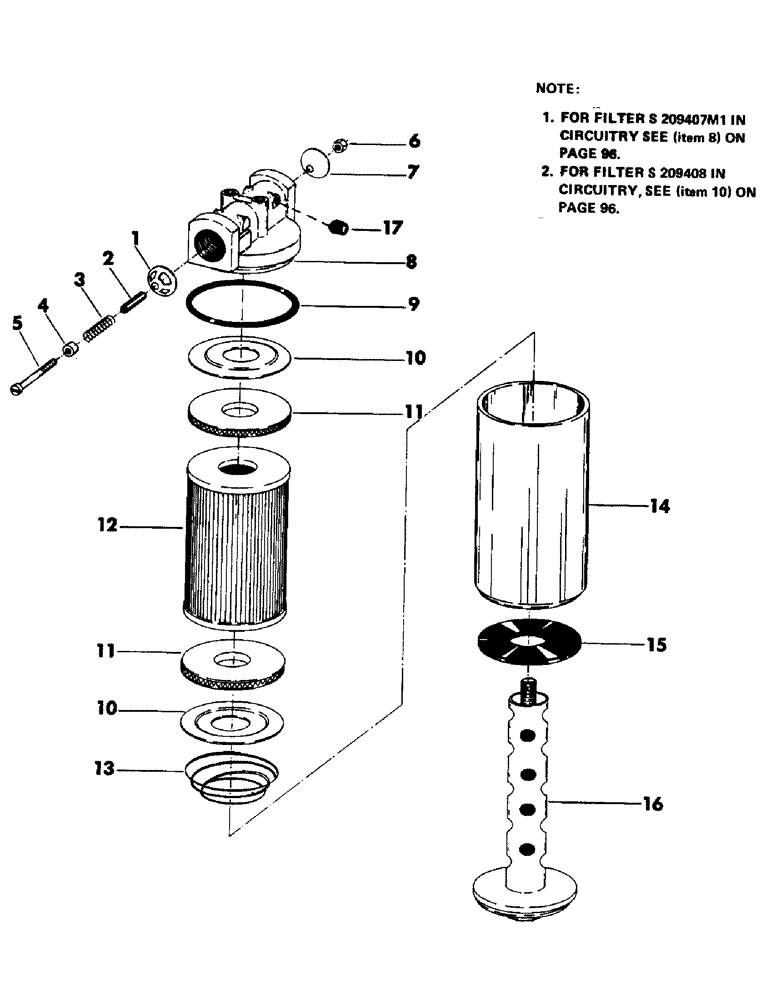

Запчасти Case 50 (117) - HYDRAULIC OIL FILTERS (35) - HYDRAULIC SYSTEMS

S209407M1

FILTER, hydraulic oil - complete - (Consists of items 5 thru 17)

1шт.

S209408

FILTER

hydraulic oil - complete - (Consists of items 1 thru 17)

1шт.

1

S63731

GUIDE

by-pass valve

1шт.

2

S63732

SPACER

by-pass valve

1шт.

3

S62431

SPRING

by-pass - 5 PSI - (Used with S209408 filter only)

1шт.

4

S63734

CAP

by-pass stem

1шт.

5

S63735

SCREW

1шт.

6

S63730

NUT

1шт.

7

S63729

VALVE

by-pass - (Quantity of 2 used with S209407M1 filter and quantity of 1 used with S209408 filter)

1шт.

8

S60100

HEAD

- (Includes item 17)

1шт.

9

S63727

SEAL

"O" RING

1шт.

10

T29790

WASHER

GASKET

2шт.

12

S89348

FILTER, ENGINE OIL

ELEMENT, filter - 100 mesh - (Used with S209407M1 filter only) (See note)

1шт.

S62434

FILTER, ELEMENT

ELEMENT, filter - 20 micron - (Used with S209408 filter only)

1шт.

13

S63723

SPRING

conical

1шт.

14

S63722

HOUSING

filter

1шт.

15

S63721

GASKET

1шт.

16

S63720

POST

center - (Cast iron)

1шт.

17

S15163

PLUG, pipe - 3/8" NPT

1шт.
