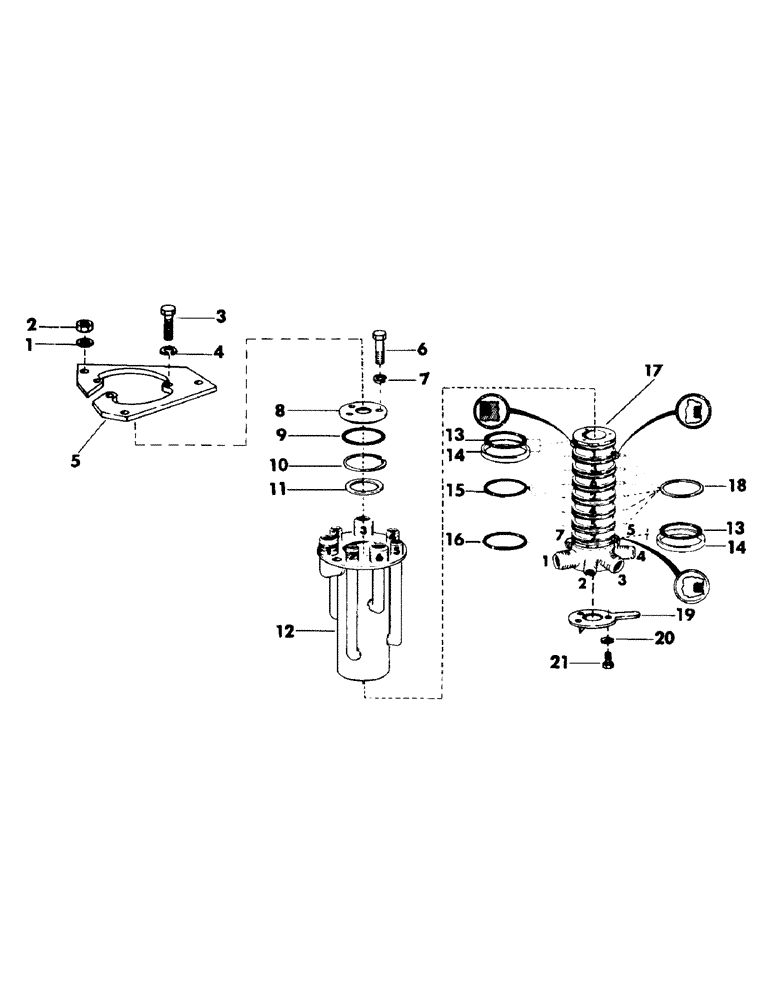

Запчасти Case 50 (112) - 7-PORT HYDRAULIC SWIVEL AND MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

S57973

LINK

SWIVEL, 7-port hydraulic - complete - (Consists of items 6 thru 18)

1шт.

1

S7385

INSTRUCTION

WASHER, flat - 3/8"

3шт.

2

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

3шт.

3

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

3шт.

4

S4397

WASHER

lock - 3/8"

3шт.

5

S204101

PLATE

upper swivel mounting

1шт.

6

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

3шт.

7

S4397

WASHER

lock - 3/8"

3шт.

8

S203821

CAP

bearing

1шт.

9

S76241

O-RING

"O" RING

1шт.

10

S15194

SNAP RING

RING, retaining

1шт.

11

S203832

WASHER

bearing

1шт.

12

S57975

ASSEMBLY

HOUSING, swivel

1шт.

13

S80704

RING

"O" RING

2шт.

14

S80705

SEAL

slipper

2шт.

15

S6332

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 3.984" ID X 4.250" OD

6шт.

16

S76240

O-RING

"O" RING

1шт.

17

S57974

ASSEMBLY

SHAFT, swivel

1шт.

18

S76928

WASHER

backup

18шт.

19

S209353

PLATE

lower swivel mounting

1шт.

20

S4396

WASHER, LOCK

- 5/16"

3шт.

21

S2376

CPSW - 5/16" NC x 1" gr 5

3шт.

22

S210212

SEAL KIT

KIT, seal - (Consists of items 9, 13 thru 16 and 18 of item 18)

1шт.
