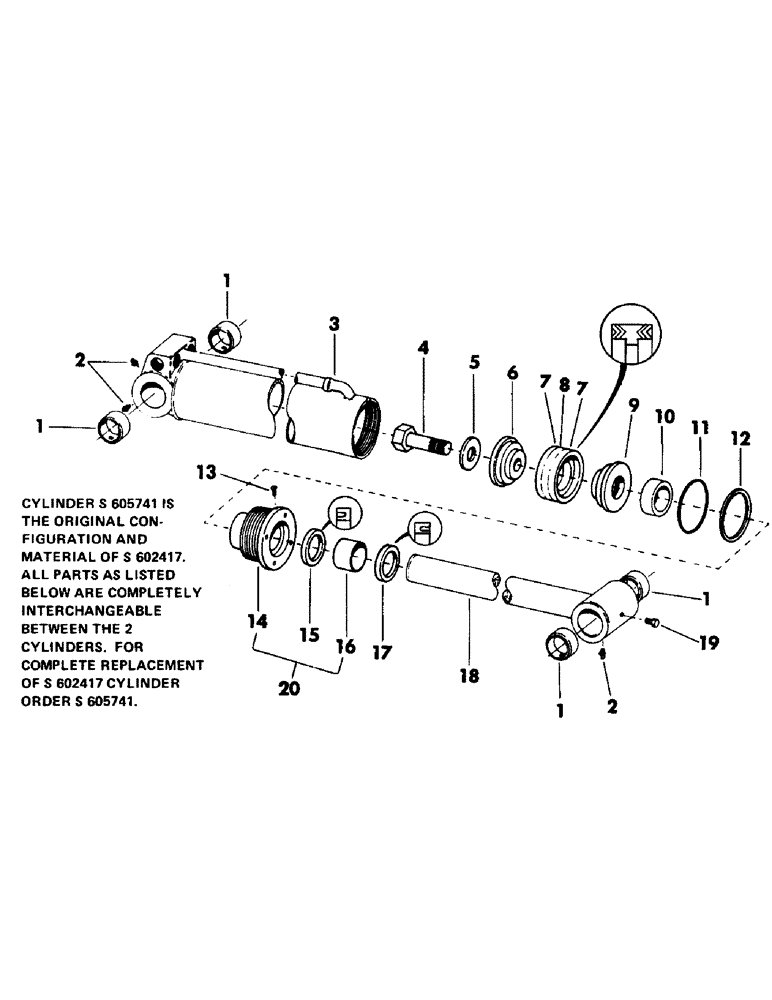

Запчасти Case 50 (110) - TOOL CYLINDER, (6.50" ID X 33.6" STROKE) (35) - HYDRAULIC SYSTEMS

S605741

CYLINDER, tool - complete - (Consists of items 1 thru 20) (Supersedes S602417)

1шт.

1

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

2

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

3

S602579

TUBE, cylinder - (Includes 2 of item 1)

1шт.

4

S92643

BOLT

1шт.

5

S98870

WASHER

1шт.

6

S224603

PISTON

split - (Bolt end) - (Supersedes S220019)

1шт.

7

S92642

PACKING

"V" PACKING

1шт.

8

S220020

PACKING

RING, center

1шт.

9

S224604

PISTON

split - (Rod end) - (Supersedes S220043)

1шт.

10

S92635

SPACER

1шт.

11

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

(Replaces "A28183" ) -259, 70 Duro, 6.234" ID x .139" Thk

1шт.

REF# 11, P/N SHOULD READ "A28183" WHICH SUBS TO P/N: 238-5259. TWW-CAM 11/2/98

1шт.

12

S92641

RING

WASHER, backup

1шт.

13

S7630

SCREW

self tapping - 1/8" NF x 1/4"

1шт.

14

NSS

NOT SOLD SEPARAT

GLAND, packing

1шт.

15

S220044

ROD

SEAL, rod

1шт.

16

S92651

BUSHING

rod

1шт.

17

S92653

WIPER

rod

1шт.

18

S505916

ROD, piston - (Includes 2 of item 1)

1шт.

19

S15161

PLUG, pipe - 1/8" NPT - (Hex head)

1шт.

20

S220042

GLAND

packing - (Consists of items 14 and 16)

1шт.
