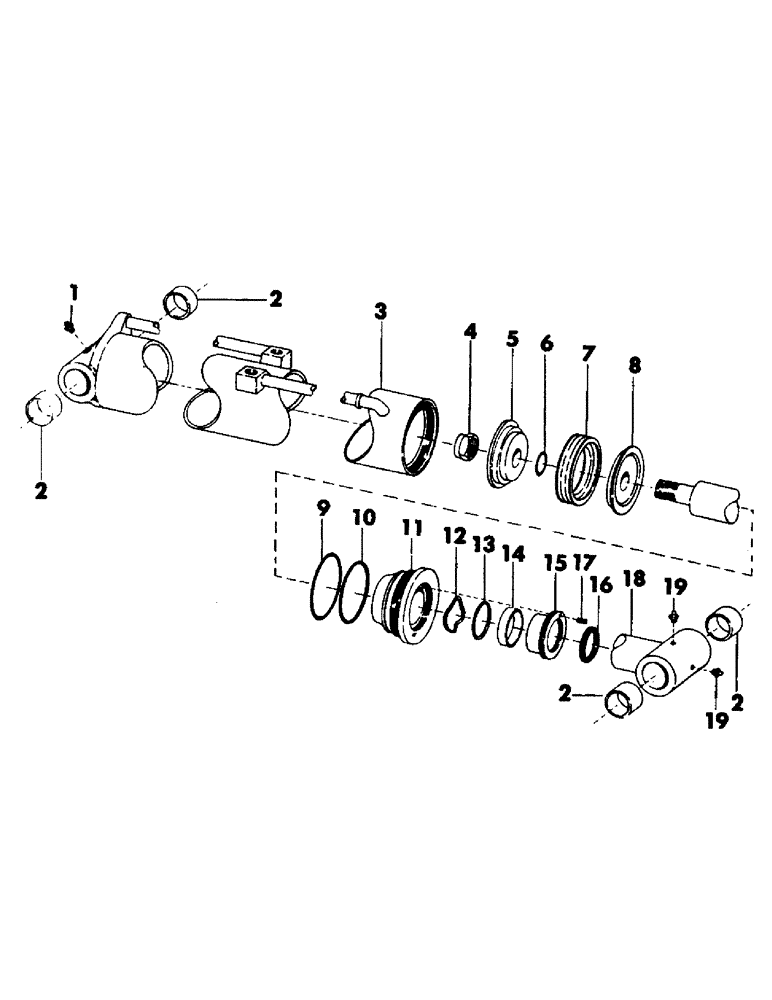

Запчасти Case 50 (109) - HOIST AND CROWD CYLINDERS, (7.00" ID X 45.50" STROKE) (35) - HYDRAULIC SYSTEMS

S58750M1

CYLINDER, hoist and crowd - complete - (Consists of items 1 thru 19)

2шт.

1

S492700

FITTING, grease - 1/8" NPT x 90 degrees - (Supersedes S12031)

1шт.

2

S202163

BUSHING

4шт.

3

S502602

TUBE ASSEMBLY - (Includes 2 of item 2)

1шт.

4

S83249

NUT

self locking - 2" NF

1шт.

5

S502609

PISTON

1шт.

6

S5922

O-RING,1.975" ID x 2.395" OD x 0.21"

"O" RING - 1.975" ID x 2.375" OD

1шт.

7

S212080

PACKING

"V" RING CUP ASSEMBLY

1шт.

8

S502611

PISTON

1шт.

9

S6032

O-RING

"O" RING - 6.475" ID x 7" OD

1шт.

10

S83254

RING

backup

1шт.

11

S502607

HEAD

cylinder

1шт.

12

S83252

WASHER

wave spring

1шт.

13

S83253

WASHER

flat

1шт.

14

S212081

PACKING

"V" RING CUP ASSEMBLY

1шт.

15

S212083

FLANGE

packing

1шт.

16

S43987

RING

SEAL, wiper

1шт.

17

S14308

SET SCREW

SCREW, set - 1/4" NC x 3/4" - cone point

1шт.

18

S502605

ROD, piston - (Includes 2 of item 2)

1шт.

19

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.
