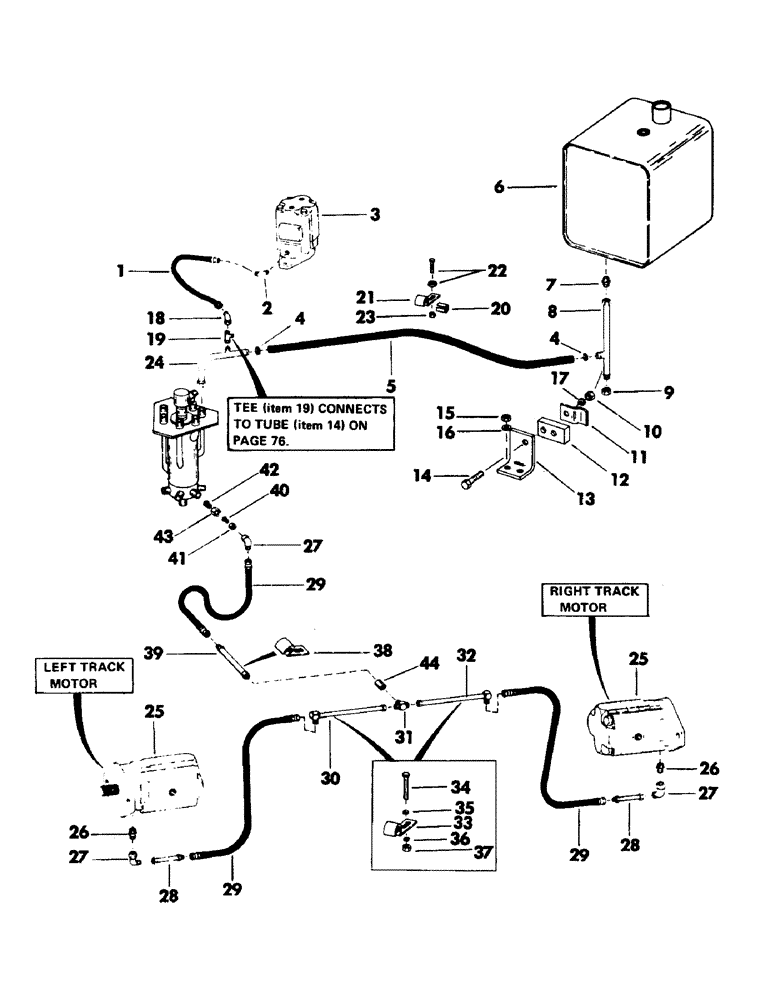

Запчасти Case 50 (107) - DRAIN HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

2

S5006

ELBOW

- 45 degrees flared - 9/16" male x 1/4" NPT male

1шт.

3

MOTOR, swing - (For breakdown, see Figure 115)

1шт.

4

S85477

CLAMP

hose

2шт.

5

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 65" long 1.00" ID Bulk, SAE 100R3

1шт.

6

RESERVOIR, hydraulic oil - (For breakdown, see Figure 119)

1шт.

7

S60838

ADAPTER

- (1" tube) - 1-5/16" - 12 male x 3/4" - 11 male - 37 degrees flared

1шт.

8

S505717

LINE, hydraulic - (Used on units with Detroit diesel engine)

1шт.

S505903

LINE, hydraulic - (Used on units with Case engine)

1шт.

9

S9419

CAP ASSY.

CAP - 1-5/16" - 12 female

1шт.

10

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

11

S45219

CLAMP

tube

1шт.

12

S79936

BLOCK, spacer

1шт.

13

S92081

BRACKET

ANGLE

1шт.

14

S2406

BOLT (MACHINE)

CPSW - 3/8" NC x 2-1/4" gr 5

1шт.

15

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

16

S7393

WASHER

flat - 1/2"

2шт.

17

S7385

INSTRUCTION

WASHER, flat - 3/8"

1шт.

18

S10356

ELBOW

90 degrees swivel - 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

1шт.

19

S60465

TEE

swivel - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male

1шт.

20

S86502

RING

compression

1шт.

21

S87573

CLAMP

1шт.

22

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

S86132

WASHER

2шт.

23

S17169

INSTRUCTION

NUT, self locking - 1/2"

1шт.

24

S220252

TUBE,1" OD x 5, 3.75" L

LINE, hydraulic

1шт.

25

MOTOR, track drive - (For breakdown, see Figure 115)

2шт.

26

S101310

ADAPTER

flared - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

2шт.

27

S10357

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

3шт.

28

S206892

LINE, hydraulic 0.5" OD x 5" L

2шт.

29

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

3шт.

30

S211644

LINE, hydraulic - to right hand track drive motor 0.5" OD x 11.5" L

1шт.

31

S63597

TEE

flared - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

1шт.

32

S211643

LINE, hydraulic - to left hand track drive motor 0.5" OD x 13.5" L

1шт.

33

S79585

CLAMP

2шт.

34

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

2шт.

35

S7387

WASHER

flat - 3/8"

2шт.

36

S4397

WASHER

lock - 3/8"

2шт.

37

S4222

NUT

- 3/8" NC

2шт.

38

S77324

CLAMP

1шт.

39

S211650

LINE, hydraulic 0.5" OD x 17.5" L

1шт.

40

S101833

ADAPTER

reducing - (3/4" to 1/2" reduction) - 3/4" - 16 male - 37 degrees flared

1шт.

41

S6277

NUT

tube - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

1шт.

42

S101832

ADAPTER

reducing - (1" to 3/4" reduction) - 1-1/16" - 12 male - 37 degrees flared

1шт.

43

S6279

NUT

tube - (1" tube) - 1-5/16" - 12 female - 37 degrees flared

1шт.

44

VALVE, check - (For breakdown, see Figure 122)

1шт.
