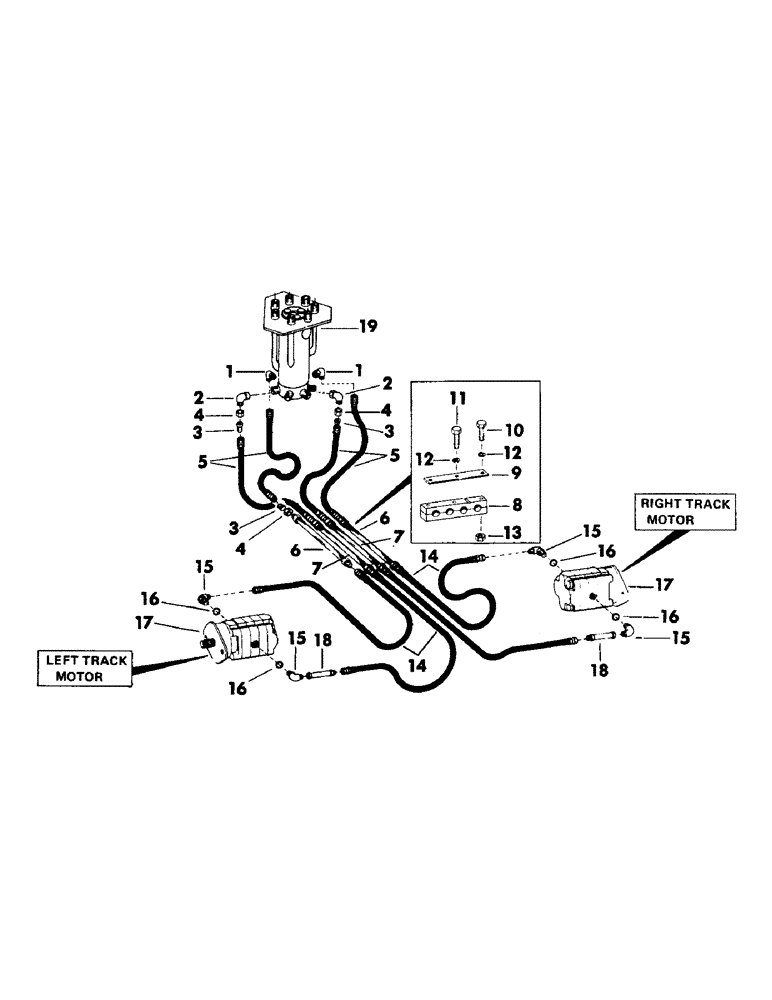

Запчасти Case 50 (106) - LOWER TRACK DRIVE MOTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S10359

ELBOW

90 degrees - (3/4" tube) - 1-1/16" - 12 female x 1-1/16" - 12 female - 37 degrees flared

2шт.

2

S10361

ELBOW

90 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

3

S101832

ADAPTER

reducing - 1" x 3/4" reduction

6шт.

4

S6279

NUT

tube - 1-1/16" - 12 female

6шт.

5

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/6" - 12 female pressed on couplings)

4шт.

6

S211617

LINE, hydraulic 1.25" OD x 18.65" L

2шт.

7

S211618

LINE, hydraulic 1.25" OD x 23" L

2шт.

8

S211615

BLOCK, tube

2шт.

9

S79724

BAR

2шт.

10

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" gr 5

5шт.

11

S2481

BOLT

CPSW - 1/2" NC x 5" gr 5

1шт.

12

S4399

WASHER

lock - 1/2"

6шт.

13

280431

NUT,1/2"-13, G5

6шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

15

S7952

ELBOW

90 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male - 37 degrees flared - (Includes "o" ring)

4шт.

16

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

4шт.

17

MOTOR, track drive - (For breakdown, see Figure 115)

2шт.

18

S211648

LINE, hydraulic 1" OD x 6" L

2шт.

19

SWIVEL, hydraulic - (For breakdown, see Figure 112)

1шт.
