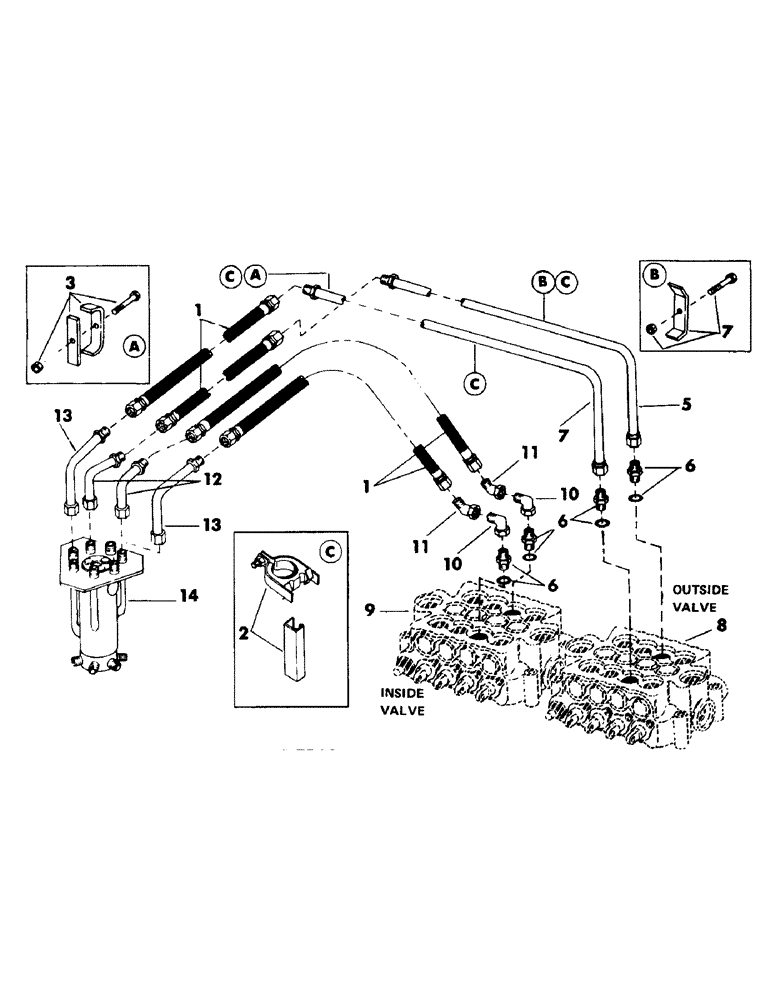

Запчасти Case 50 (105) - UPPER TRACK DRIVE MOTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

2

S93266

CLAMP

- (Used on units with serial no. 909 and after)

4шт.

S98413

SUPPORT

CHANNEL

2шт.

3

S46397

CLAMP

- (Used on units with serial no. 550 thru 908)

1шт.

S78360

BAR

1шт.

S2472

BOLT

CPSW - 1/2" NC x 2-3/4" gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

4

S43859

CLAMP - (Used on units with serial no. 550 thru 908)

1шт.

S2471

BOLT

CPSW - 1/2" NC x 2-1/2" gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

5

S502092

TUBE,1.25" OD x 27, 12.1" L

LINE, hydraulic

1шт.

6

S7972

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "o" ring)

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - .924" ID x 1.156" OD

4шт.

7

S502091

LINE, hydraulic 1.25" OD x 44.38, 13.6" L

1шт.

8

VALVE, 4-spool main control - (For breakdown, see Figure 127)

1шт.

9

VALVE, 4-spool main control - (For breakdown, see Figure 125)

1шт.

10

S10361

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 male

2шт.

11

S9494

ELBOW

45 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

2шт.

12

S208825

TUBE,1" OD x 3.83, 4.3" L

LINE, hydraulic

2шт.

13

S208826

TUBE,1" OD x 6.12, 4.35" L

LINE, hydraulic

2шт.

14

SWIVEL, seven port hydraulic - (For breakdown, see Figure 112)

1шт.
