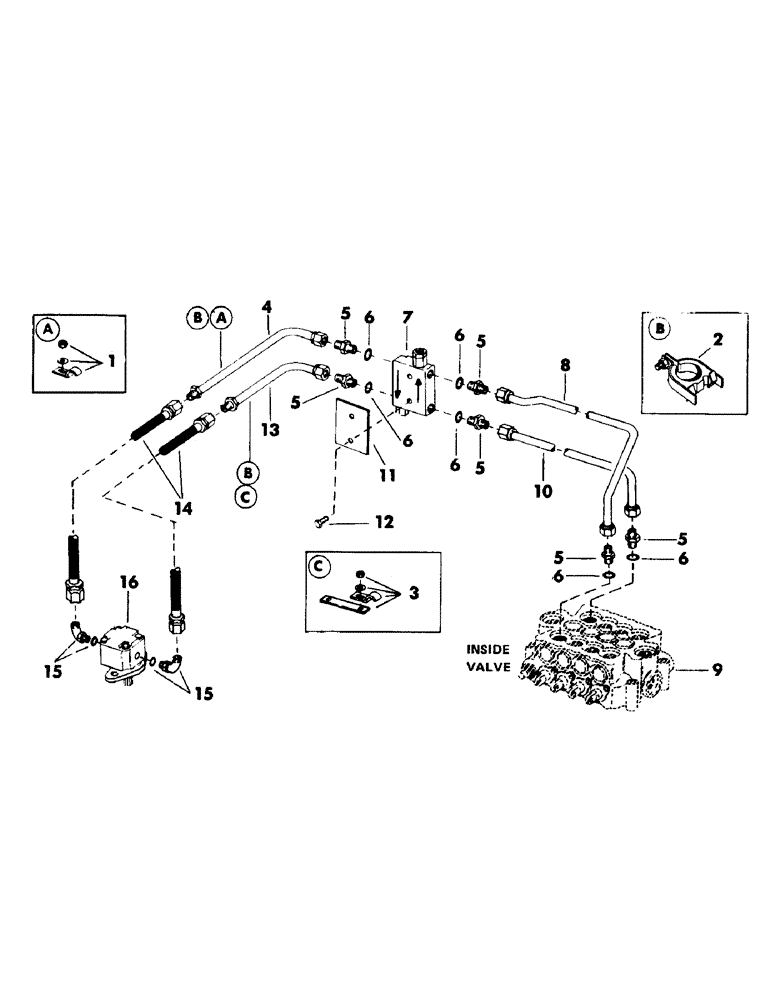

Запчасти Case 50 (104) - SWING MOTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S77460

CLAMP - (Used on units with serial no. 550 thru 908)

1шт.

S17167

INSTRUCTION

NUT, self locking - 7/8" NC

1шт.

S7835

WASHER, flat - 3/8"

1шт.

2

S93266

CLAMP

- (Used on units with serial no. 909 and after)

2шт.

3

S86481

SPACER, block - (Used on units with serial no. 505 thru 908)

1шт.

S77469

CLAMP

1шт.

S7393

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

4

S502076

TUBE,1.25" OD x 12.5, 5" L

LINE, hydraulic

1шт.

5

S7972

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" - 12 male x 1-5/16" - 12 male (Includes item 6)

6шт.

6

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

6шт.

7

VALVE, crossover relief - (For breakdown, see Figure 120)

1шт.

8

S502074

LINE,1.25" OD

hydraulic

1шт.

9

VALVE, 4-spool main control - (For breakdown, see Figure 125)

1шт.

10

S502075

TUBE,1.25" OD x 17.43, 5.8" L

LINE, hydraulic

1шт.

11

S82529

NAMEPLATE, relief valve

1шт.

12

S82719

CPSW, self tapping - 3/8" NC x 7/8"

2шт.

13

S502077

TUBE,1.25" OD x 14, 5" L

LINE, hydraulic

1шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

15

S7952

ELBOW

90 degrees adjustable - 1-5/16" - 12 male x 1-5/8" - 12 male

2шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

2шт.

16

MOTOR, swing - (For breakdown, see Figure 115)

1шт.
