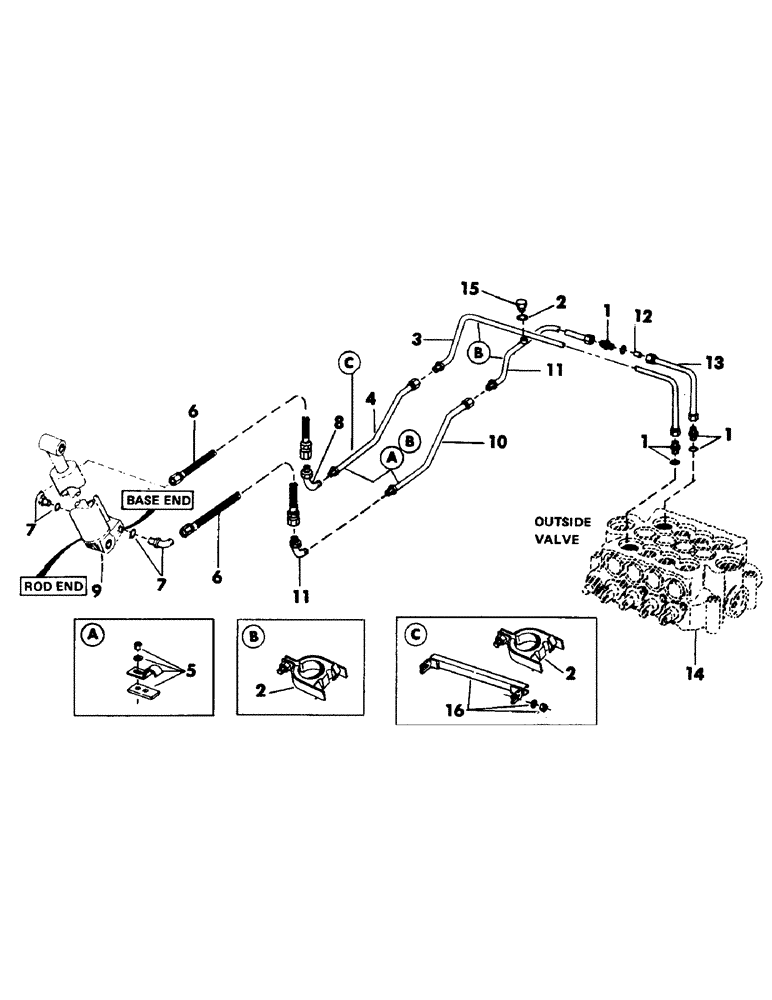

Запчасти Case 50 (103) - HOIST CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S7972

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" - 12 male x 1-5/16" - 12 male

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

5шт.

2

S93266

CLAMP

- (Used on units with serial no. 909 and after)

1шт.

3

S502083

LINE

hydraulic

1шт.

4

S502714

LINE, hydraulic 1.25" OD

1шт.

5

S74460

CLAMP - (Used on units with serial no. 550 thru 908)

2шт.

6

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

7

S7943

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

8

S10361

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

2шт.

9

CYLINDER, hoist - (For breakdown, see Figure 109)

1шт.

10

S502715

TUBE,1.25" OD

LINE, hydraulic

1шт.

11

S506138

TUBE ASSY.,0.625" OD x 11, 3.25" L

LINE, hydraulic - (When ordering S506138 for units without Fast Hoist, the S9419 cap (item 15) would have to be ordered in addition)

1шт.

12

S79252

REGULATOR

oil

1шт.

13

S502084

TUBE,1.25" OD

LINE, hydraulic

1шт.

14

VALVE, 4-spool - (For breakdown, see Figure 127)

1шт.

15

S9419

CAP ASSY.

CAP - (1" tube) - 1-5/16" - 12 female - 37 degrees flared (See description of item 11)

1шт.

16

S226021

BRACKET, clamp mounting - (Used on units with serial no. 909 and after)

1шт.

S86132

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT - 1/2" NC

2шт.
