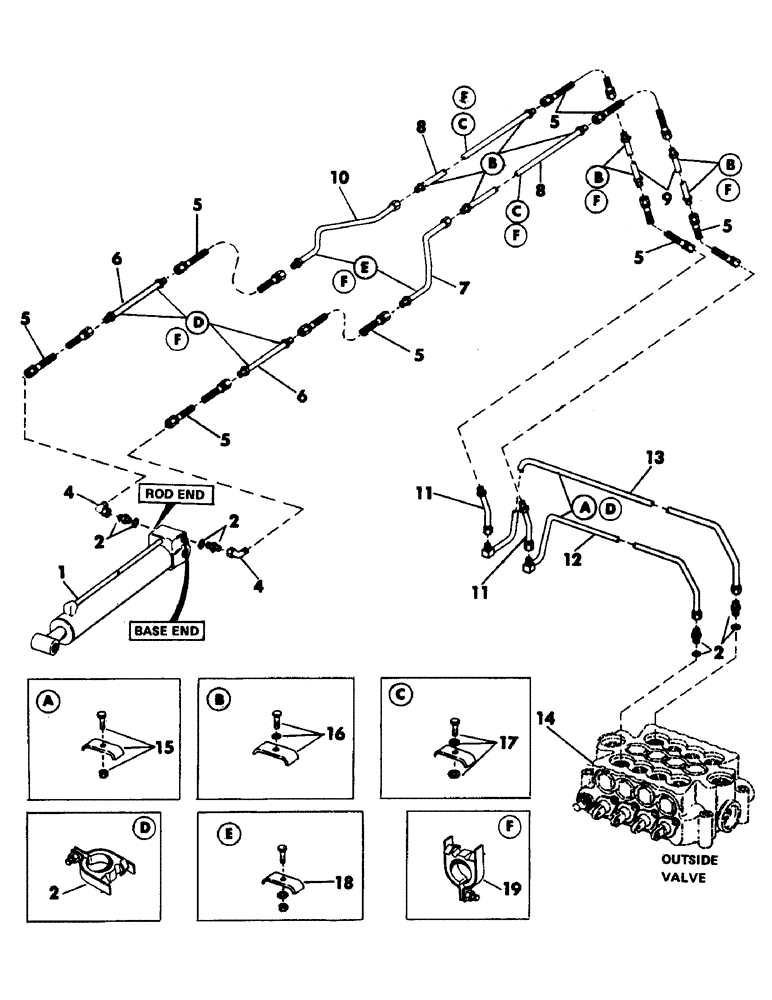

Запчасти Case 50 (101) - TOOL CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

CYLINDER, tool - (For breakdown, see Figure 110)

1шт.

2

S93266

CLAMP

- (Used on units with serial no. 909 and after)

1шт.

3

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "o" ring)

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

4

S10361

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

8шт.

6

S211835

TUBE ASSY.,1.25" OD x 41.3" L

LINE, hydraulic - (With 10' 5" dipperstick)

1шт.

S212149

LINE, hydraulic - (With 12' dipperstick)

1шт.

7

S211833

TUBE ASSY.,1.25" OD x 35.6, 7.7" L

LINE, hydraulic - (Used on units with serial no. 550 thru 983 and 988)

1шт.

S226665

LINE

hydraulic - (Used on units with serial no. 984 thru 987 and 989 and after)

1шт.

8

S211832

LINE

hydraulic - (Used on units with serial no. 550 thru 983 and 988)

2шт.

S226663

LINE

hydraulic - (Used on units with serial no. 984 and 989 and after)

2шт.

9

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

2шт.

10

S211834

TUBE ASSY.,35.6, 7.7" L

LINE, hydraulic - (Used on units with serial no. 550 thru 983 and 988)

1шт.

S226664

LINE

hydraulic - (Used on units with serial no. 984 thru 987 and 989 and after)

1шт.

11

S211849

LINE,1.25" OD

hydraulic

2шт.

12

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

13

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

14

VALVE, 4-spool main control - (For breakdown, see Figure 127)

1шт.

15

S46397

CLAMP

- (Used on units with serial no. 550 thru 983 and 987)

1шт.

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

16

S46397

CLAMP

- (Used on units with serial no. 550 thru 983 and 987)

1шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" gr 5

1шт.

S4399

WASHER

lock -1/2"

1шт.

17

S79583

CLAMP

- (Used on units with serial no. 550 thru 983 and 987)

1шт.

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

S7395

WASHER

flat - 1/2"

1шт.

18

S46397

CLAMP

- (Used on units with serial no. 550 thru 983 and 987)

1шт.

S2472

BOLT

CPSW - 1/2" NC x 2-3/4" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

280431

NUT,1/2"-13, G5

1шт.

19

S93266

CLAMP

- (Used on units with serial no. 983 thru 987 and 989 and after)

1шт.
