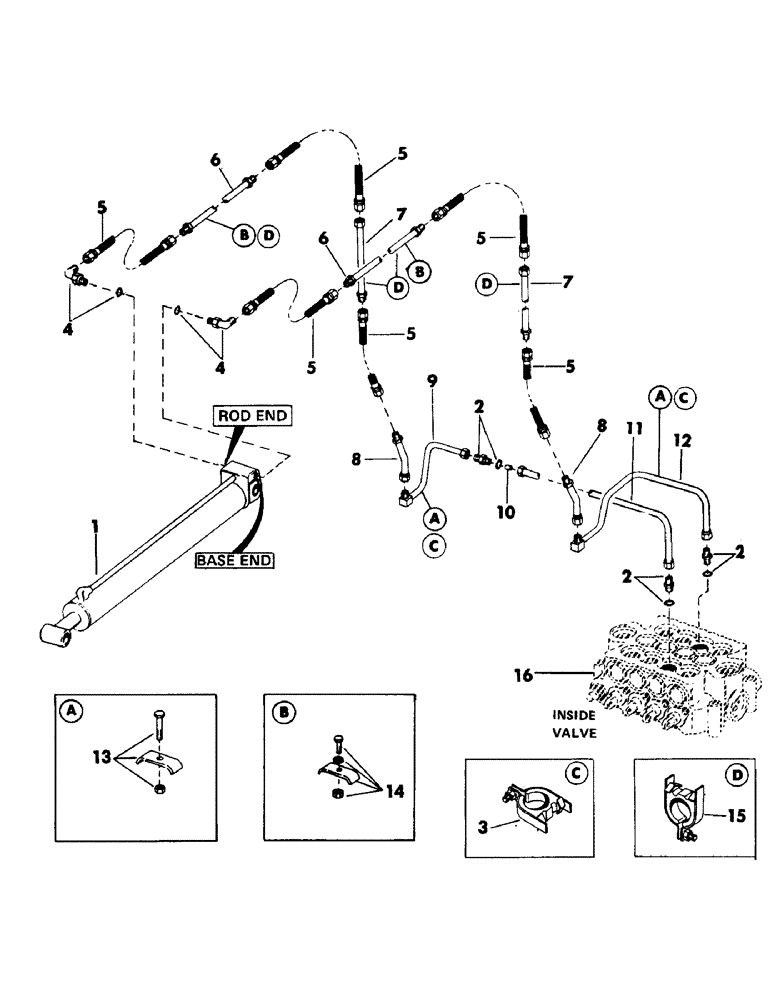

Запчасти Case 50 (099) - CROWD CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

CYLINDER, crowd - (For breakdown, see Figure 109)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "o" ring)

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

3шт.

3

S93266

CLAMP

- (Used on units with serial no. 909 and after)

1шт.

4

S7943

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 male (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

6шт.

6

S216025

LINE, hydraulic 1.25" OD x 70.3, 5.9" L

2шт.

7

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

2шт.

8

S211849

LINE,1.25" OD

hydraulic

2шт.

9

S502109

LINE,1.25" OD

hydraulic

1шт.

10

S79252

REGULATOR

oil

1шт.

11

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

LINE, hydraulic

1шт.

12

S502079

TURBINE,1.25" OD

LINE, hydraulic

1шт.

13

S46397

CLAMP

- (Used on units with serial no. 550 thru 908)

1шт.

S2473

BOLT

CPSW - 1/2" NC x 3" gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

14

S79583

CLAMP

- (Used on units with serial no. 550 thru 983 and 988)

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

1шт.

S7395

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

15

S93266

CLAMP

- (Used on units with serial no. 984 thru 987 and 989 and after)

1шт.

16

VALVE, 4-spool main control - (For breakdown, see Figure 125)

1шт.
