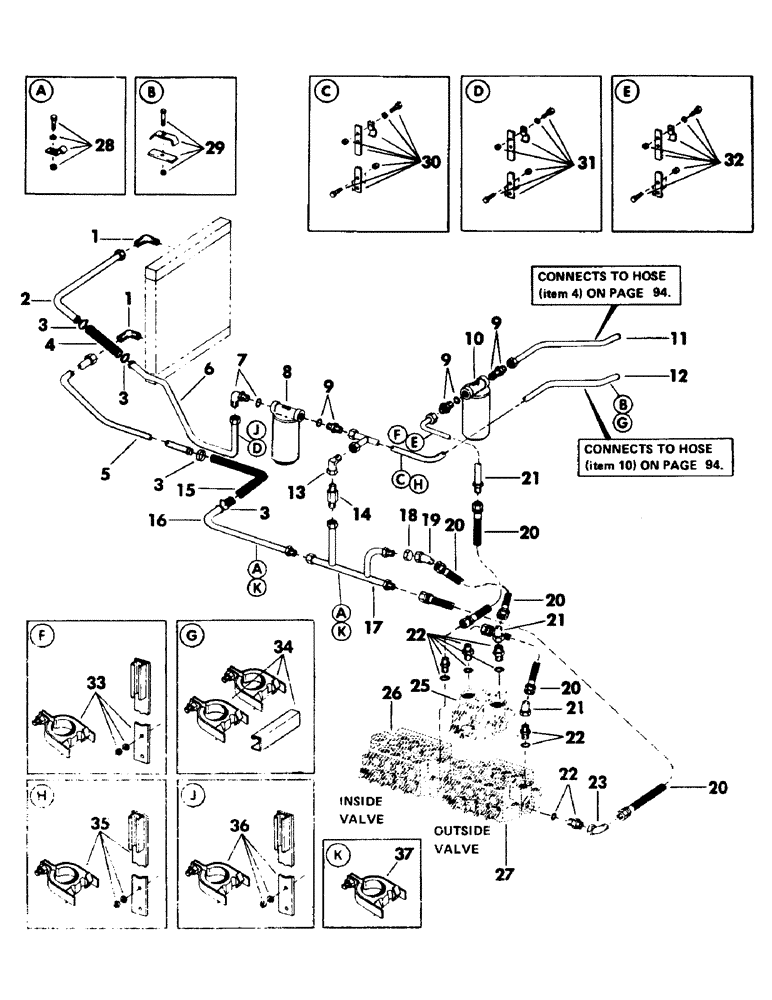

Запчасти Case 50 (096) - MAIN VALVE TO RESERVOIR AND COOLER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S7727

ELBOW

90 degrees - (1" tube) - 1" NPT male x 1-5/16" - 12 male - 37 degrees flared

2шт.

2

S219943

LINE, hydraulic 1.25" OD x 6, 16.3" L

1шт.

3

S88486

CLAMP

hose

4шт.

4

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 72" long - (Used on units with Case engine) - (22")

1шт.

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 24" long - (Used on units with Detroit diesel engine)

1шт.

5

S219942

TUBE,1.25" OD x 20, 5" L

LINE, hydraulic

1шт.

6

S219803

LINE, hydraulic 1.25" OD

1шт.

7

S7945

ELBOW

90 degrees adjustable - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared - (Includes "o" ring)

1шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

1шт.

8

S209407M1

FILTER, hydraulic oil - (For breakdown, see Figure 117)

1шт.

9

S7976

CONNECTOR, ELEC

CONNECTOR - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared - (Includes "o" ring)

3шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

3шт.

10

S209408

FILTER

hydraulic oil - (For breakdown, see Figure 117)

1шт.

11

S505851

LINE, hydraulic 1.25" OD

1шт.

12

S506419

LINE, hydraulic - (Supersedes S505852)

1шт.

13

S10362

ELBOW

90 degrees swivel - 1-5/8" - 12 male x 1-5/8" - 12 female - 37 degrees flared

1шт.

14

S209396

VALVE

check

1шт.

15

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 26" long

1шт.

16

S208827

LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

17

S219883

TUBE,20, 3.38" L

LINE, hydraulic

1шт.

18

S9419

CAP ASSY.

CAP - 1-5/16" - 12 female - (Used on units without leveler)

1шт.

19

S9494

ELBOW

45 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

3шт.

20

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-51/6" - 12 pressed on female couplings)

4шт.

21

S220641

LINE, hydraulic

1шт.

22

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" male - 37 degrees flared - (Includes "o" ring)

5шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

5шт.

23

S10361

ELBOW

90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

24

S601960

COOLER, hydraulic oil

1шт.

25

VALVE, 1-spool main control - (For breakdown, see Figure 123)

1шт.

26

VALVE, 4-spool main control - (For breakdown, see Figure 125)

1шт.

27

VALVE, 4-spool main control - (For breakdown, see Figure 127)

1шт.

28

S77469

CLAMP

tube - (Used on units with serial no. 550 thru 908)

3шт.

S7393

WASHER

flat - 1/2"

3шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.

29

S88023

CLAMP, tube - (Used on units with serial no. 550 thru 908)

2шт.

S78360

BAR, spacer

2шт.

S2472

BOLT

CPSW - 1/2" NC x 2-3/4" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

30

S79583

CLAMP

tube - (Used on units with serial no. 550 thru 908)

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

1шт.

S7393

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

S93270

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

31

S79583

CLAMP

tube - (Used on units with serial no. 550 thru 908)

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

1шт.

S7393

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

S93271

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

32

S77469

CLAMP

tube - (Used on units with serial no. 550 thru 908)

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

1шт.

S7393

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

S92524

BRACKET

1шт.

S2468

BOLT

CPSW - 1/2" x 1-3/4" gr 5

2шт.

S7393

WASHER

flat - 1/2"

2шт.

33

S93266

CLAMP

tube - (Used on units with serial no. 909 and after)

1шт.

S225957

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2"

2шт.

34

S93266

CLAMP

tube - (Used on units with serial no. 909 and after)

2шт.

S98324

CLAMP

tube

2шт.

S98267

BRACKET

2шт.

S226454

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

35

S98324

CLAMP

tube - (Used on units with serial number 909 and after)

1шт.

S226010

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT - 1/2" NC

2шт.

36

S93266

CLAMP

tube - (Used on units with serial no. 909 and after)

1шт.

S226000

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

37

S93266

CLAMP

tube - (Used on units with serial no. 909 and after)

3шт.
